With GST

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Select MODE 1 with GST.
  3. Check the mass air flow sensor signal with MODE 1.
  4. Check for linear mass air flow sensor signal value rise in response to increases to about 4, 000 RPM in engine speed.
  5. If NG, go to "DIAGNOSTIC PROCEDURE ".

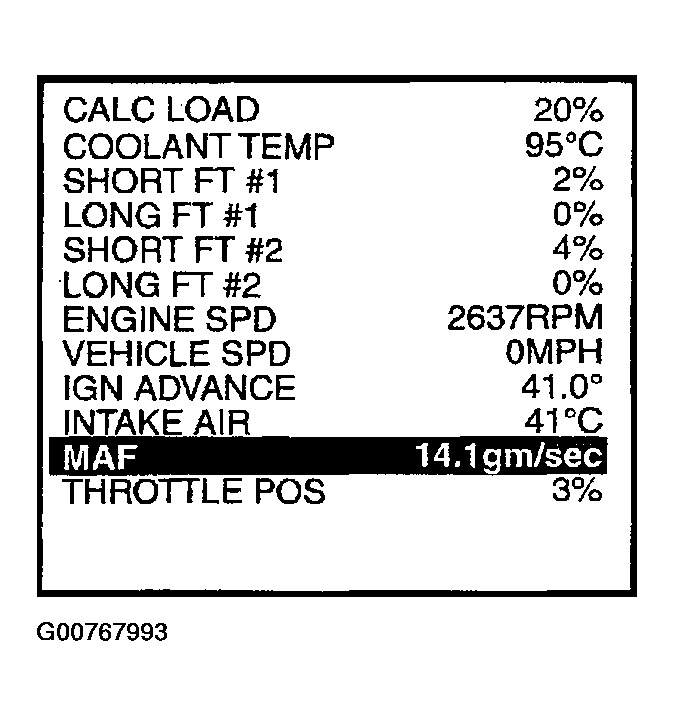

    Fig 1: GST Display - Malfunction B
    G00767993Courtesy of NISSAN MOTOR CO., U.S.A.
