Component Description

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

The EVAP control system pressure sensor detects pressure in the purge line. The sensor output voltage to the ECM increases as pressure increases.

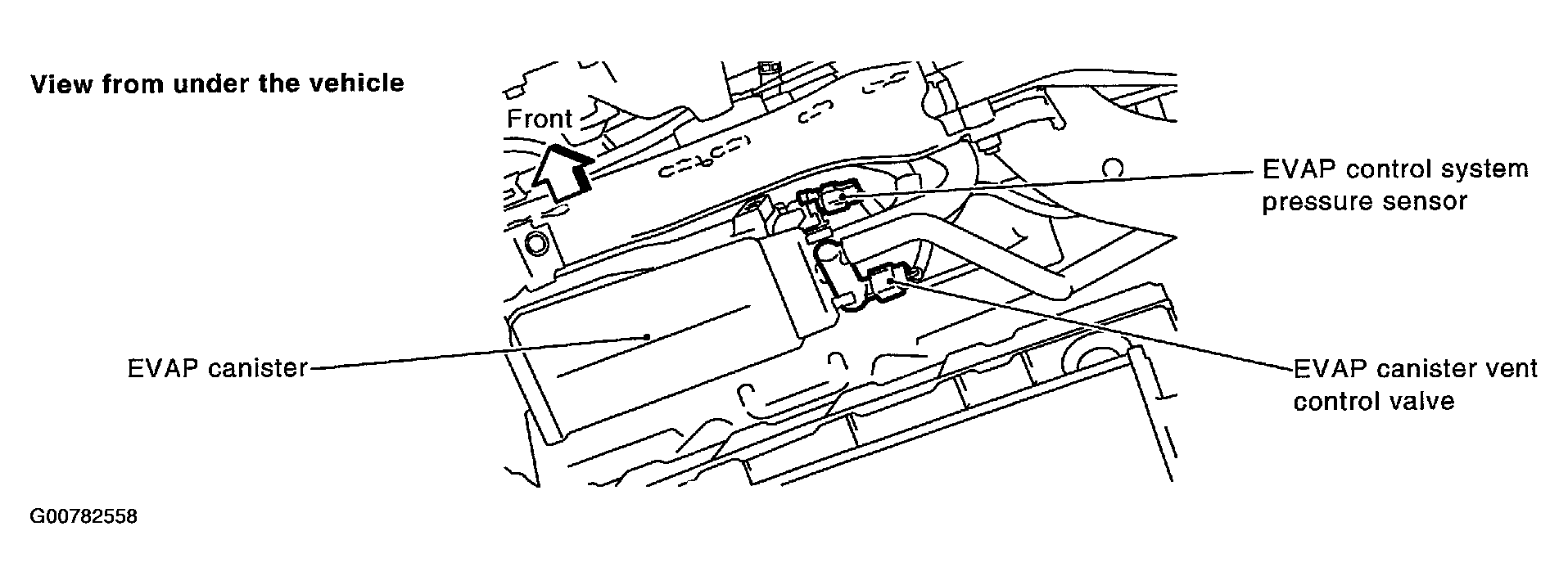

Fig 1: Locating EVAP Control System Pressure Sensor (P0453)

Courtesy of NISSAN MOTOR CO., U.S.A.

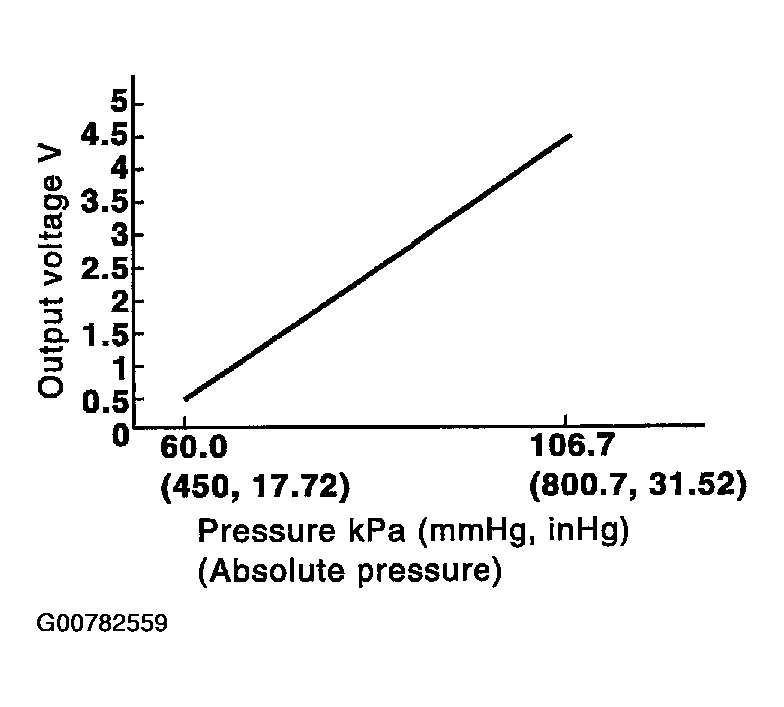

Fig 2: EVAP Control System Pressure Sensor Voltage-Pressure Graph (P0453)

Courtesy of NISSAN MOTOR CO., U.S.A.
