With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Start engine and warm it up to normal operating temperature.
  2. Turn ignition switch OFF and wait at least 10 seconds.
  3. Turn ignition switch ON.
  4. Select "DATA MONITOR" mode with CONSULT-II.

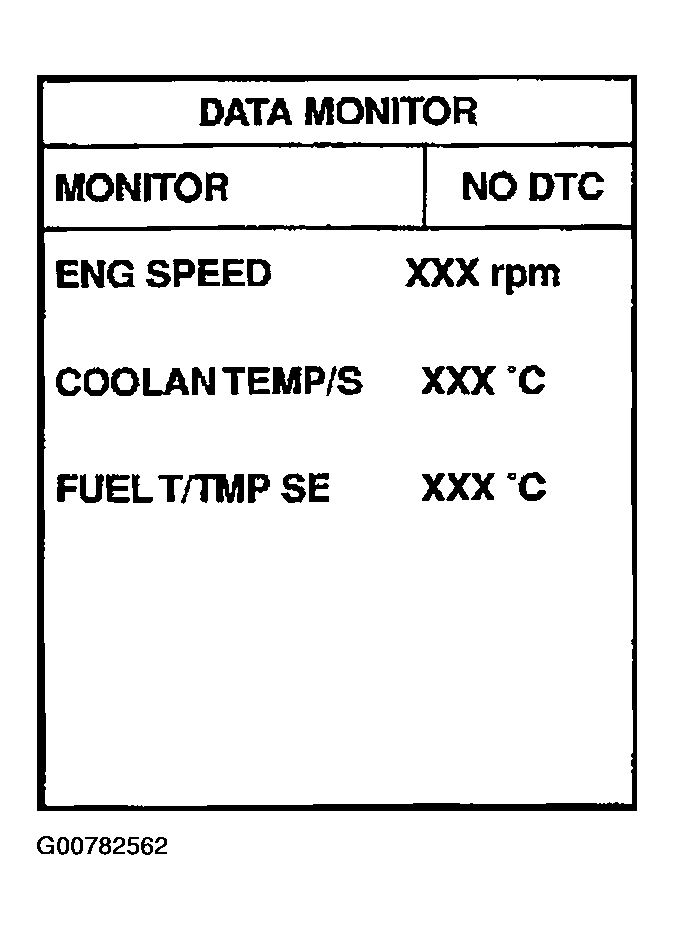

    Fig 1: DTC Confirmation Procedure With CONSULT-II (P0453)
    G00782562Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Make sure that "FUEL T/TEMP SE" is more than 0°C (32°F).
  6. Start engine and wait at least 20 seconds.
  7. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "
