With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Open engine hood.
  2. Start engine and warm it up to normal operating temperature.
  3. Turn ignition switch OFF and wait at least 10 seconds.
  4. Turn ignition switch ON again and select "DATA MONITOR" mode with CONSULT-II.
  5. Start engine and run it for at least 1 minute at idle speed.
  6. If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE ".

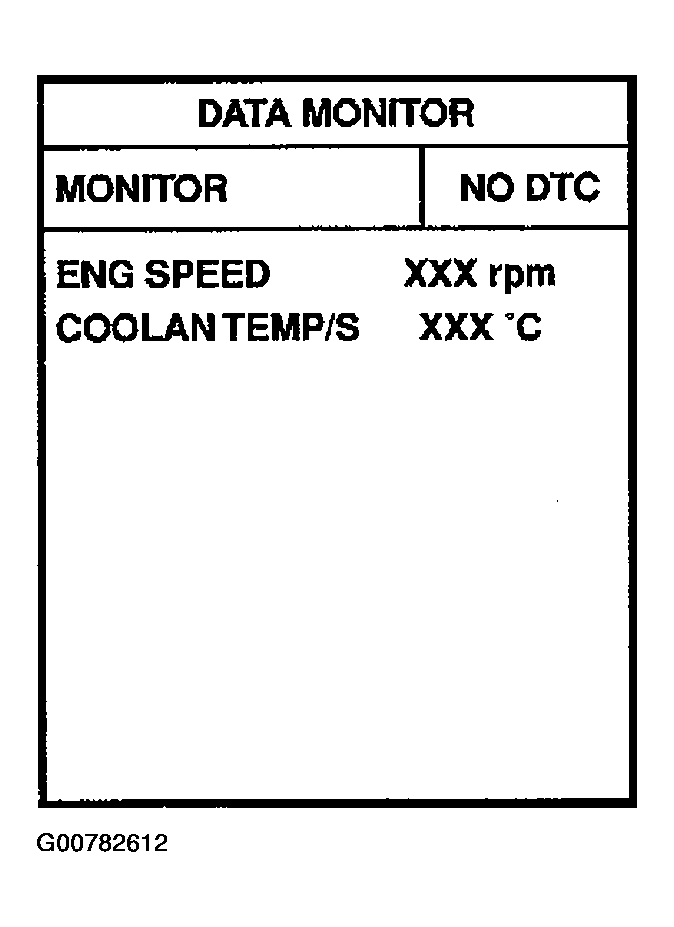

    Fig 1: DTC Confirmation Procedure With CONSULT-II (P0506)
    G00782612Courtesy of NISSAN MOTOR CO., U.S.A.
