DTC Confirmation Procedure

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC Confirmation Procedure has been previously conducted, always turn ignition switch OFF and wait at least 10 seconds before conducting the next test.

TESTING CONDITION:

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Turn ignition switch OFF, wait at least 10 seconds.
Turn ignition switch ON.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

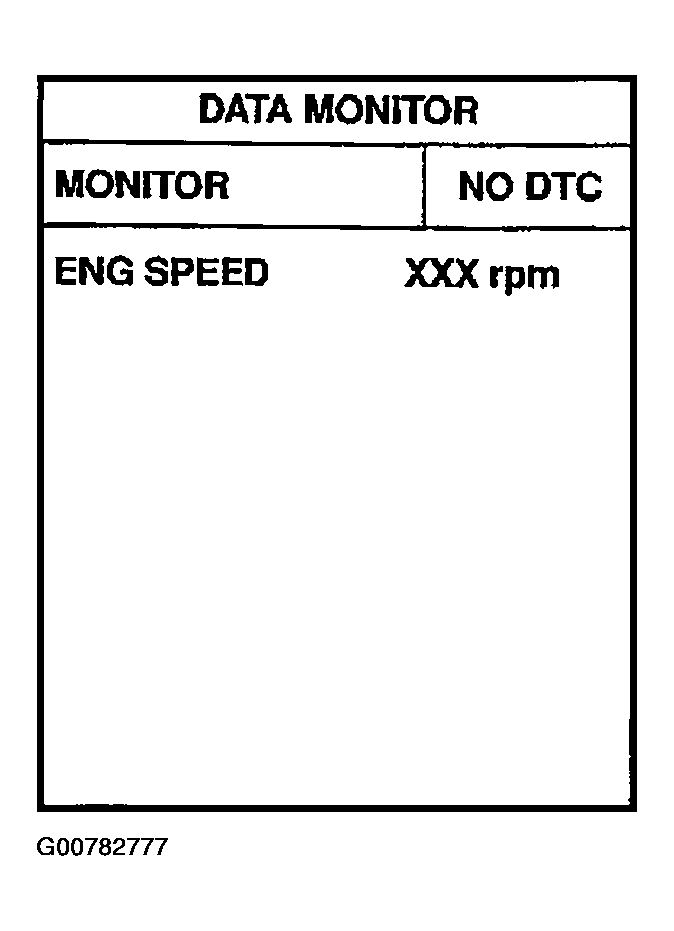

Fig 1: Displaying "DATA MONITOR" Mode With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "WITH CONSULT-II" above.
