Testing Condition:

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Before performing the following procedure, confirm that battery voltage is more than 10V at idle.

With CONSULT-II

Turn ignition switch ON.
Select "DATA MONITOR" mode with CONSULT-II.
Turn ignition switch OFF, wait at least 10 seconds.
Turn ignition switch ON.
Repeat steps 3 and 4 for 32 times.
If 1st trip DTC is detected, go to "DIAGNOSTIC PROCEDURE "

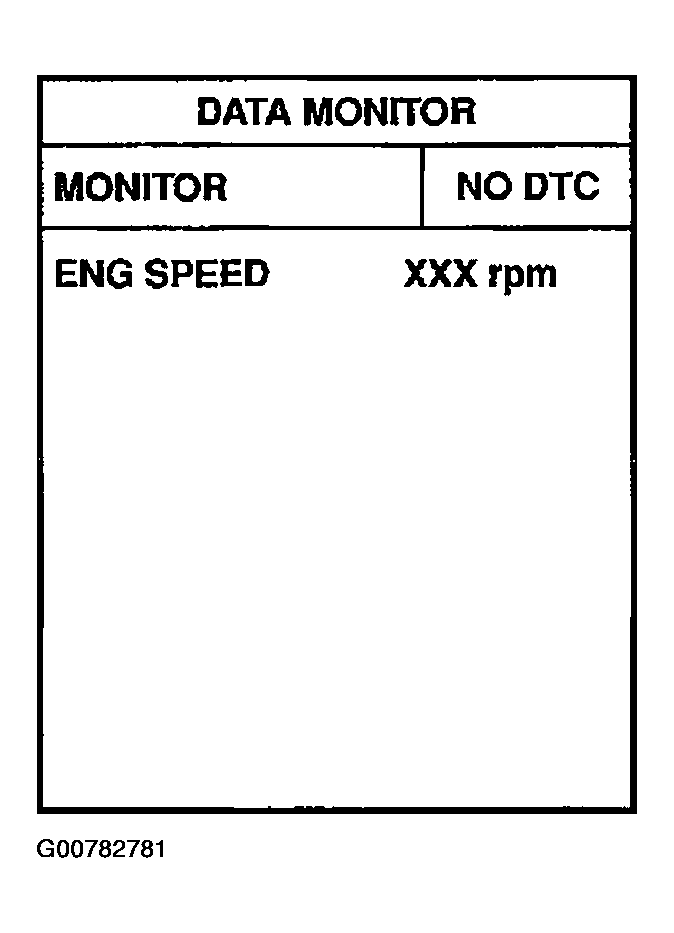

Fig 1: Displaying "DATA MONITOR" Mode With CONSULT-II
Courtesy of NISSAN MOTOR CO., U.S.A.

With GST

Follow the procedure "WITH CONSULT-II" above.
