Component Inspection: Condenser

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect condenser harness connector.
Check resistance between condenser terminals 1 and 2.

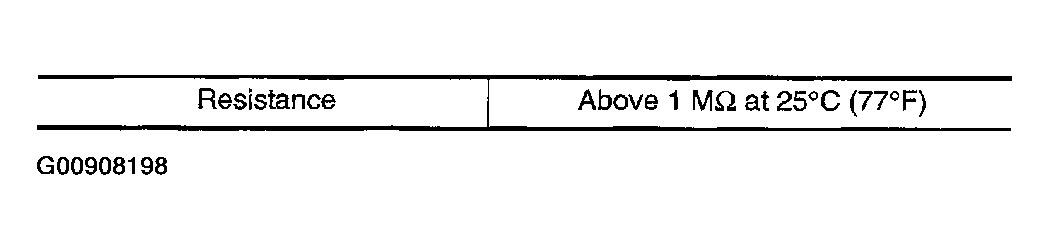

Fig 1: Resistance Specification Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

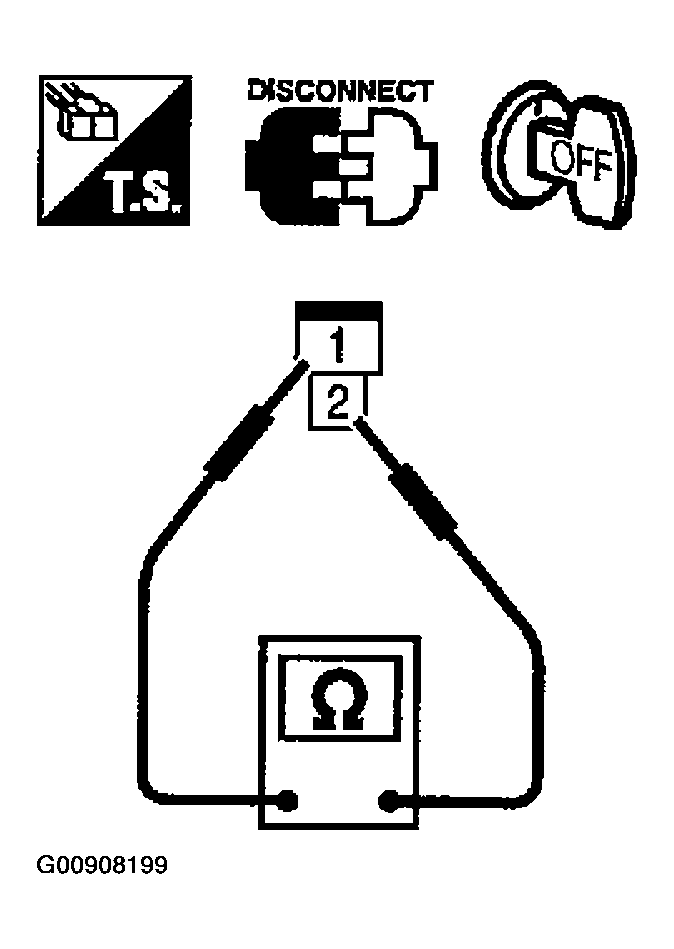

Fig 2: Checking Resistance Between Condenser Terminals 1 And 2
Courtesy of NISSAN MOTOR CO., U.S.A.
