DTC No. Index
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
If DTC U1000 or U1001 is displayed with other DTC, first perform the trouble diagnosis for DTC U1000, U1001. Refer to
"DTC U1000, U1001 CAN COMMUNICATION LINE ".

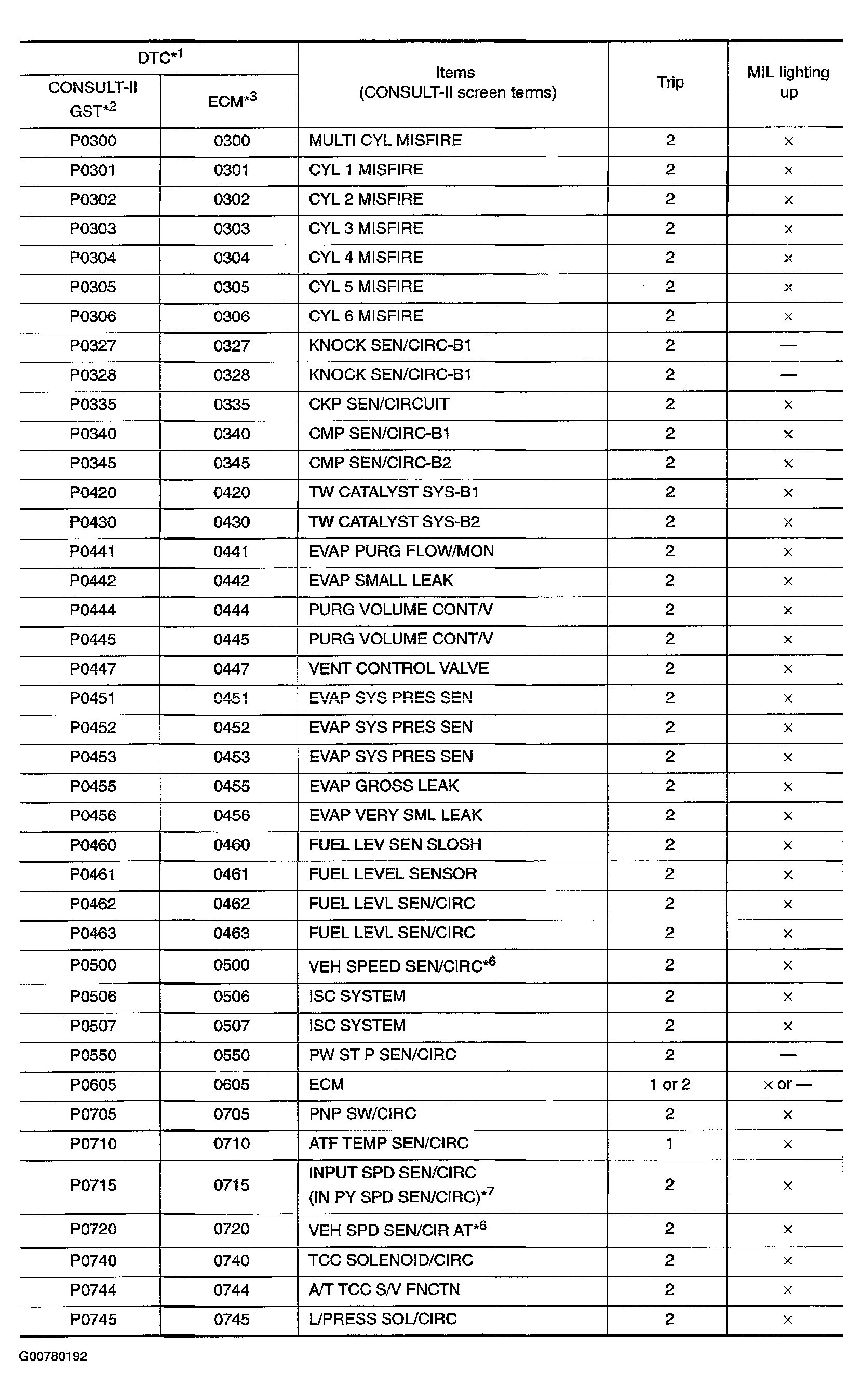

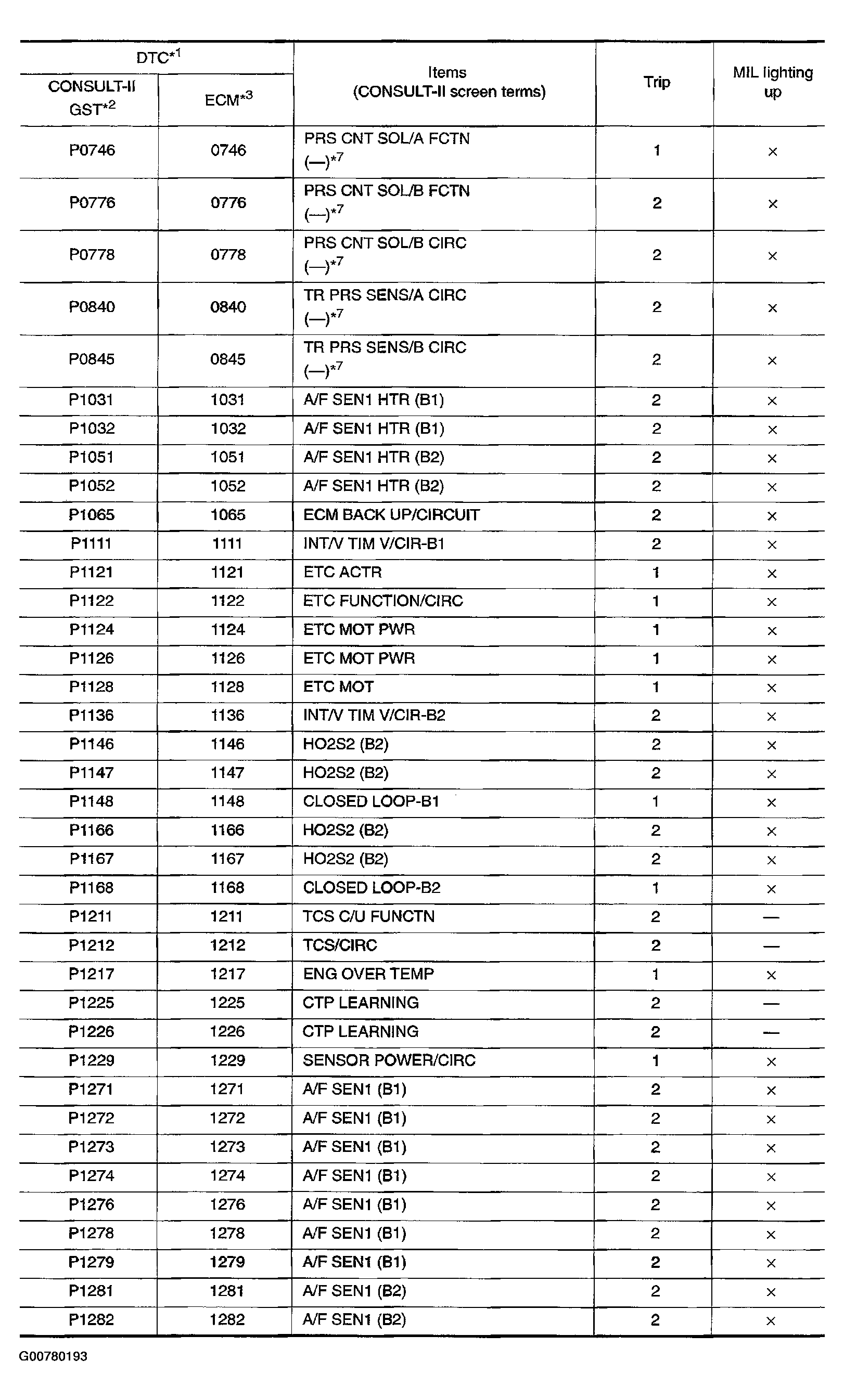

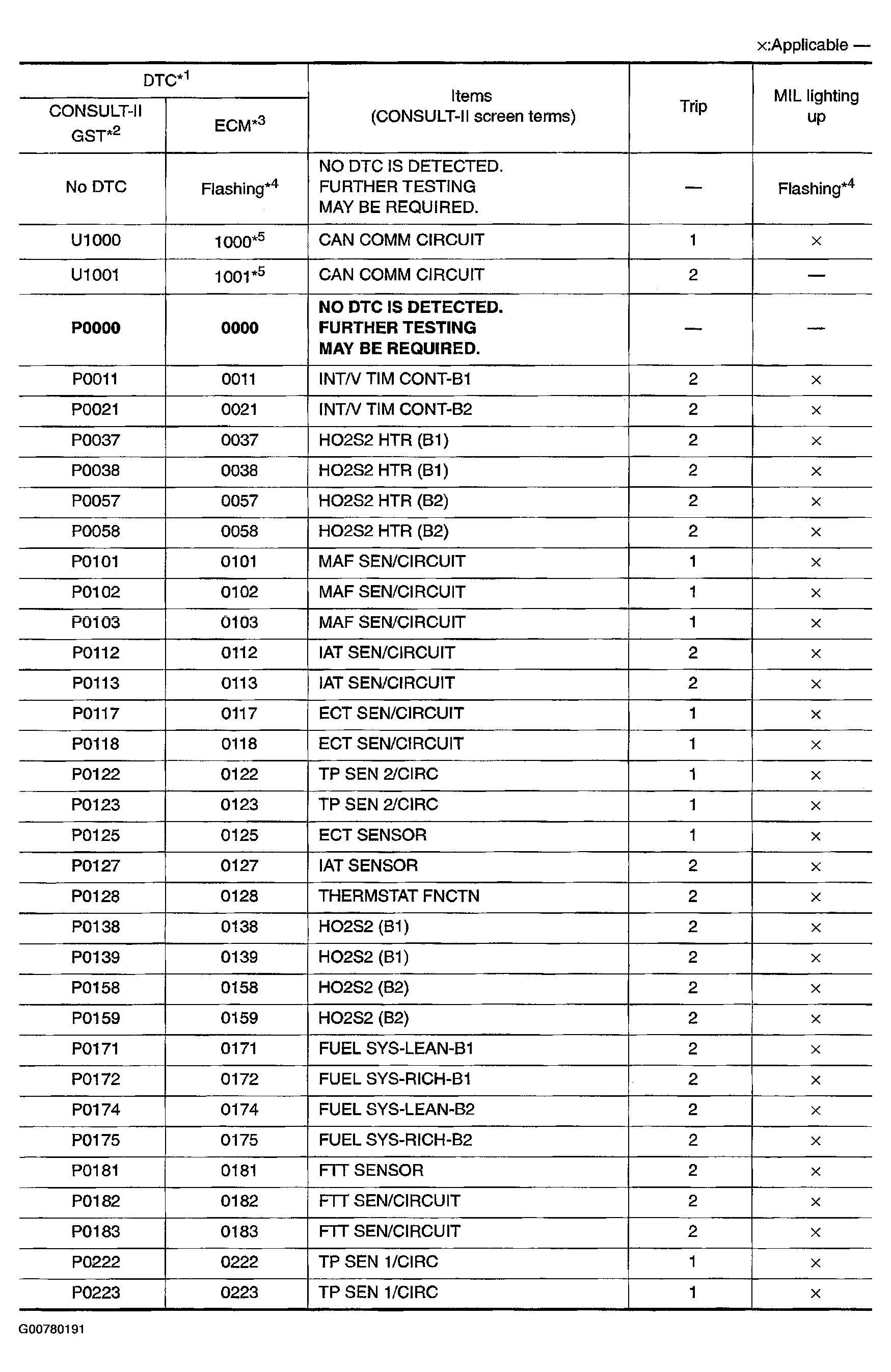

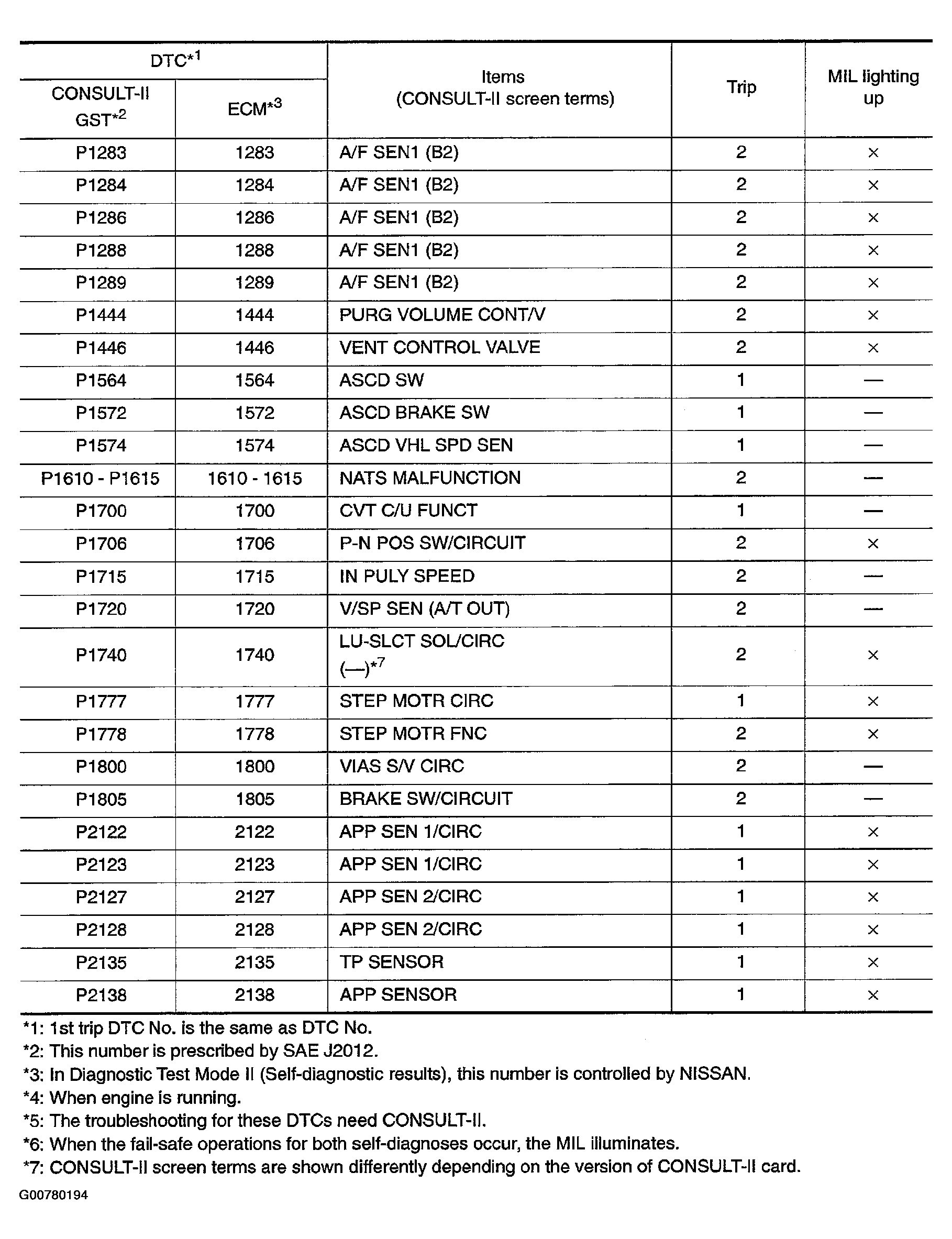

DTC INDEX
| DTC | Description |
|---|---|
| DTC U1000, U1001 | CAN COMMUNICATION LINE |
| DTC P0011, P0021 | IVT CONTROL |
| DTC P0037, P0038, P0057, P0058 | HO2S2 HEATER |
| DTC P0101 | MAF SENSOR |
| DTC P0102, P0103 | MAF SENSOR |
| DTC P0112, P0113 | IAT SENSOR |
| DTC P0117, P0118 | ECT SENSOR |
| DTC P0122, P0123 | TP SENSOR |
| DTC P0125 | ECT SENSOR |
| DTC P0127 | IAT SENSOR |
| DTC P0128 | THERMOSTAT FUNCTION |
| DTC P0138, P0158 | HO2S2 |
| DTC P0139, P0159 | HO2S2 |
| DTC P0171, P0174 | FUEL INJECTION SYSTEM FUNCTION |
| DTC P0172, P0175 | FUEL INJECTION SYSTEM FUNCTION |
| DTC P0181 | FTT SENSOR |
| DTC P0182, P0183 | FTT SENSOR |
| DTC P0222, P0223 | TP SENSOR |
| DTC P0300, P0301, P0302, P0303, P0304, P0305, P0306 | MULTIPLE CYLINDER MISFIRE, NO. 1 - 6 CYLINDER MISFIRE |
| DTC P0327, P0328 | KS |
| DTC P0335 | CKP SENSOR (POS) |
| DTC P0340, P0345 | CMP SENSOR (PHASE) |
| DTC P0420, P0430 | THREE WAY CATALYST FUNCTION |
| DTC P0441 | EVAP CONTROL SYSTEM |
| DTC P0442 | EVAP CONTROL SYSTEM |
| DTC P0444, P0445 | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| DTC P0447 | EVAP CANISTER VENT CONTROL VALVE |
| DTC P0451 | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| DTC P0452 | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| DTC P0453 | EVAP CONTROL SYSTEM PRESSURE SENSOR |
| DTC P0455 | EVAP CONTROL SYSTEM |
| DTC P0456 | EVAP CONTROL SYSTEM |
| DTC P0460 | FUEL LEVEL SENSOR |
| DTC P0461 | FUEL LEVEL SENSOR |
| DTC P0462, P0463 | FUEL LEVEL SENSOR |
| DTC P0500 | VSS |
| DTC P0506 | ISC SYSTEM |
| DTC P0507 | ISC SYSTEM PFP:23781 |
| DTC P0550 | PSP SENSOR |
| DTC P0605 | ECM PFP:23710 |
| DTC P1031, P1032, P1051, P1052 | A/F SENSOR 1 HEATER |
| DTC P1065 | ECM POWER SUPPLY |
| DTC P1111, P1136 | IVT CONTROL SOLENOID VALVE |
| DTC P1121 | ELECTRIC THROTTLE CONTROL ACTUATOR |
| DTC P1122 | ELECTRIC THROTTLE CONTROL FUNCTION |
| DTC P1124, P1126 | THROTTLE CONTROL MOTOR RELAY |
| DTC P1128 | THROTTLE CONTROL MOTOR |
| DTC P1146, P1166 | HO2S2 |
| DTC P1147, P1167 | HO2S2 |
| DTC P1148, P1168 | CLOSED LOOP CONTROL |
| DTC P1211 | TCS CONTROL UNIT |
| DTC P1212 | TCS COMMUNICATION LINE |
| DTC P1217 | ENGINE OVER TEMPERATURE |
| DTC P1225 | TP SENSOR |
| DTC P1226 | TP SENSOR |
| DTC P1229 | SENSOR POWER SUPPLY |
| DTC P1271, P1281 | A/F SENSOR 1 |
| DTC P1272, P1282 | A/F SENSOR 1 |
| DTC P1273, P1283 | A/F SENSOR 1 |
| DTC P1274, P1284 | A/F SENSOR 1 |
| DTC P1276, P1286 | A/F SENSOR 1 |
| DTC P1278, P1288 | A/F SENSOR 1 |
| DTC P1279, P1289 | A/F SENSOR 1 |
| DTC P1444 | EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE |
| DTC P1446 | EVAP CANISTER VENT CONTROL VALVE |
| DTC P1564 | ASCD STEERING SWITCH |
| DTC P1572 | ASCD BRAKE SWITCH |
| DTC P1574 | ASCD VEHICLE SPEED SENSOR |
| DTC P1700 | CVT CONTROL SYSTEM |
| DTC P1706 | PNP SWITCH |
| DTC P1715 | INPUT SPEED SENSOR (PRIMARY SPEED SENSOR) |
| DTC P1720 | VSS |
| DTC P1800 | VIAS CONTROL SOLENOID VALVE |
| DTC P1805 | BRAKE SWITCH |
| DTC P2122, P2123 | APP SENSOR |
| DTC P2127, P2128 | APP SENSOR |
| DTC P2135 | TP SENSOR |
| DTC P2138 | APP SENSOR |
