Component Inspection: Injector

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect injector harness connector.
  2. Check resistance between terminals as shown in the figure.

    Resistance: 13.5 - 17.5+/- [at 20°C (68°F)]

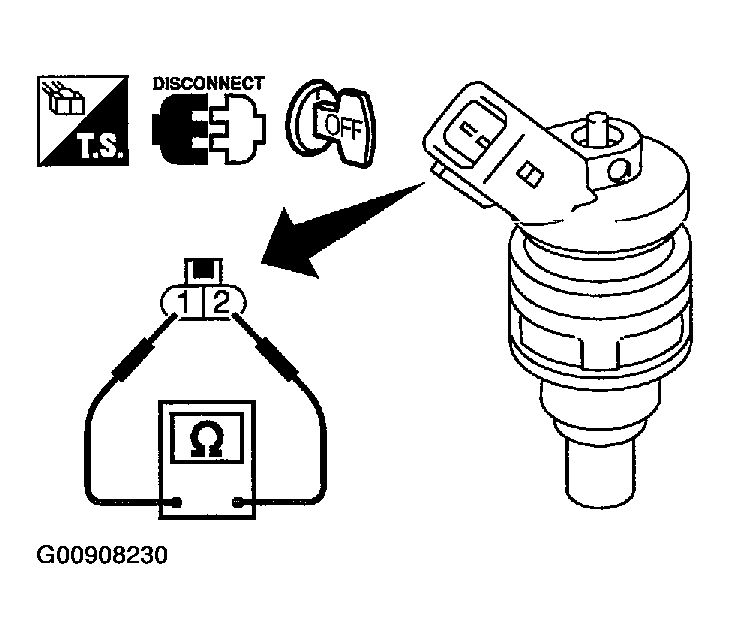

    Fig 1: Checking Resistance Between Terminals
    G00908230Courtesy of NISSAN MOTOR CO., U.S.A.
