Removal and Installation: Removal
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
- Move accelerator and brake pedals to the front most position (Adjustable type).
- Turn ignition switch "OFF" and disconnect negative battery terminal.
- Disconnect accelerator pedal position sensor harness connector.

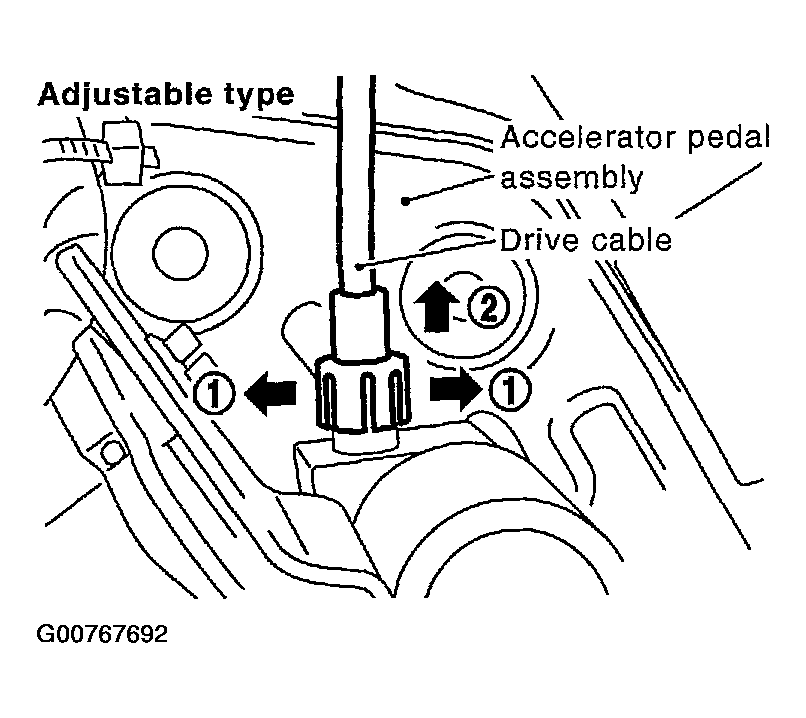

- Disconnect drive cable from accelerator pedal assembly (Adjustable type).
- Unlock (1) then pull (2) to disconnect drive cable.
- Loosen nuts, and remove accelerator pedal assembly.CAUTION:
- Before removal and installation accelerator and brake pedals must be in front most position. This is to align the base position of accelerator and brake pedals (Adjustable type).
- Do not disassemble accelerator pedal assembly. Do not remove accelerator pedal position sensor from accelerator pedal assembly.
- Adjusting mechanism for accelerator pedal position is not able to disassemble (Adjustable type).
- Avoid impact from dropping etc. during handling.
- Be careful to keep accelerator pedal assembly away from water.
NOTE:
Drive cable of the adjustable type accelerator pedal assembly is a component of brake pedal. Refer to BRAKE PEDAL HEIGHT
.
