Check Key Fob Function

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CHECK KEY FOB FUNCTION
With CONSULT-II

Check key fob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of key fob, the corresponding monitor item should be turned as follows.

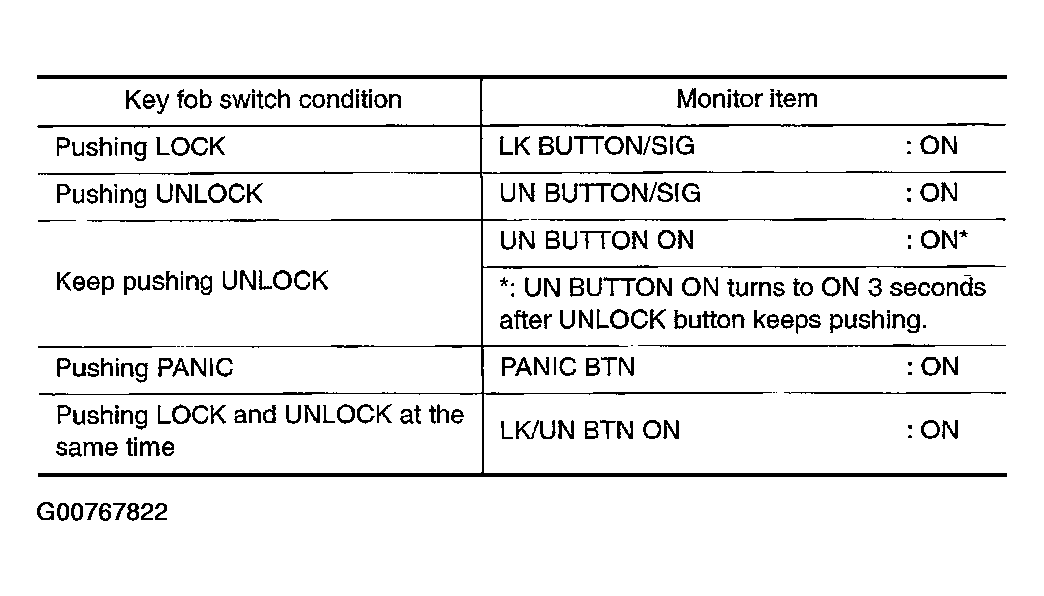

Fig 1: Key Fob Switch Function Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

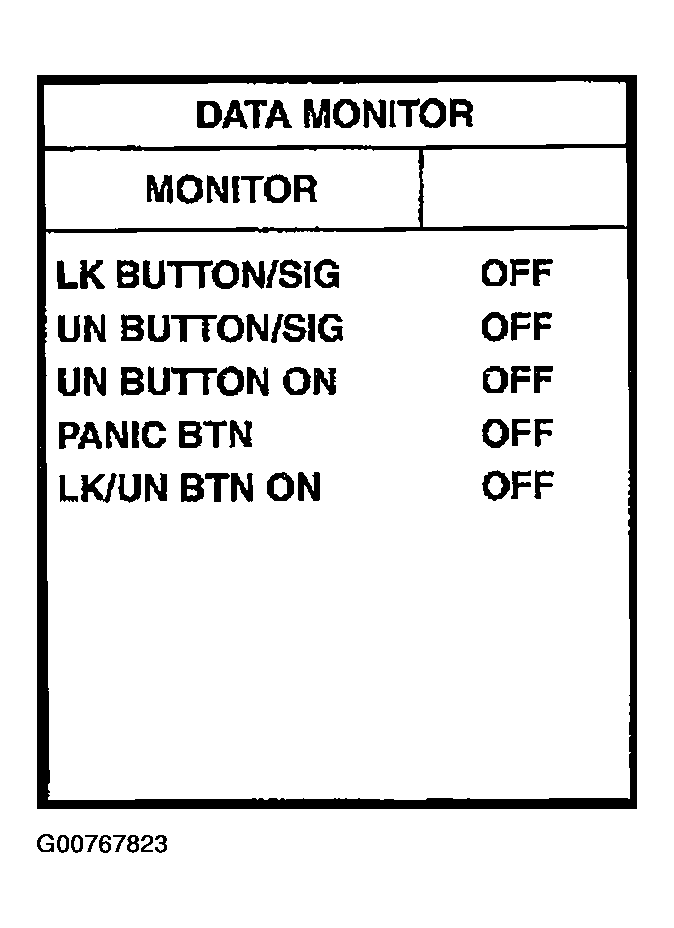

Fig 2: CONSULT-II Function Display Data Monitor
Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG
1. OK: Key fob is OK.
2. NG: Replace key fob and register key fob ID code. Refer to "ID CODE ENTRY PROCEDURE ".
