Key Fob Id Set Up With Consult-II
WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
If CONVERTER is not connected with CONSULT-II, vehicle occur the "FAIL-SAFE MODE" which is "LIGHT UP THE HEADLAMP" and/or "COOLING FAN ROTATING" when CONSULT-II is started.
NOTE:
- If a key fob is lost, the ID code of the lost key fob must be erased to prevent unauthorized use. A specific ID code can be erased with CONSULT-II. However, when the ID code of a lost key fob is not known, all controller ID codes should be erased. After all ID codes are erased, the ID codes of all remaining and/or new key fobs must be re-registered.
- When registering an additional key fob, the existing ID codes in memory may or may not be erased. If five ID codes are stored in memory, when an additional code is registered, only the oldest code is erased. If less than five ID codes are stored in memory, when an additional ID code is registered, the new ID code is added and no ID codes are erased.
- Entry of maximum five ID codes is allowed. When more than five ID codes are entered, the oldest ID code will be erased.
- Even if same ID code that is already in the memory is input, the same ID code can be entered. The code is counted as an additional code.
- Turn ignition switch "OFF".

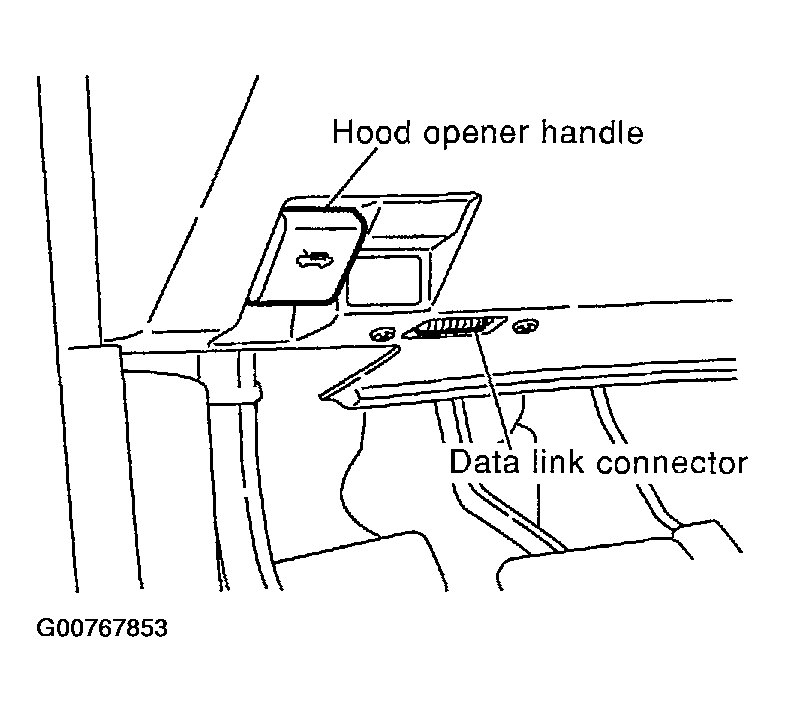

- Connect "CONSULT-II" and "CONSULT-II CONVERTER" to data link connector.
- Turn ignition switch ON.

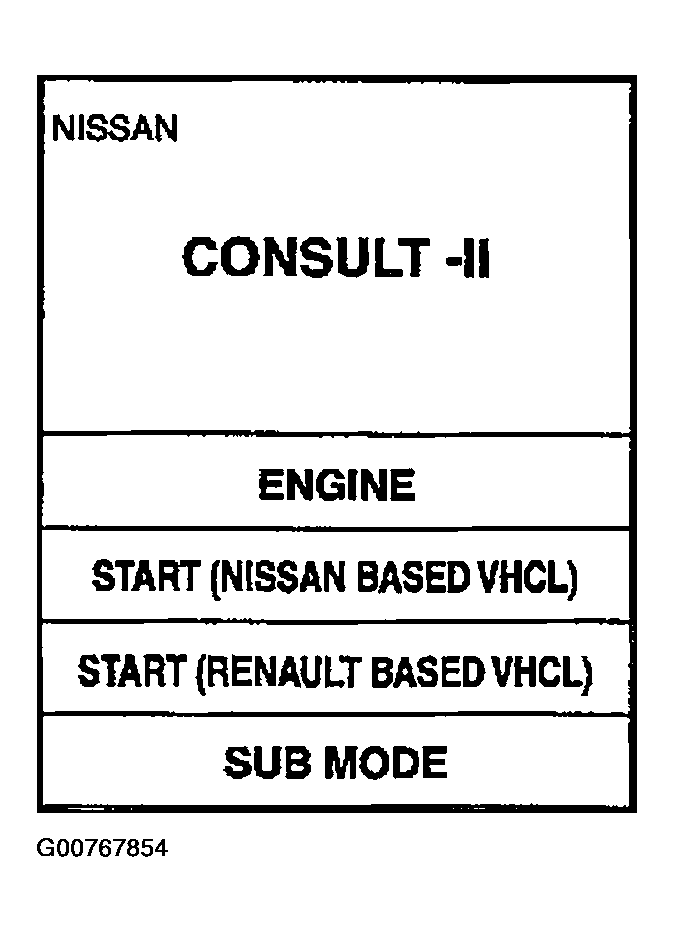

- Touch "START (NISSAN BASED VHCL)".

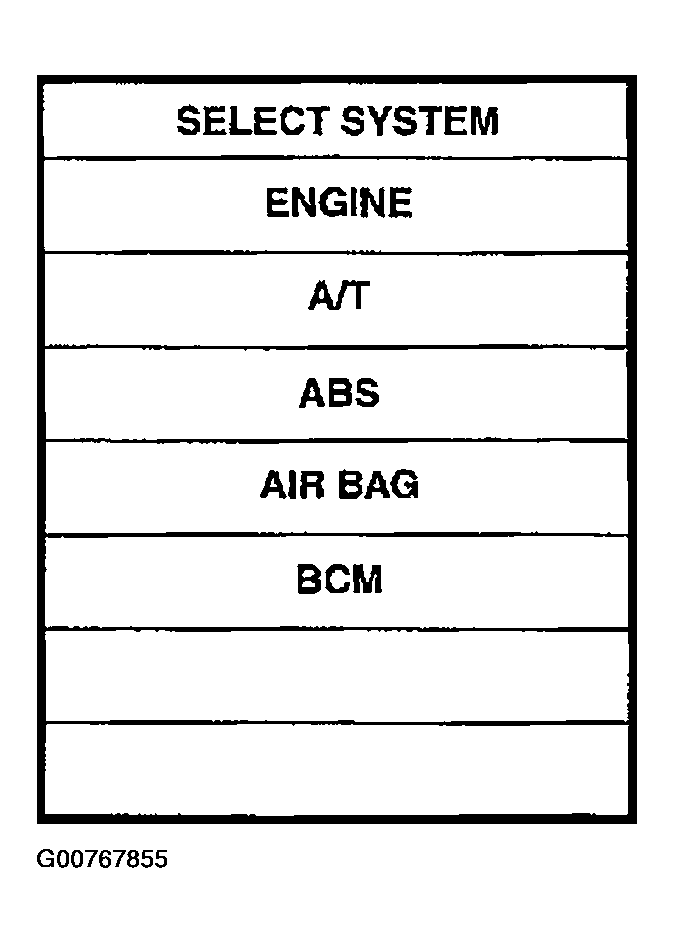

- Touch "BCM".
If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

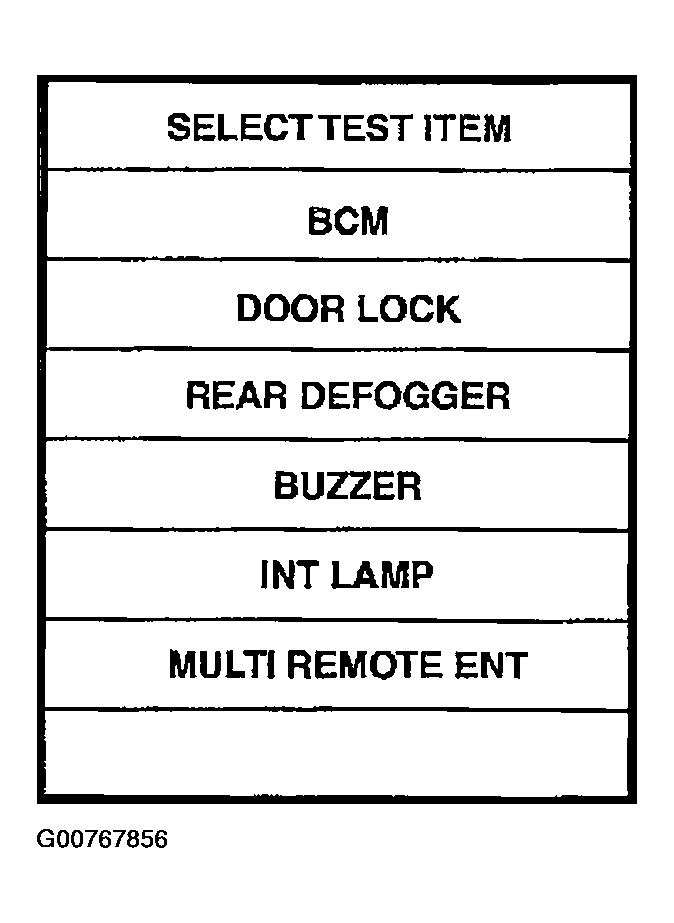

- Touch "MULTI REMOTE ENT".

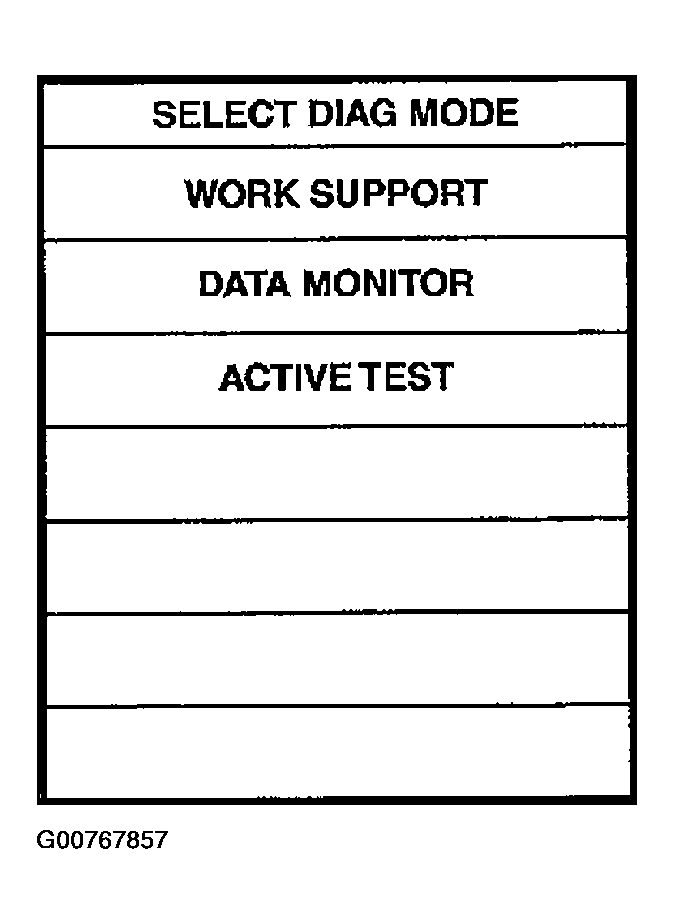

- Touch "WORK SUPPORT".

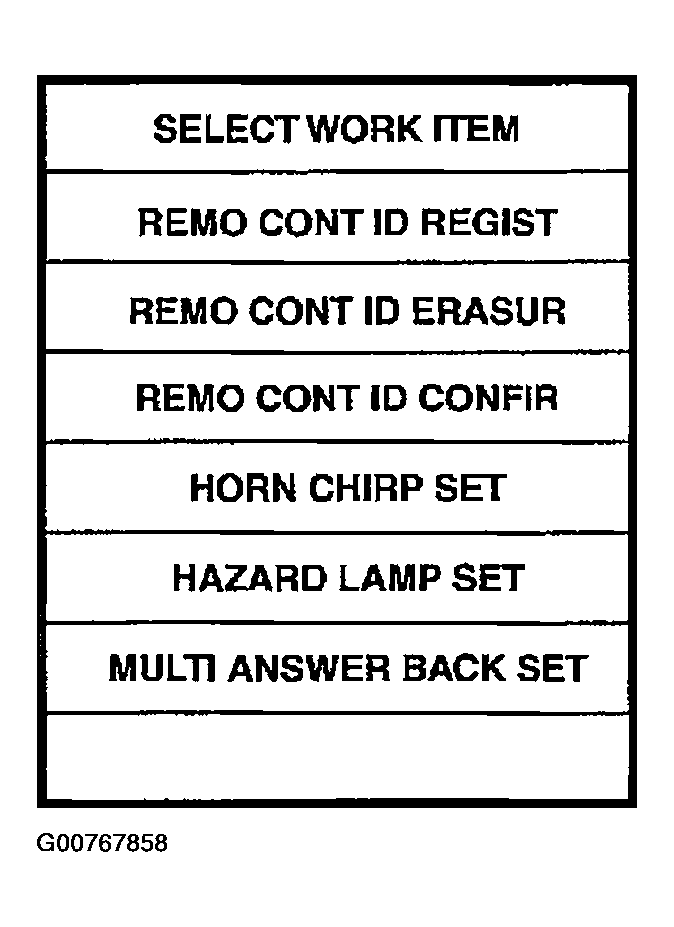

- The items are shown on the figure can be set up.
- "REMO CONT ID REGIST" Use this mode to register a key fob ID code.NOTE: Register a key fob ID code when key fob or BCM is replaced, or when additional key fob is required.
- "REMO CONT ID ERASUR" Use this mode to erase a key fob ID code.
- "REMO CONT ID CONFIR"Use this mode to confirm if a key fob ID code is registered or not.
