Consult-II Basic Operation

WARNING: This page is about a different car, the 2004 Nissan Murano. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carry out CAN communication.

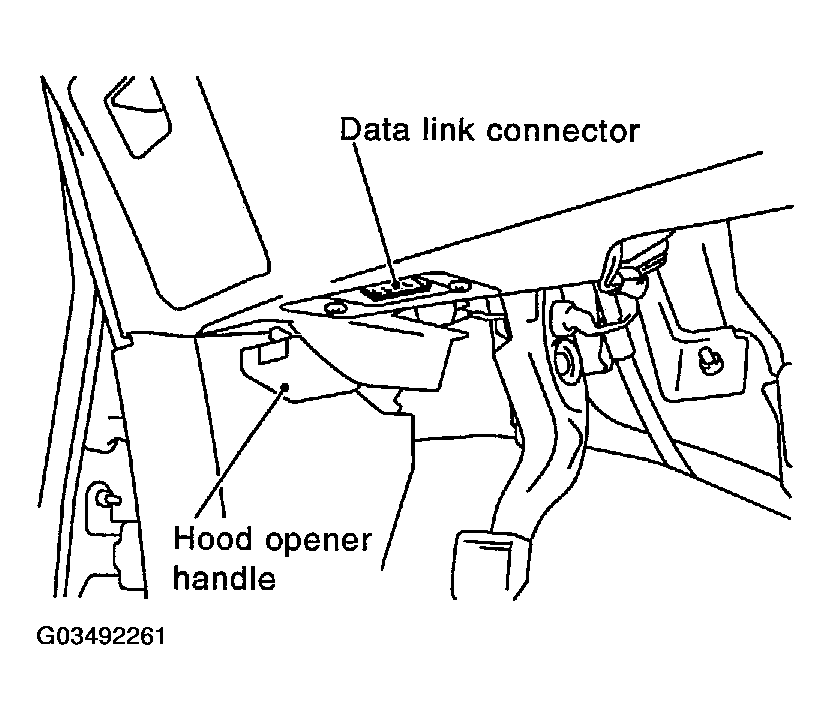

With the ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to the data link connector, then turn the ignition switch ON.

Fig 1: Identifying Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.

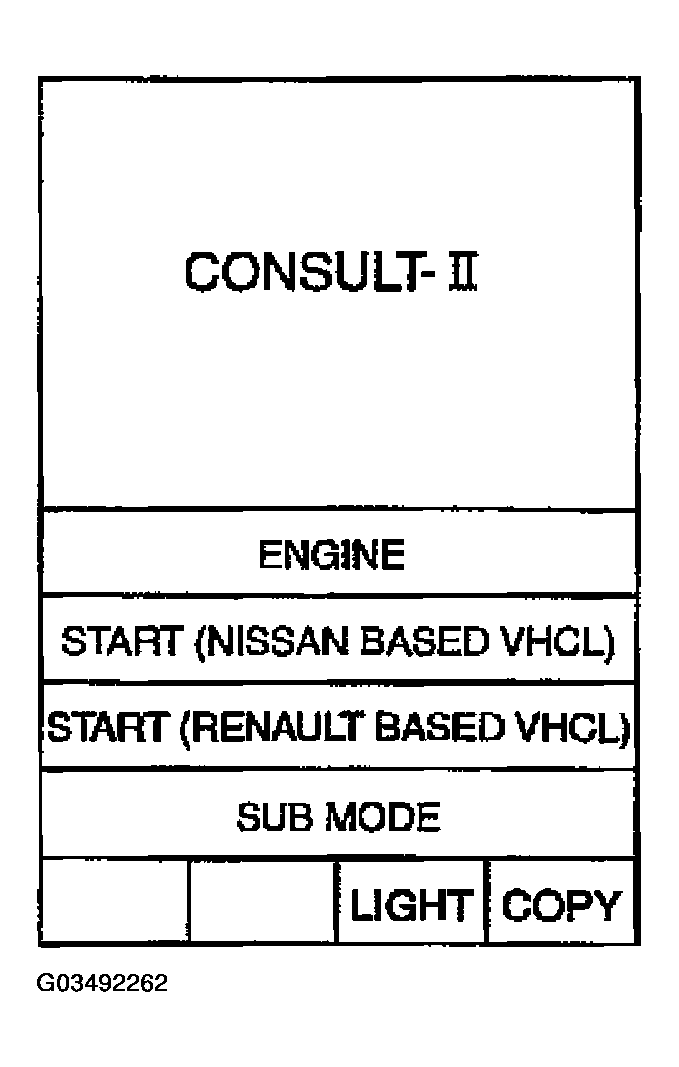

Touch "START (NISSAN BASED VHCL)".

Fig 2: Displaying START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.

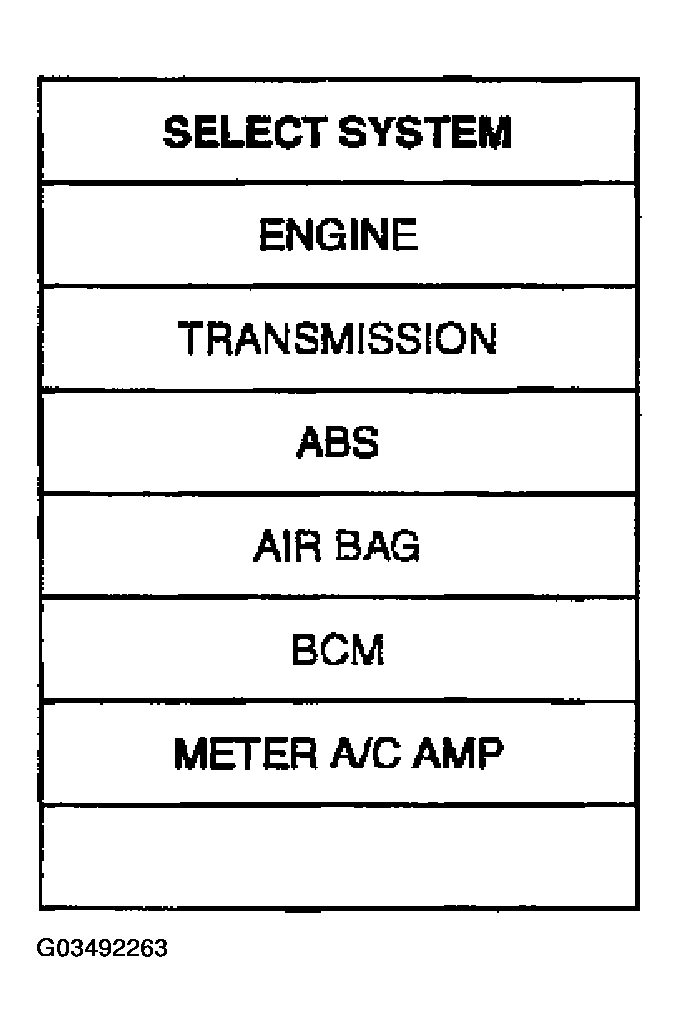

Touch "BCM" on "SELECT SYSTEM" screen.
If "BCM" is not indicated, go to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

Fig 3: Displaying SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.

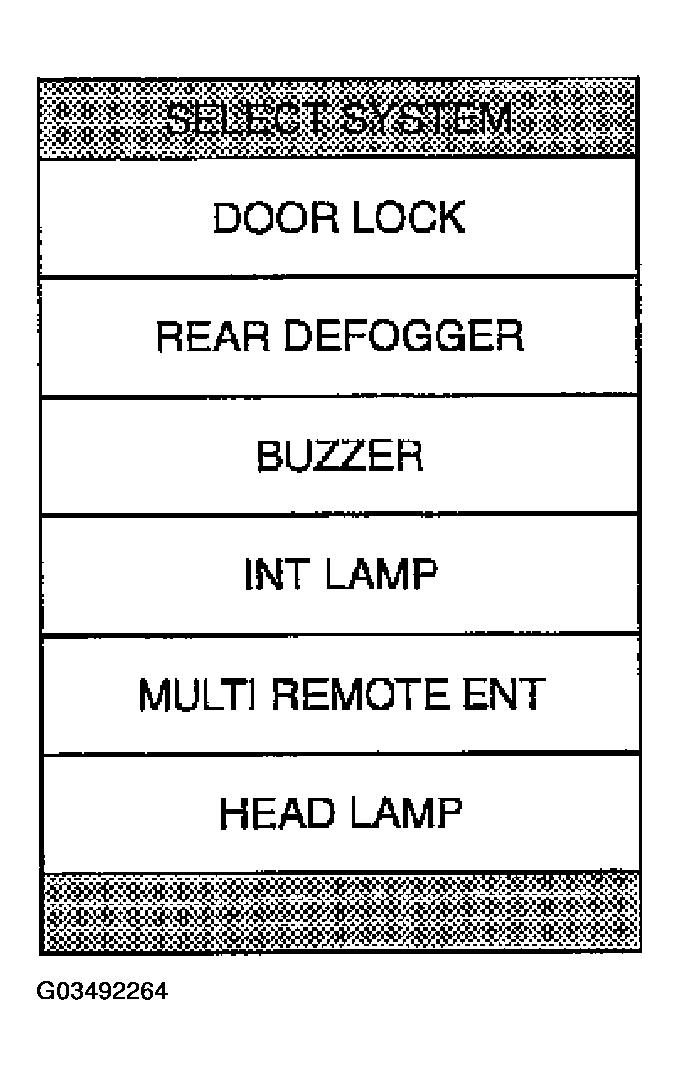

Select the desired part to be diagnosed on the "SELECT TEST ITEM" screen.

Fig 4: Displaying SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
