Connector Identification

WARNING: This page is about a different car, the 2003 Lexus ES 300 and 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

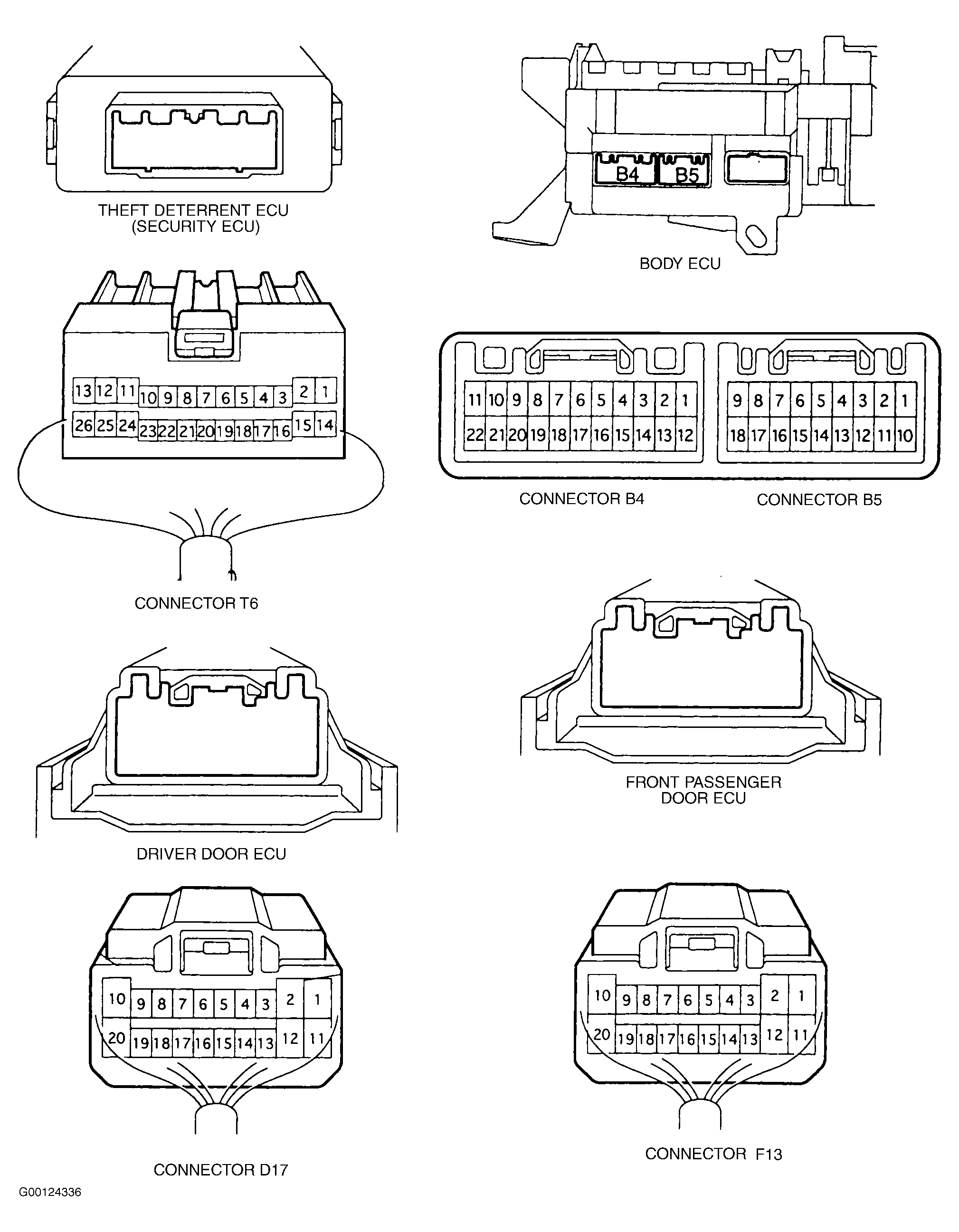

Fig 1: Identifying Body Electronics Area Network Connectors & Terminals
G00124336Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
