Data Monitor

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

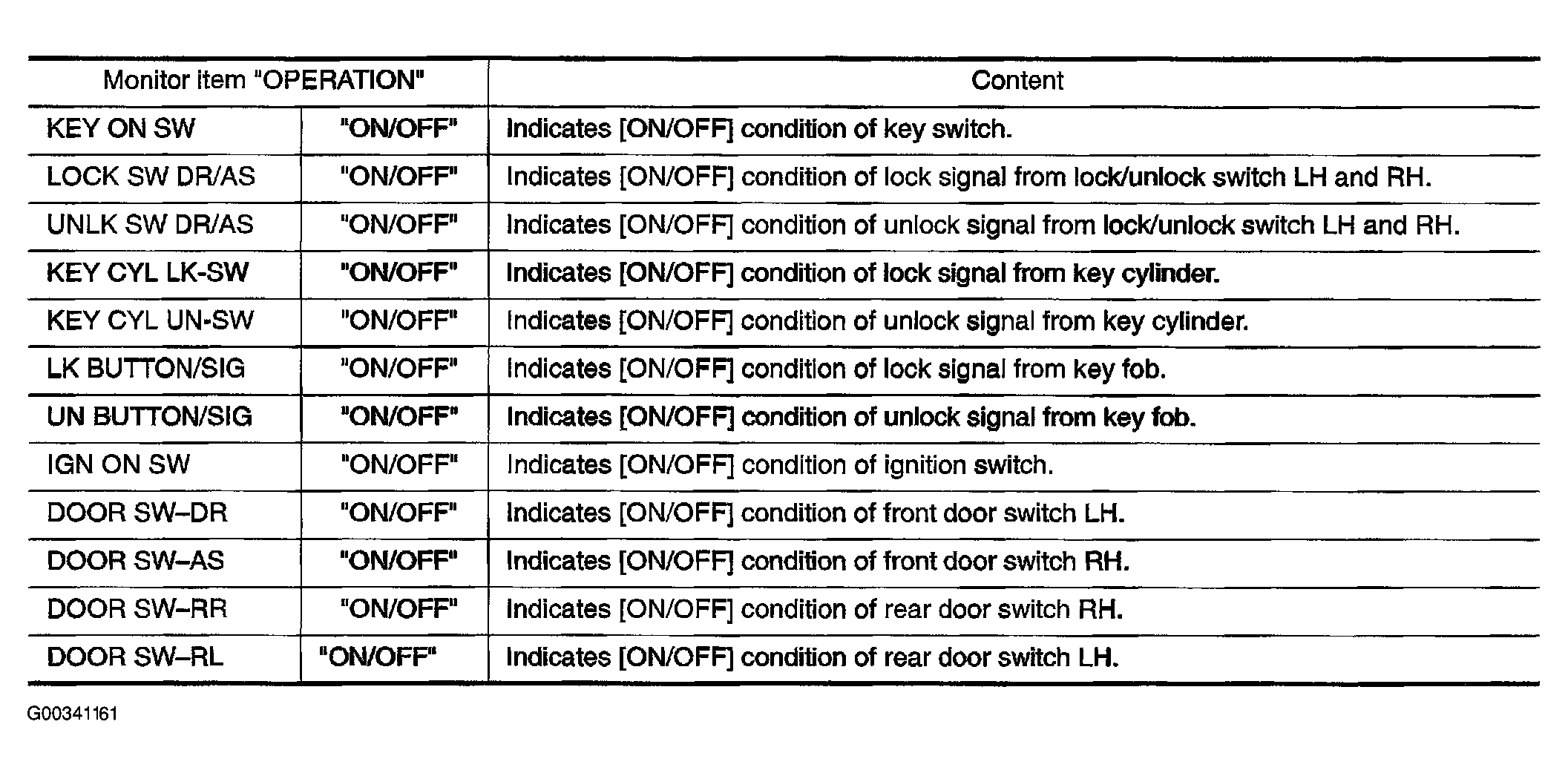

Fig 1: Data Monitor Item Operation Description Chart
G00341161Courtesy of NISSAN MOTOR CO., U.S.A.
