Check Acc Power

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

With CONSULT-II

Check key switch "KEY ON SW" in DATA MONITOR mode with CONSULT-II. Refer to DATA MONITOR . .

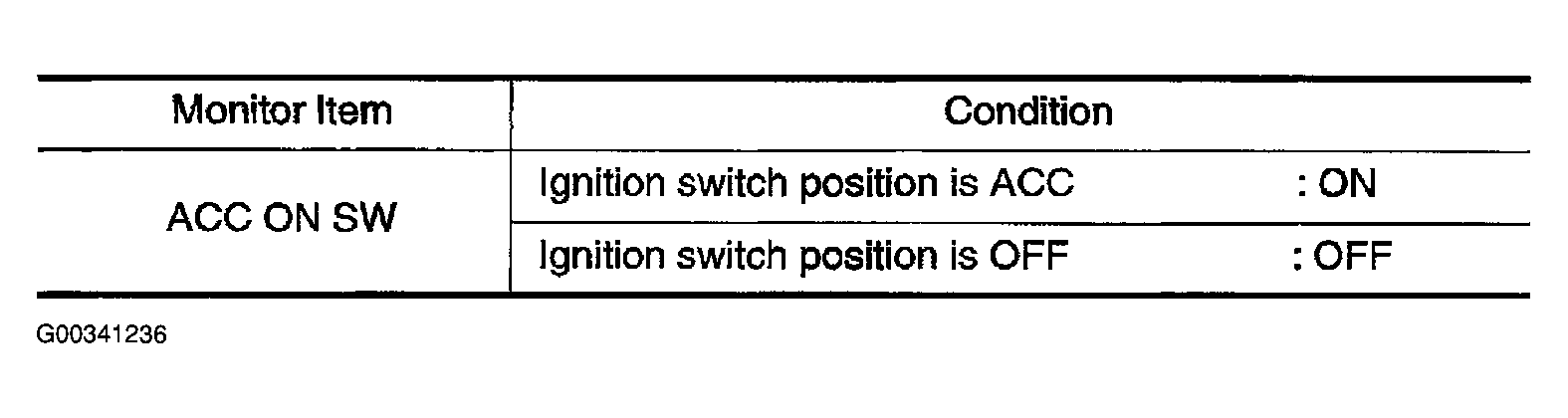

Fig 1: Monitor Item And Condition Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking ACC Power With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

Without CONSULT-II

Check voltage between BCM connector M18 terminal 11 and ground.

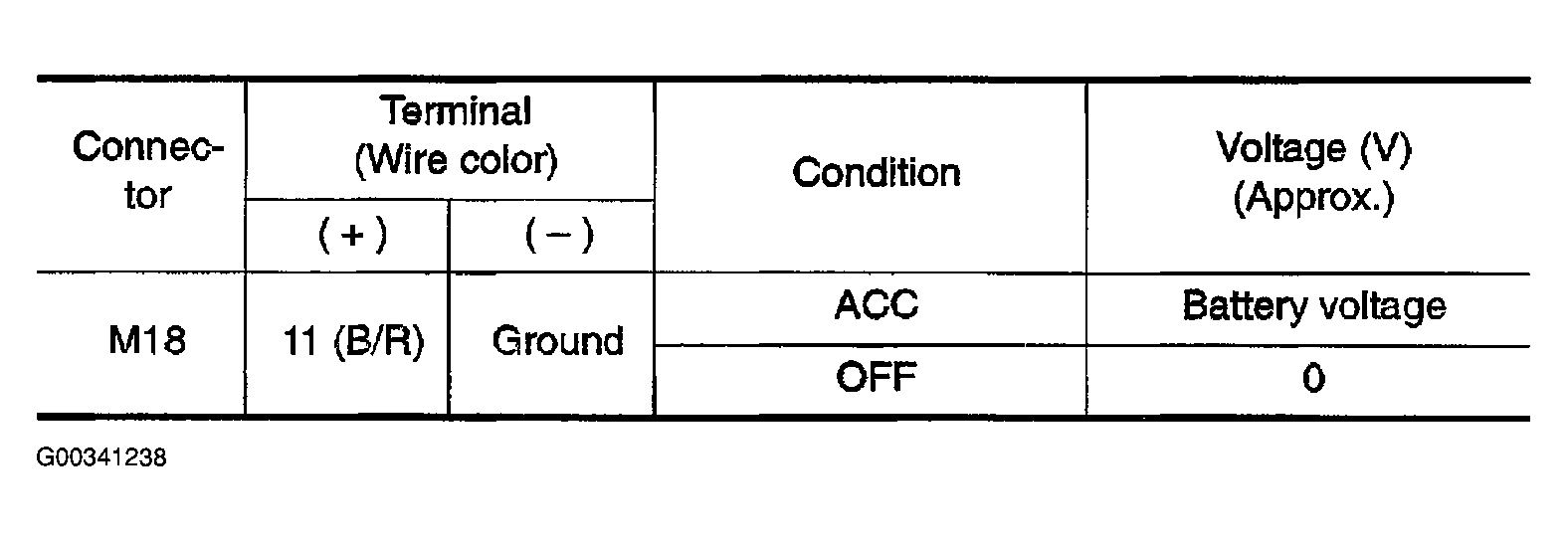

Fig 3: Connector Terminals Voltage Specifications (M 18)

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> ACC power circuit is OK.
NG >> Check the following.
- 10A fuse [No. 6, located in fuse block (J/B)]
- Harness for open or short.

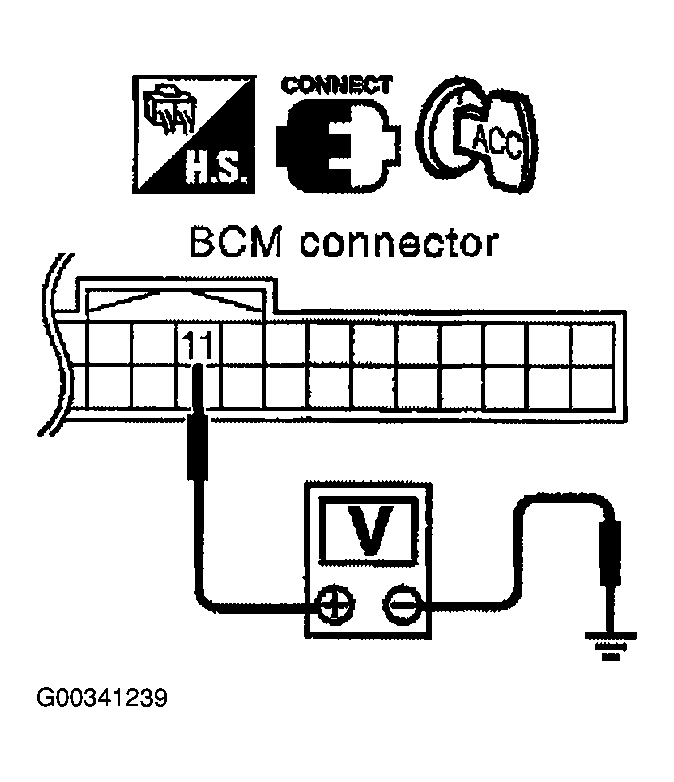

Fig 4: Checking ACC Power Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
