With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check door switches ("DOOR SW-RL", "DOOR SW-RR", "DOOR SW-DR" and "DOOR SW-AS") in "DATA MONITOR" mode with CONSULT-II.

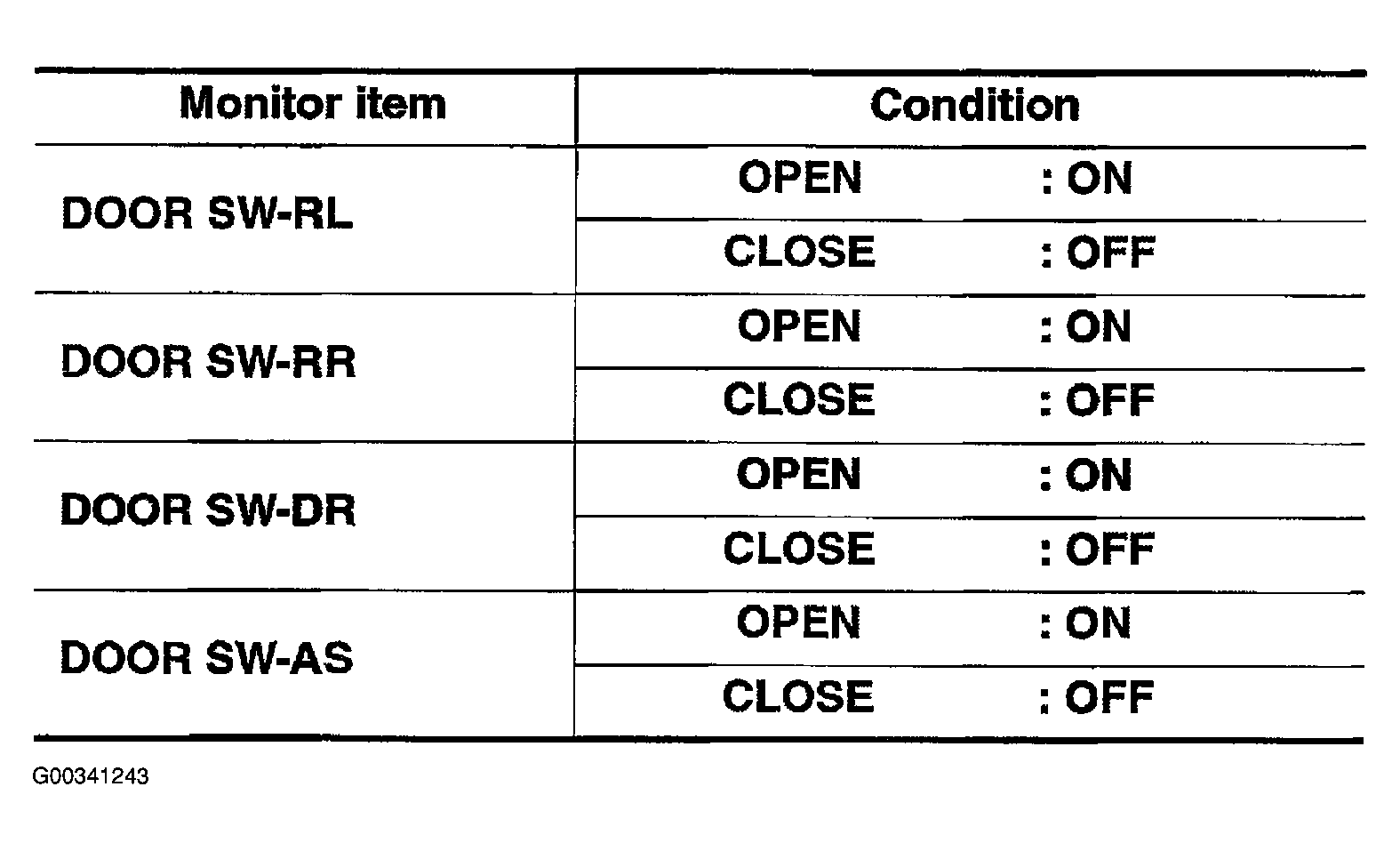

Fig 1: Monitor Item And Condition Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

Fig 2: Checking Door Switch Input Signal With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
