Without CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check voltage between BCM harness connector terminals 12, 13, 62 and 63 and ground.

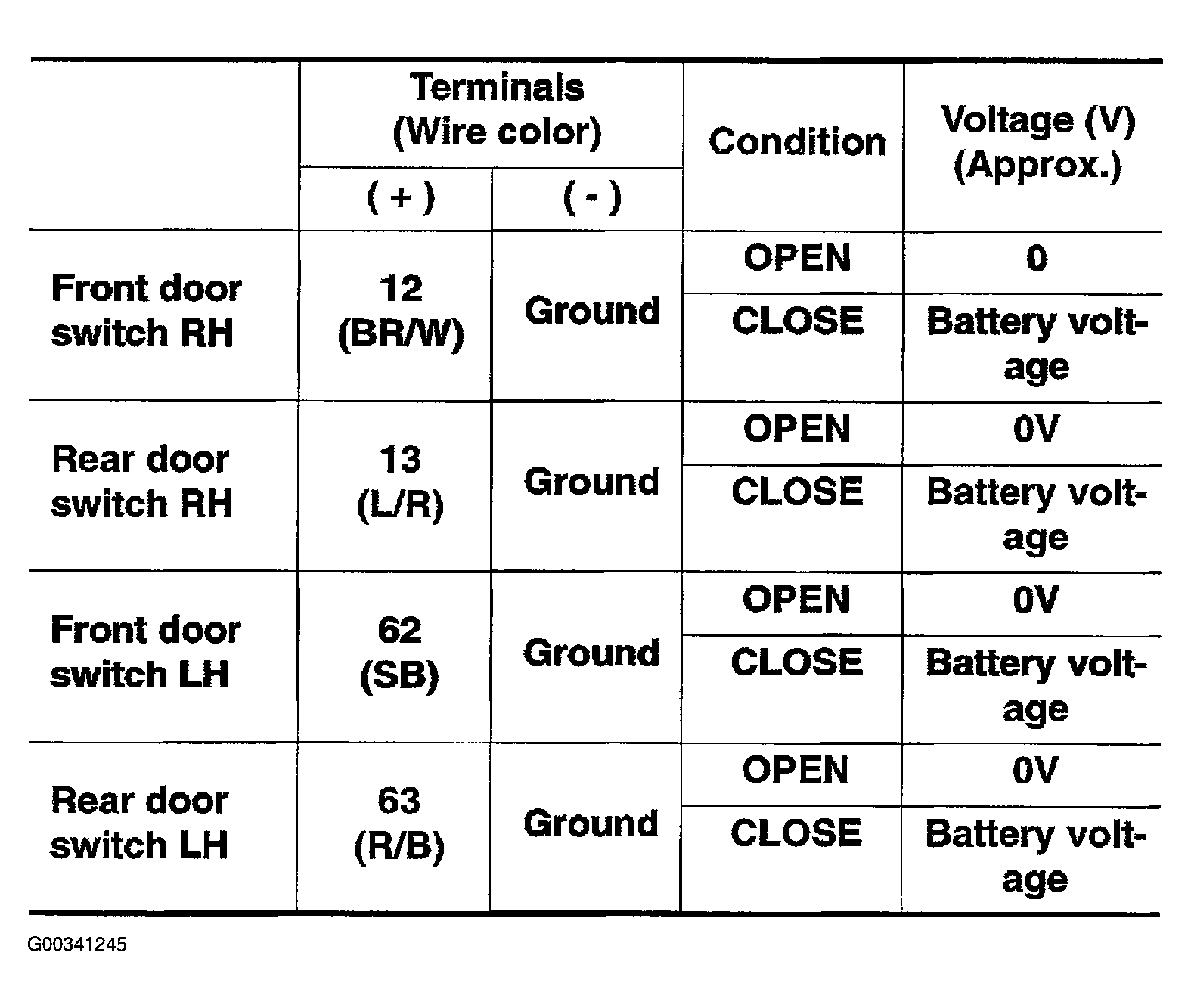

Fig 1: Terminals Voltage Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Door switch circuit is OK.
NG >> GO TO 2

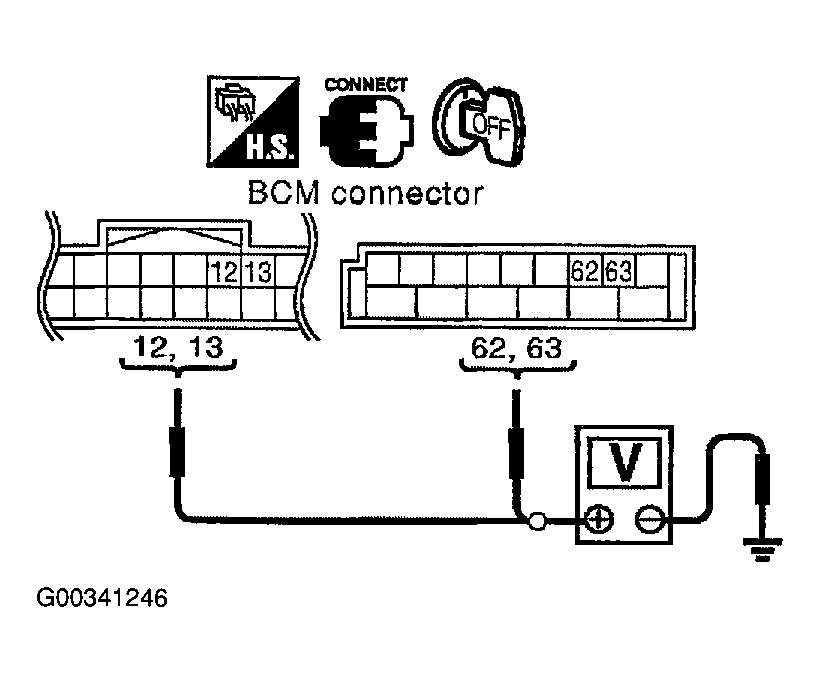

Fig 2: Checking Door Switch Input Signal Without CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.
