With CONSULT-II

WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.

Check key fob function in "DATA MONITOR" mode with CONSULT-II.

When pushing each button of key fob, the corresponding monitor item should be turned as follows.

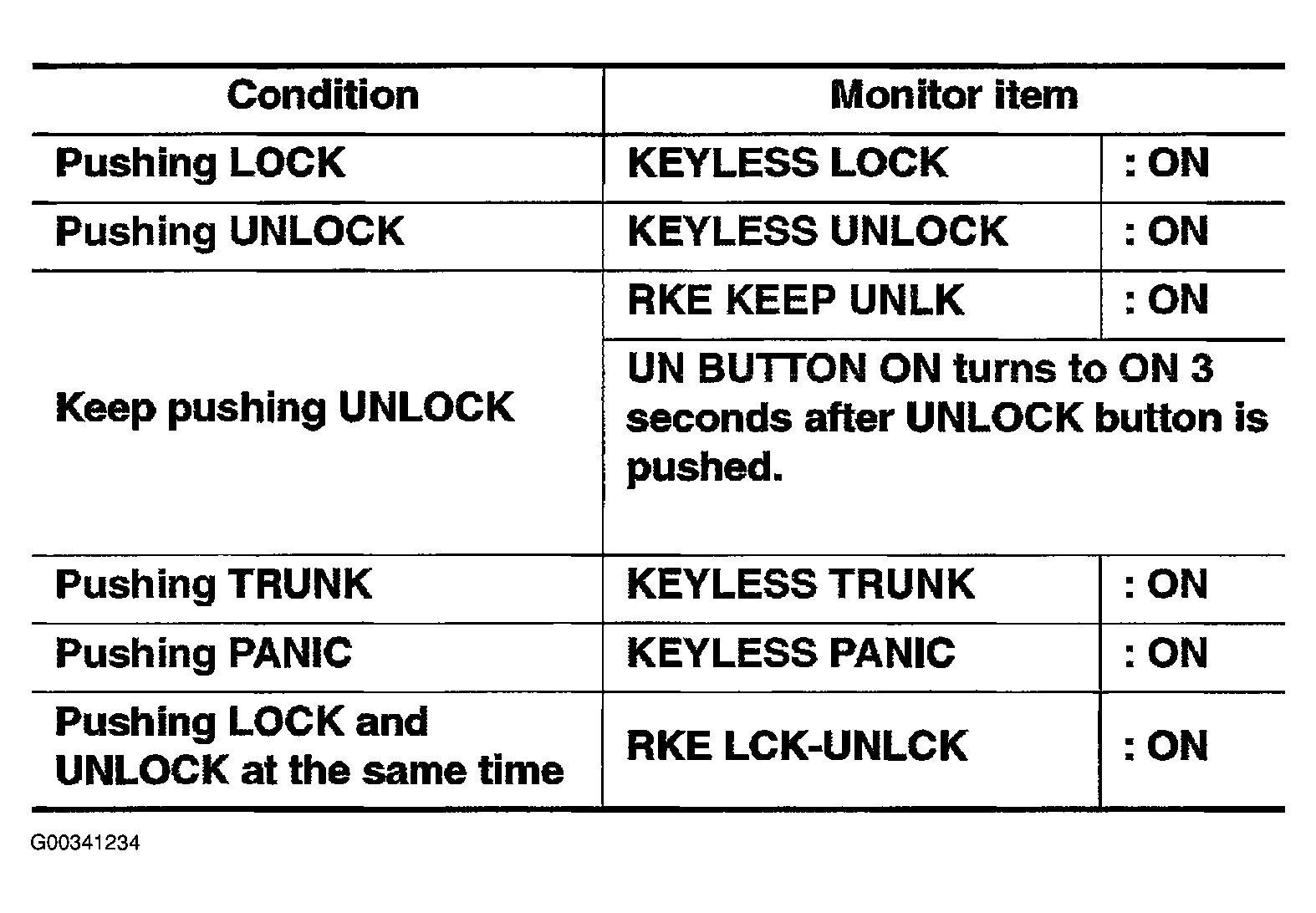

Fig 1: Condition And Monitor Item Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

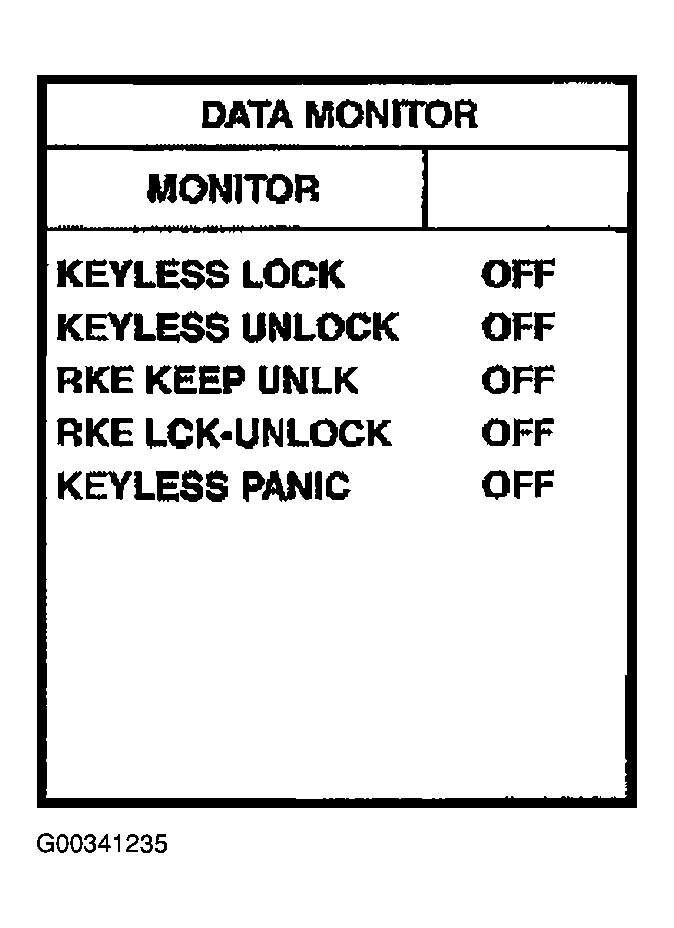

Fig 2: Checking Key Fob Function With CONSULT-II

Courtesy of NISSAN MOTOR CO., U.S.A.

OK or NG

OK >> Key fob is OK. Further inspection is necessary. Refer to SYMPTOM CHART ".
NG >> Replace key fob.
