Auto Door Lock Operation
WARNING: This page is about a different car, the 2004 Nissan Maxima. However, it is still accessible from the selected car via links, so may be relevant.
Auto lock function signal is sent when any of the following signals are not sent after the unlock signal is sent from the key fob:
- When door switch is turned ON for open.
- When the key switch is turned ON.
- When any signal is sent from the key fob.

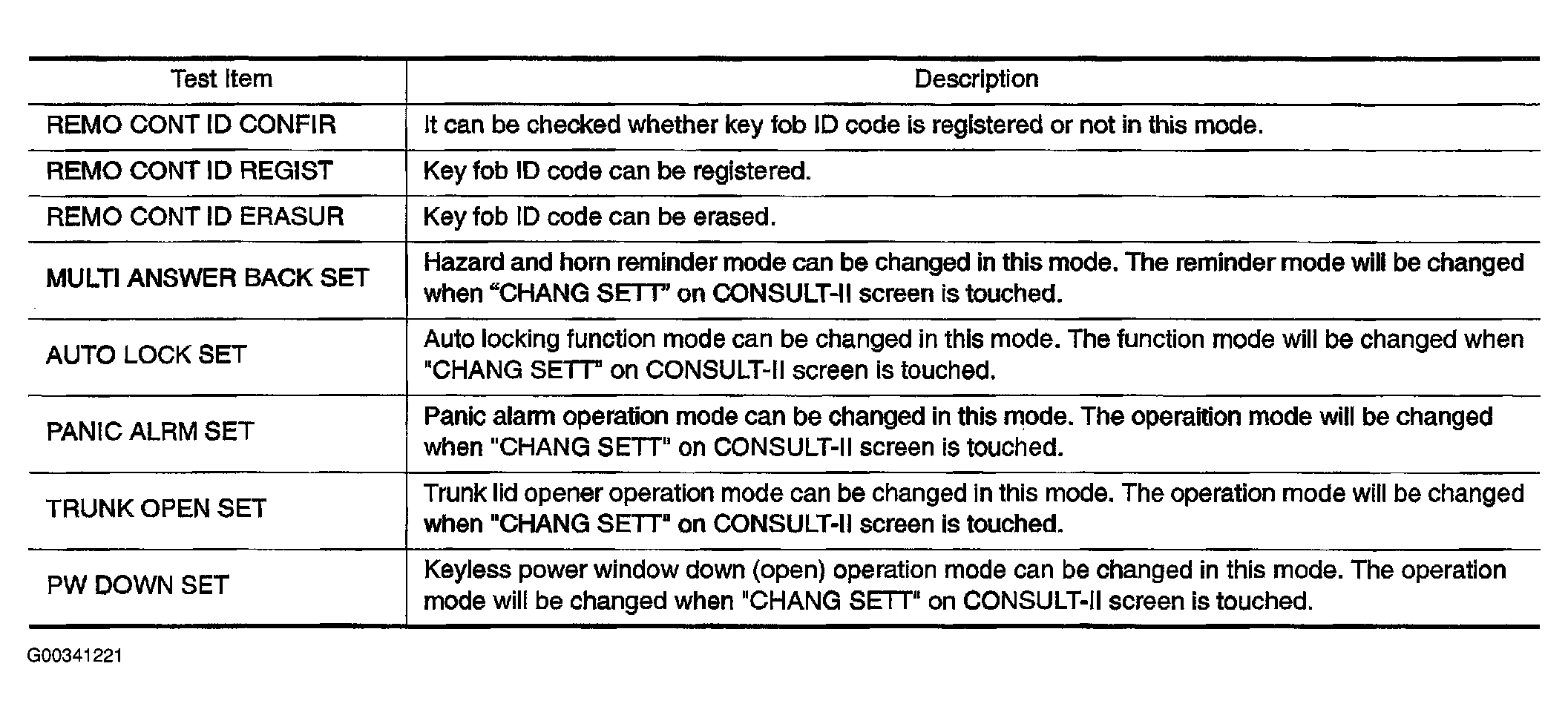

Auto door lock mode can be changed using "WORK SUPPORT" mode in "AUTO LOCK SET. Refer to Figure .
