Removal & Installation

WARNING: This page is about a different car, the 2002 Lexus ES 300. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Special caution should be taken for handling each component as they are precise electronic components.

CAUTION: Do not pry out the cover forcibly.

Using a screwdriver, remove the screw and cover. Push the cover with a finger as shown in the illustration, so that there becomes clearance, then pry out the cover from that clearance. See Fig 1.
For installation, reverse removal procedure.
After installation, register recognition code. See RECOGNITION CODE REGISTRATION under PROGRAMMING.

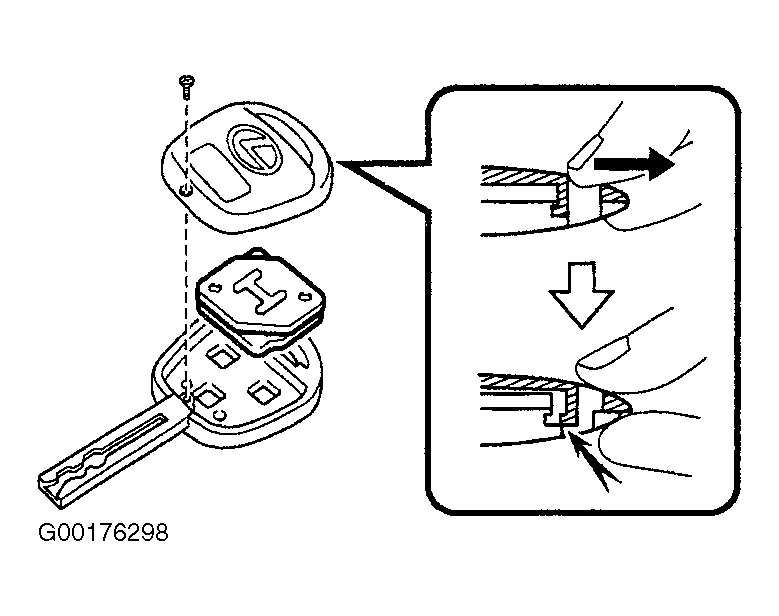

Fig 1: Removing Transmitter Sub-Assembly Module Set Door Control
