Component Locations

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
COMPONENT LOCATIONS

Component Location
ABS Actuator & Electric Unit (Control Unit) Underneath Brake Master Cylinder
Body Computer Module (BCM) Behind Left End Of Dash, See Fig 6
Combination Meter Behind Steering Wheel in Dash, See Fig 5
Data Link Connector Underside Of Dash In Front Of Driver Seat, See Fig 3
Engine Control Module (ECM) Behind Glove Box, See Fig 1
Intelligent Power Distribution Module (IPDM) Under Hood Next To Coolant Reservoir Tank, See Fig 2
Transmission Control Module (TCM) Behind Glove Box Next To ECM, See Fig 4
Fig 1: Locating Engine Control Module
G00103843Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 2: Locating Intelligent Power Distribution Module
G00103838Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 3: Locating Data Link Connector
G99C25280Courtesy of NISSAN MOTOR CO., U.S.A.

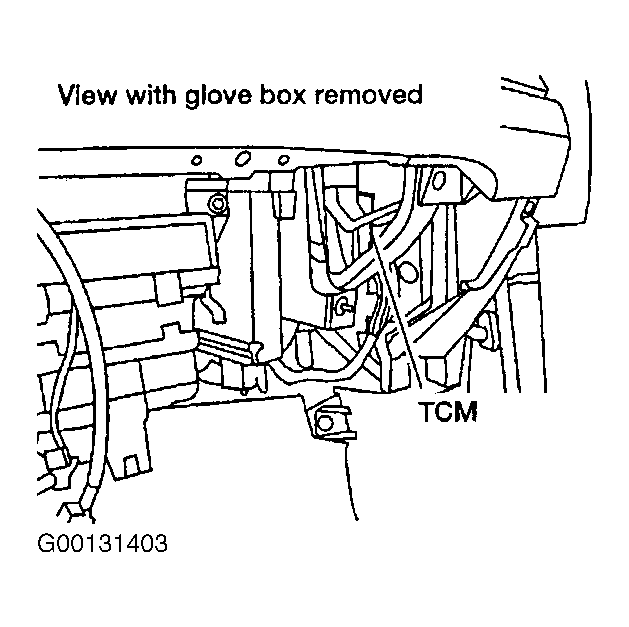

Fig 4: Locating Transmission Control Module
G00131403Courtesy of NISSAN MOTOR CO., U.S.A.

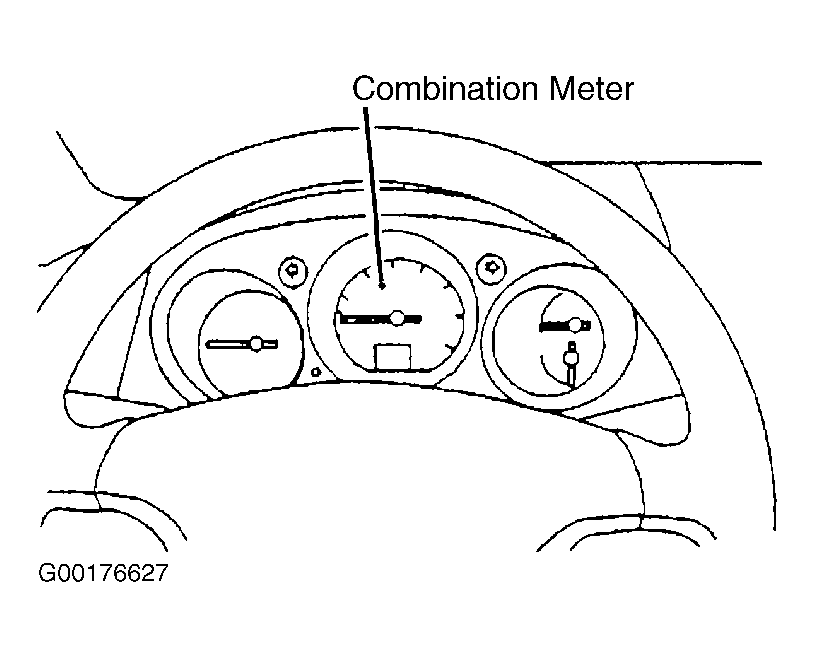

Fig 5: Locating Combination Meter
G00176627Courtesy of NISSAN MOTOR CO., U.S.A.

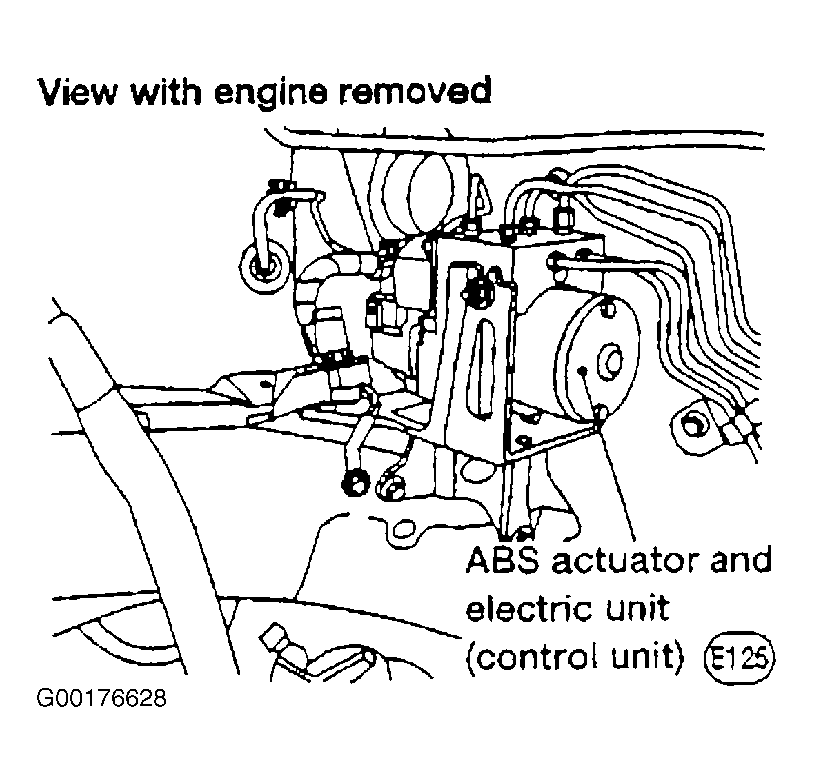

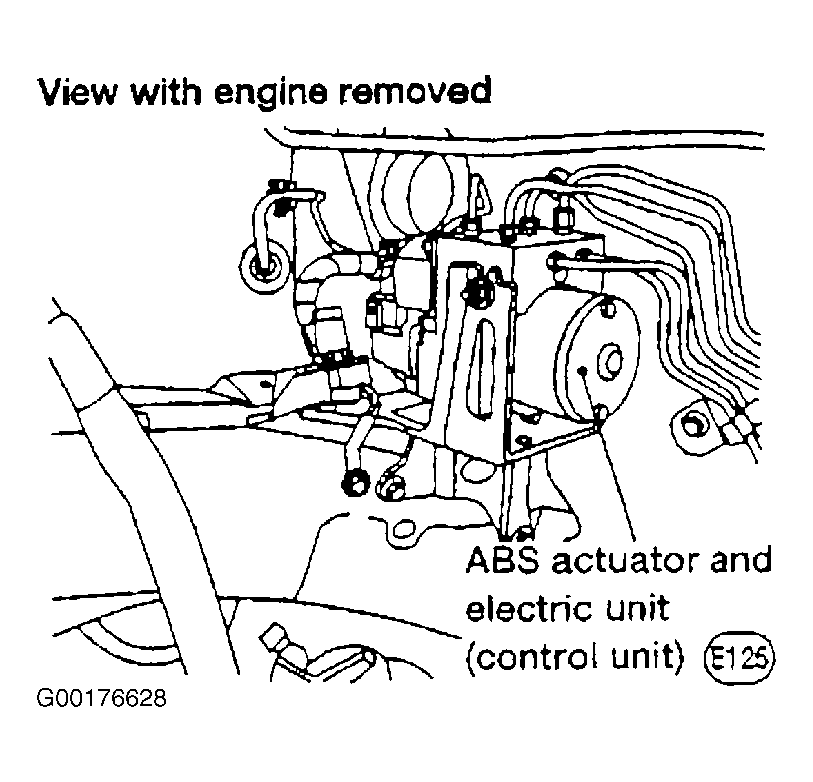

Fig 6: Locating ABS Actuator & Electronic Unit
G00176628Courtesy of NISSAN MOTOR CO., U.S.A.
Fig 7: Locating Body Computer Module
G00176629Courtesy of NISSAN MOTOR CO., U.S.A.
