Consult-II Inspection Procedure

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

With ignition switch "OFF", connect CONSULT-II to DLC and turn ignition "ON". See Figure .
Touch "START".
Touch "BCM" on "SELECT SYSTEM" screen. See Fig 1 .
Select item to be diagnosed on "SELECT TEST ITEM" screen. See Fig 2 .

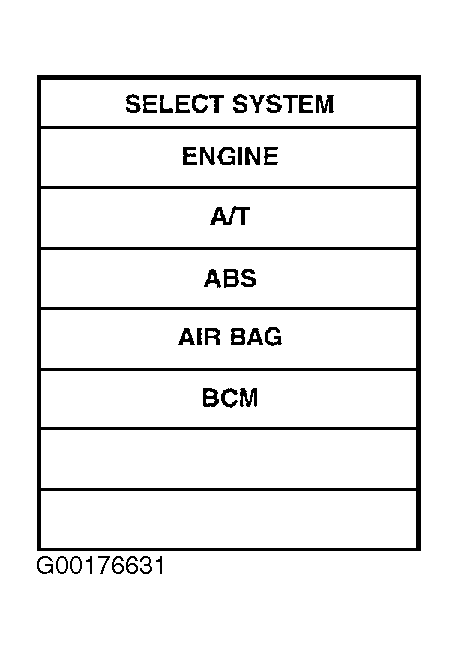

Fig 1: Identifying "Select System"

Courtesy of NISSAN MOTOR CO., U.S.A.

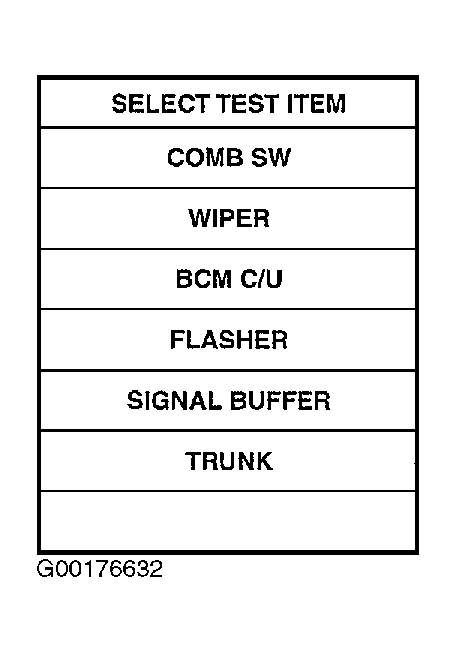

Fig 2: Identifying "Select Test Item"

Courtesy of NISSAN MOTOR CO., U.S.A.
