Vehicle Signals
WARNING: This page is about a different car, the 2004 Nissan Titan. However, it is still accessible from the selected car via links, so may be relevant.

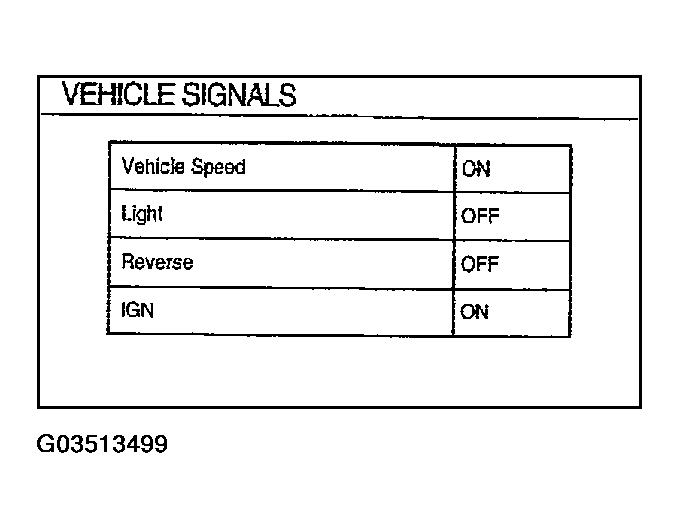

- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of lighting switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
Unless above setting, light signal (ON/OFF) may not be accurately displayed.
PROBLEM DIAGNOSISDiagnosis item Display Condition Remarks Vehicle speed ON Vehicle speed > 0 km/h (0 MPH) Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Vehicle speed = 0 km/h (0 MPH) -- Ignition switch in ACC position Light ON Lighting switch ON -- OFF Lighting switch OFF IGN ON Ignition switch ON -- OFF Ignition switch ACC or OFF Reverse ON Selector lever in R position Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Selector lever in other than R position -- Ignition switch in ACC position - If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
- If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
- If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".
- If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR DISPLAY CONTROL UNIT ".

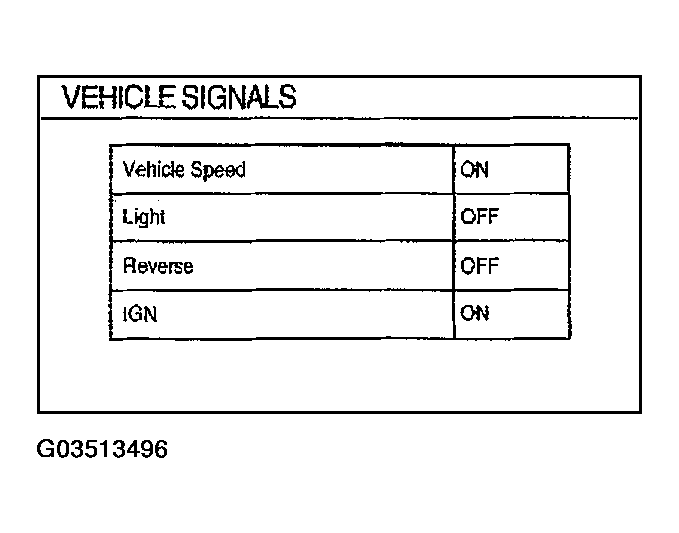

- A comparison check can be made of each actual vehicle signal and the signals recognized by the system.CAUTION: In case of confirming light signal, set D/N mode to ON/OFF of light switch (normal setting).
- OFF: D (Day mode)
- ON: N (Night mode)
Unless mode is in above setting, light signal (ON/OFF) may not be accurately displayed.
PROBLEM DIAGNOSISDiagnosis item Display Condition Remarks Vehicle speed ON Vehicle speed > 0 km/h (0 MPH) Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Vehicle speed = 0 km/h (0 MPH) -- Ignition switch in ACC position Light ON Lighting switch ON -- OFF Lighting switch OFF IGN ON Ignition switch ON -- OFF Ignition switch ACC or OFF Reverse ON Selector lever in R position Changes in indication may be delayed by approx. 1.5 seconds. This is normal. OFF Selector lever in other than R position -- Ignition switch in ACC position - If vehicle speed is NG, refer to , "VEHICLE SPEED SIGNAL CHECK FOR NAVI CONTROL UNIT ".
- If light is NG, refer to , "ILLUMINATION SIGNAL CHECK FOR NAVI CONTROL UNIT ".
- If IGN is NG, refer to , "IGNITION SIGNAL CHECK FOR NAVI CONTROL UNIT ".
- If reverse is NG, refer to , "REVERSE SIGNAL CHECK FOR NAVI CONTROL UNIT ".
