Door Switch Check

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.
  1. For step 1, see Fig 1 .
  2. For step 2, see Fig 2 .

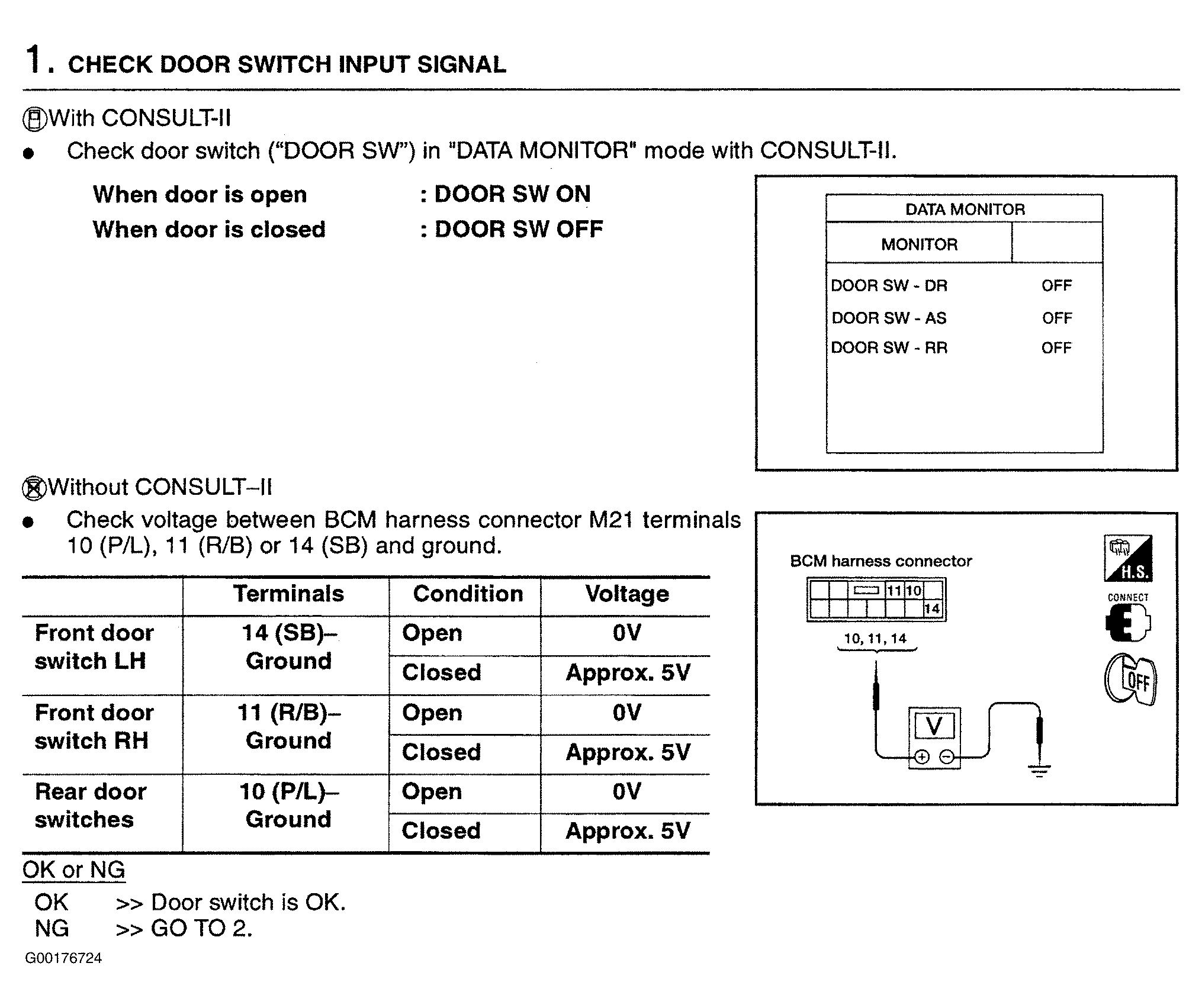

Fig 1: Identifying Door Switch Check, Step 1
G00176724Courtesy of NISSAN MOTOR CO., U.S.A.

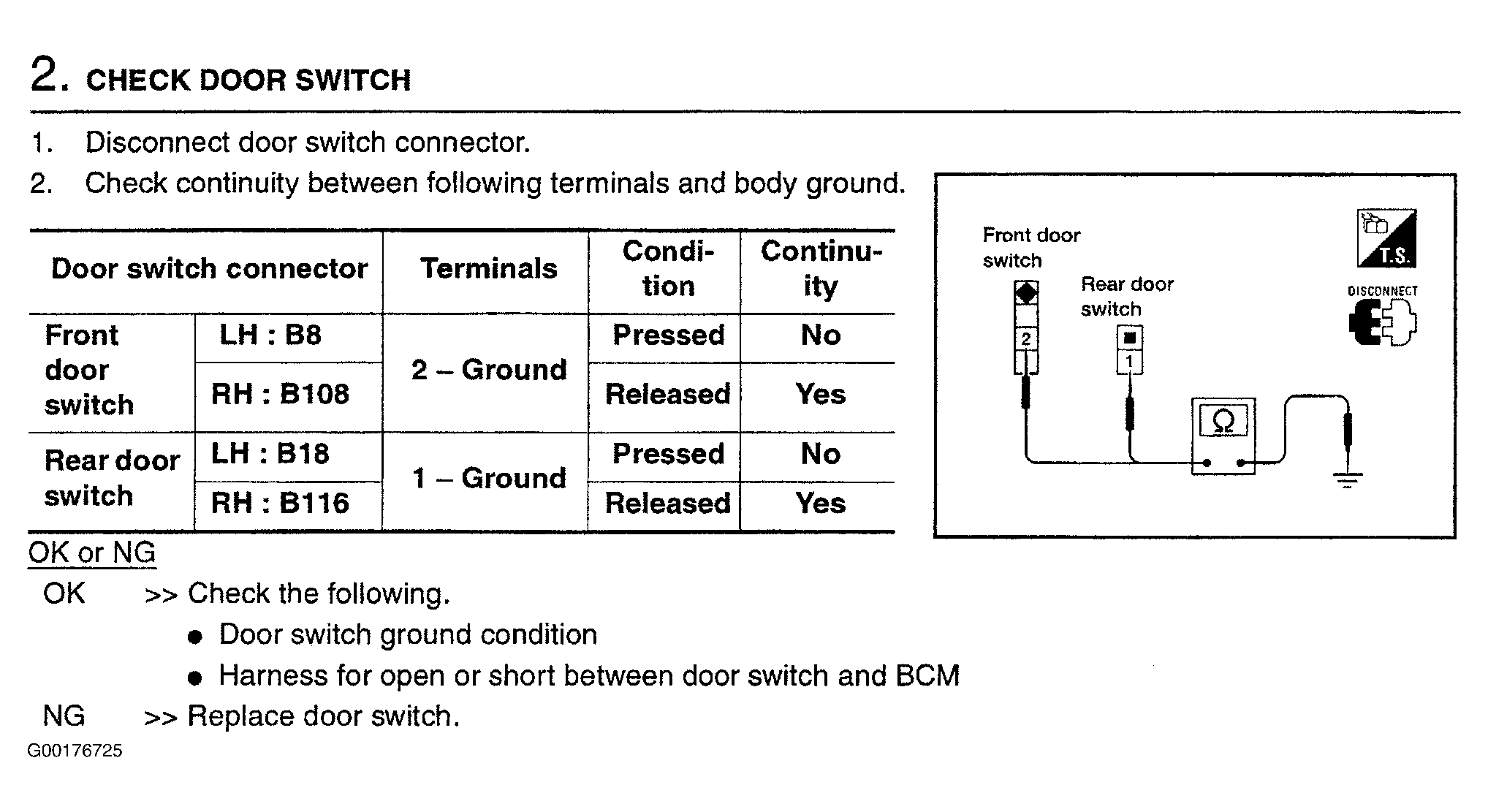

Fig 2: Identifying Door Switch Check, Step 2
G00176725Courtesy of NISSAN MOTOR CO., U.S.A.
