Removal & Installation

WARNING: This page is about a different car, the 2002 Nissan Altima. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery cable.
Remove 2 bolts and position coolant reservoir aside. See Fig 1 .
Remove Intelligent Power Distribution Module (IPDM) upper cover.
Remove IPDM harness cover. See Fig 2 .
Release 2 clips and pull IPDM up from case. See Fig 3 .
Disconnect IPDM connectors and then remove it.
To install, reverse removal procedure.

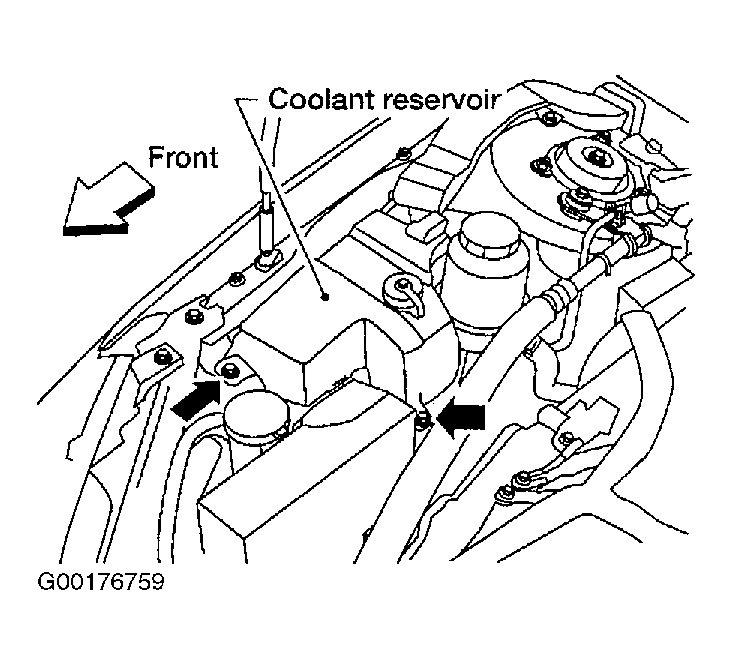

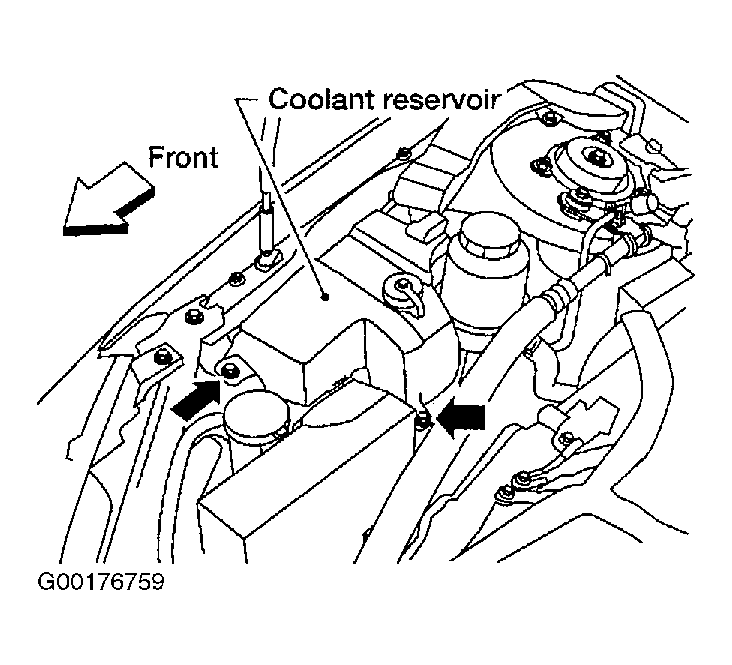

Fig 1: Removing Coolant Reservoir

Courtesy of NISSAN MOTOR CO., U.S.A.

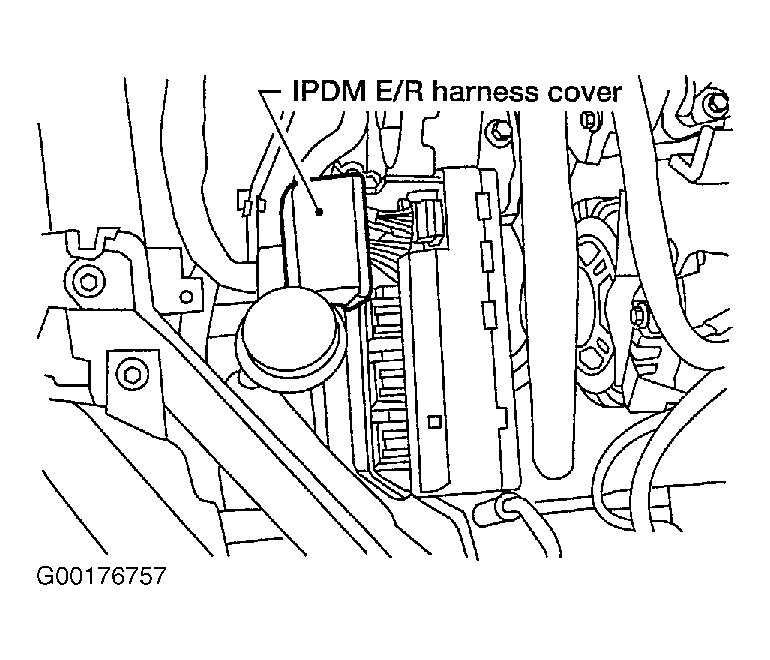

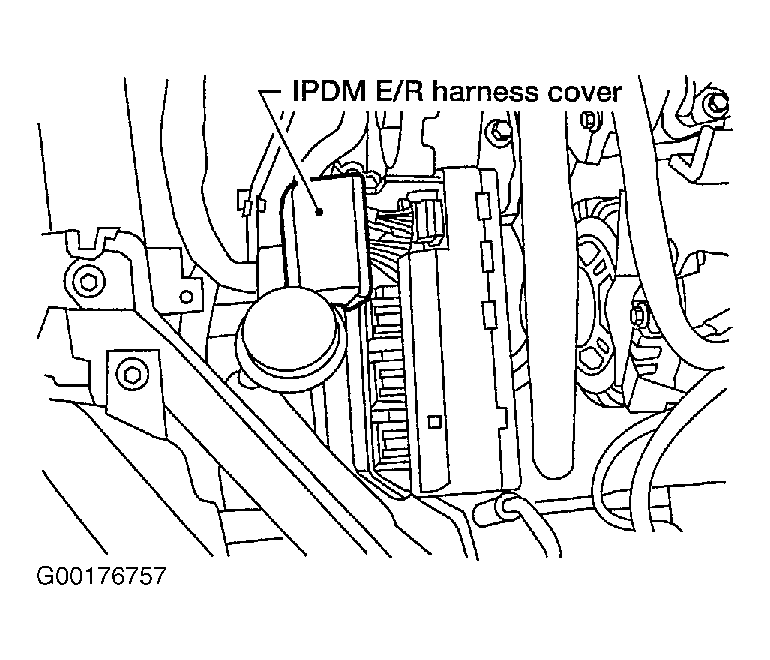

Fig 2: Removing Intelligent Power Distribution Module Harness Cover

Courtesy of NISSAN MOTOR CO., U.S.A.

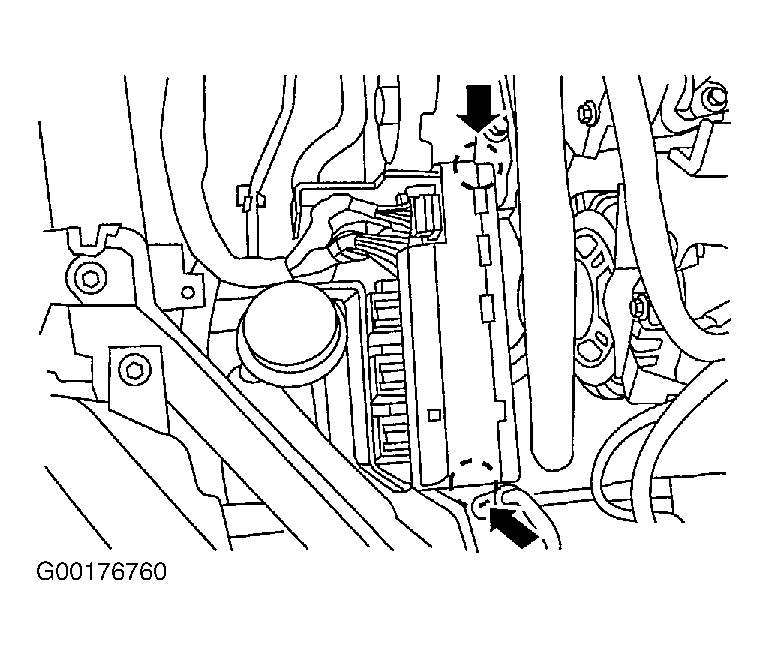

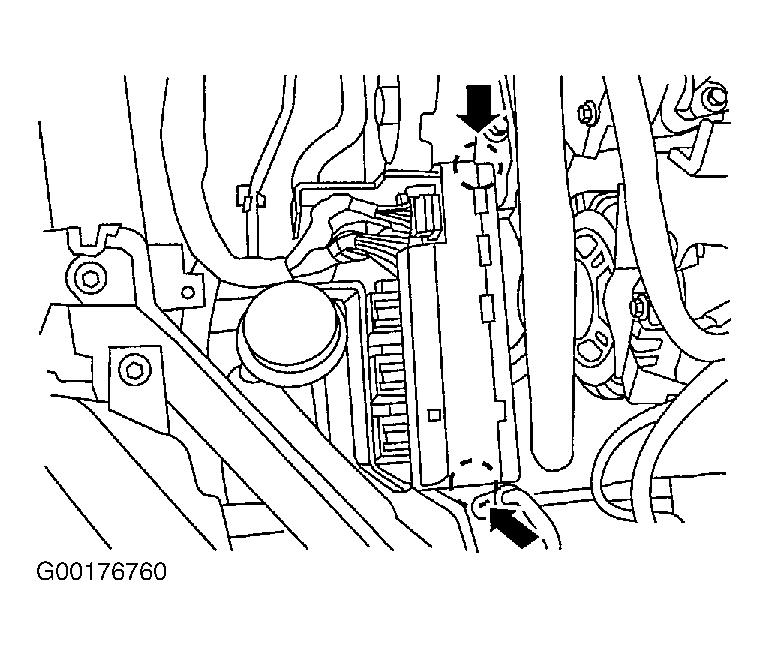

Fig 3: Identifying Intelligent Power Distribution Module Retaining Clips

Courtesy of NISSAN MOTOR CO., U.S.A.
