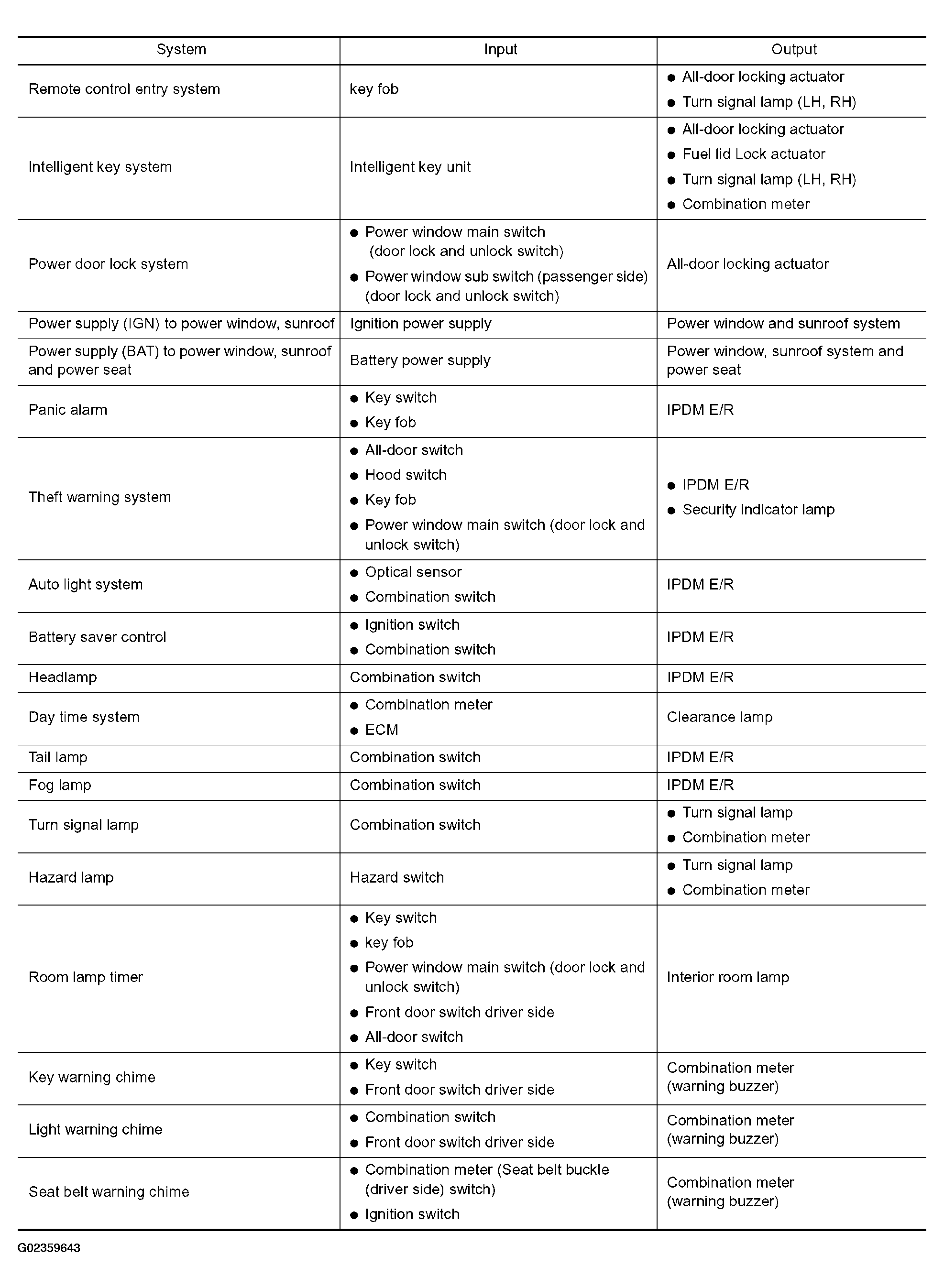

Fig 1: Major Components And Control System Description Chart (1 Of 2)
Courtesy of NISSAN MOTOR CO., U.S.A.

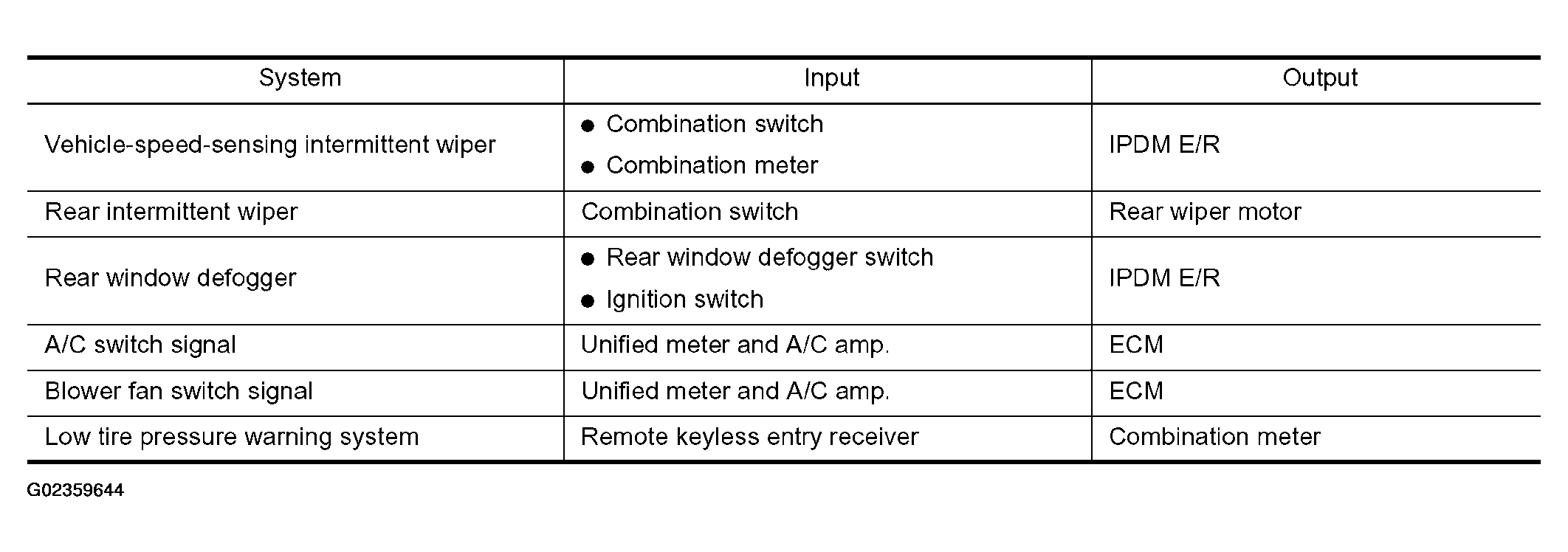

Fig 2: Major Components And Control System Description Chart (2 Of 2)
