Stop Lamp Switch

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Turn ignition switch OFF.
Disconnect stop lamp switch harness connector.

Check continuity between stop lamp switch terminals 1 and 2 under the following conditions.

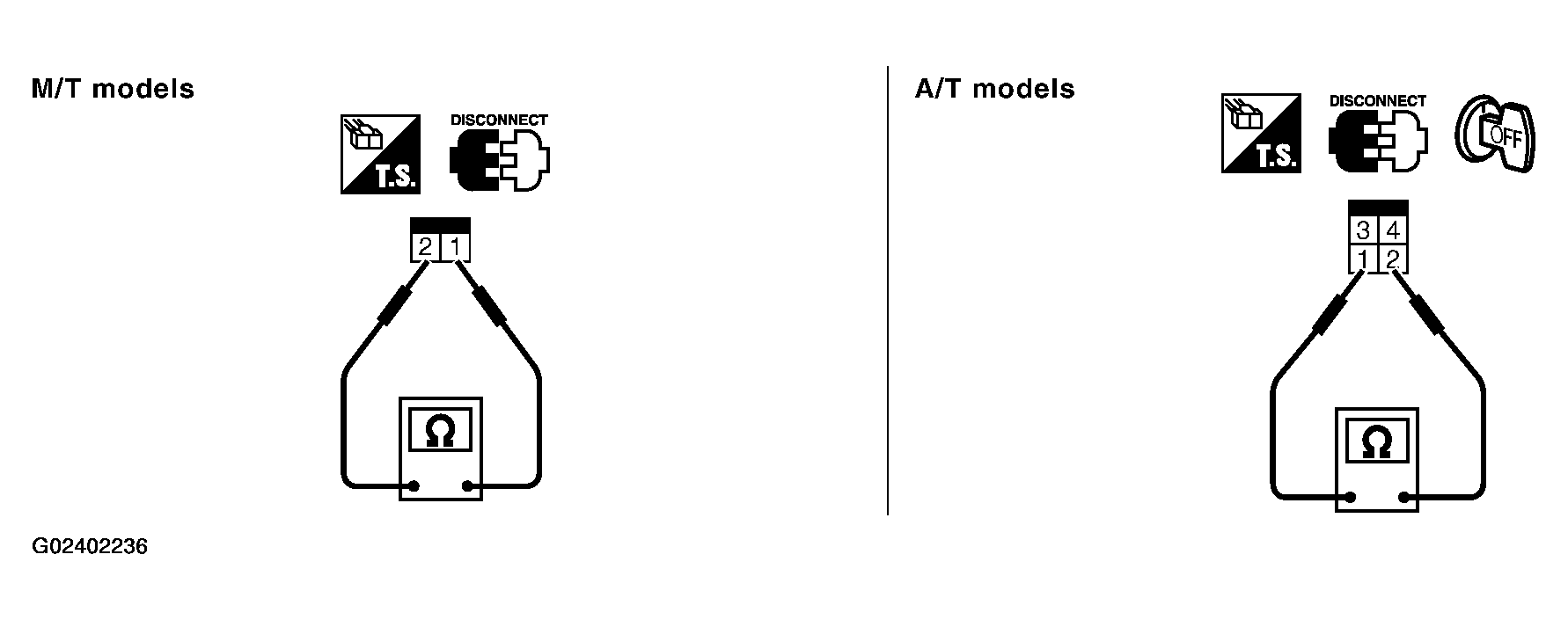

Fig 1: M/T & A/T Models Stop Lamp Switch Connector Terminals 1 & 2 Continuity Test

Courtesy of NISSAN MOTOR CO., U.S.A.

CONTINUITY SPECIFICATION

Condition	Continuity
Brake pedal: Fully released	Should not exist
Brake pedal: Slightly depressed	Should exist.

If NG, adjust stop lamp switch installation, refer to "BRAKE PEDAL ", and perform step 3 again.
