A/T Models

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
  1. CHECK OVERALL FUNCTION-I

    With CONSULT-II

    1. Turn ignition switch ON.
    2. Select "BRAKE SW1" in "DATA MONITOR" mode with CONSULT-II.
    3. Check "BRAKE SW1" indication under the following conditions.

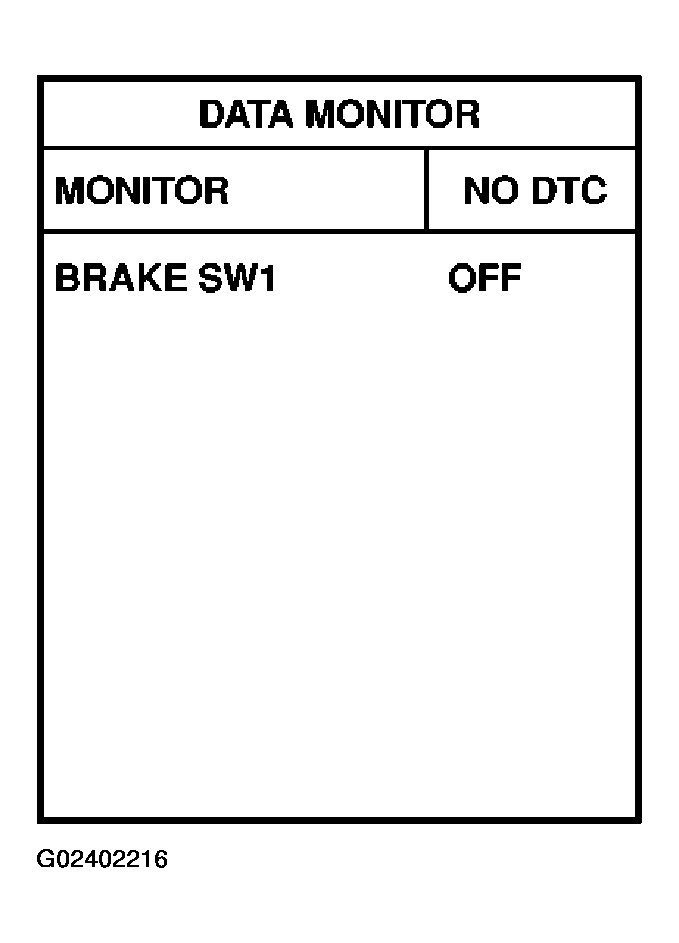

      Fig 1: Scan Tool Display "Data Monitor"
      G02402216Courtesy of NISSAN MOTOR CO., U.S.A.
      INDICATION SPECIFICATION

      CONDITION INDICATION
      Brake pedal: Slightly depressed OFF
      Brake pedal: Fully released ON

    Without CONSULT-II

    1. Turn ignition switch ON.
    2. Check voltage between ECM terminal 108 and ground under the following conditions.

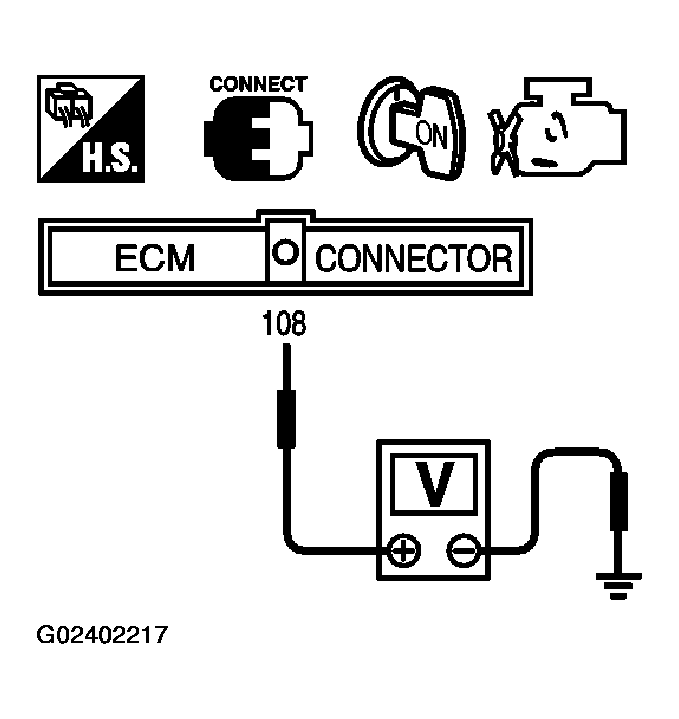

      Fig 2: ECM Terminal 108 & Ground Voltage Test
      G02402217Courtesy of NISSAN MOTOR CO., U.S.A.
      VOLTAGE SPECIFICATION

      CONDITION VOLTAGE
      Brake pedal: Slightly depressed Approximately 0V
      Brake pedal: Fully released Battery voltage

    OK or NG

    • OK: GO TO 2.
    • NG: GO TO  3.
  2. CHECK OVERALL FUNCTION-II

    With CONSULT-II

    1. Select "BRAKE SW2" in "DATA MONITOR" mode with CONSULT-II.
    2. Check "BRAKE SW2" indication in "DATA MONITOR" mode.
      DISPLAY INDICATION

      CONDITION INDICATION
      Brake pedal: Fully released OFF
      Brake pedal: Slightly depressed ON

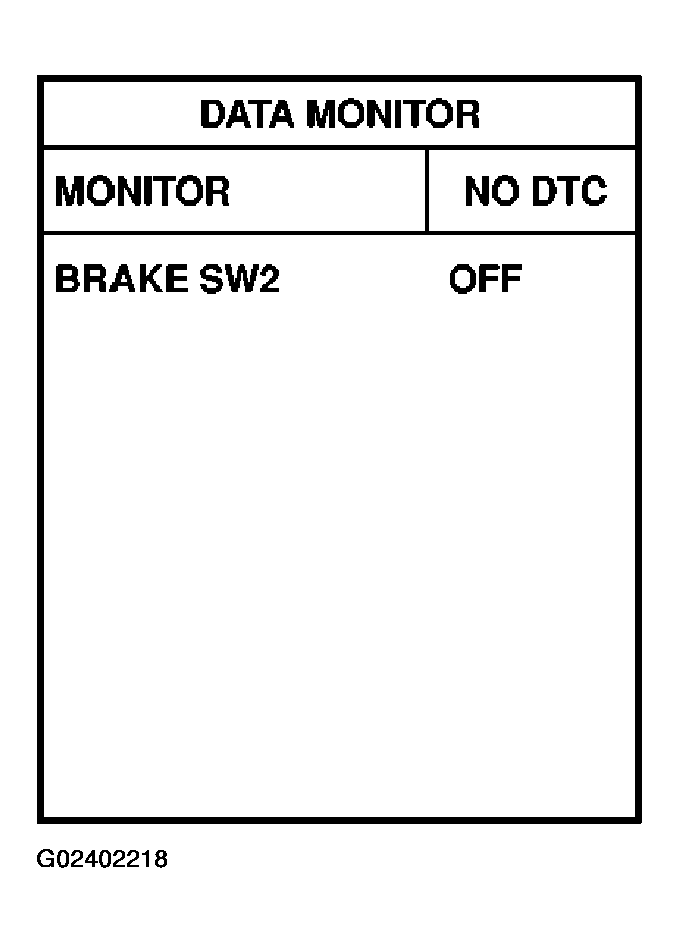

      Fig 3: Scan Tool Display "Data Monitor"
      G02402218Courtesy of NISSAN MOTOR CO., U.S.A.

    Without CONSULT-II

    Check voltage between ECM terminal 101 and ground under the following conditions.

    VOLTAGE SPECIFICATION

    CONDITION VOLTAGE
    Brake pedal: Fully released Approximately 0V
    Brake pedal:Slightly depressed Battery voltage

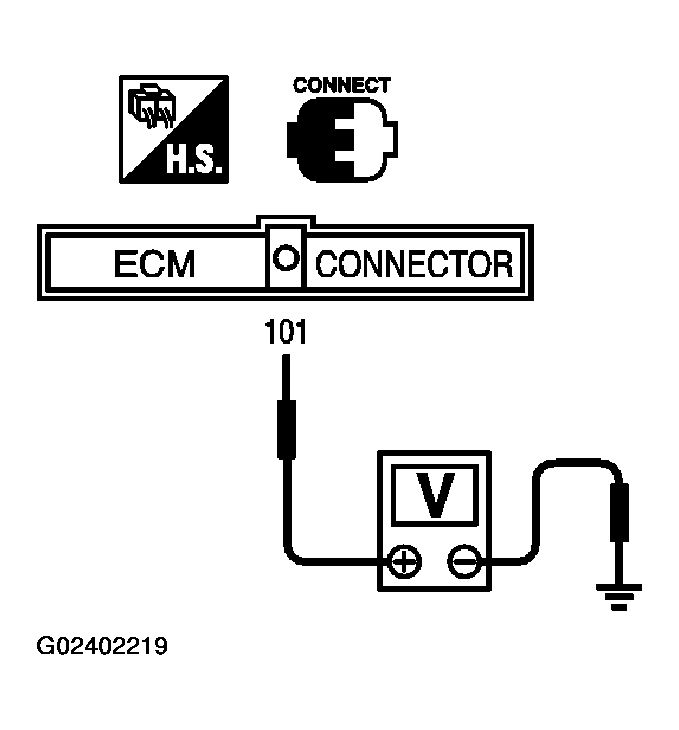

    Fig 4: ECM Terminal 101 & Ground Voltage Test
    G02402219Courtesy of NISSAN MOTOR CO., U.S.A.

    OK or NG

    • OK: INSPECTION END
    • NG: GO TO  8.
  3. CHECK ASCD BRAKE SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect ASCD brake switch harness connector.
    3. Turn ignition switch ON.

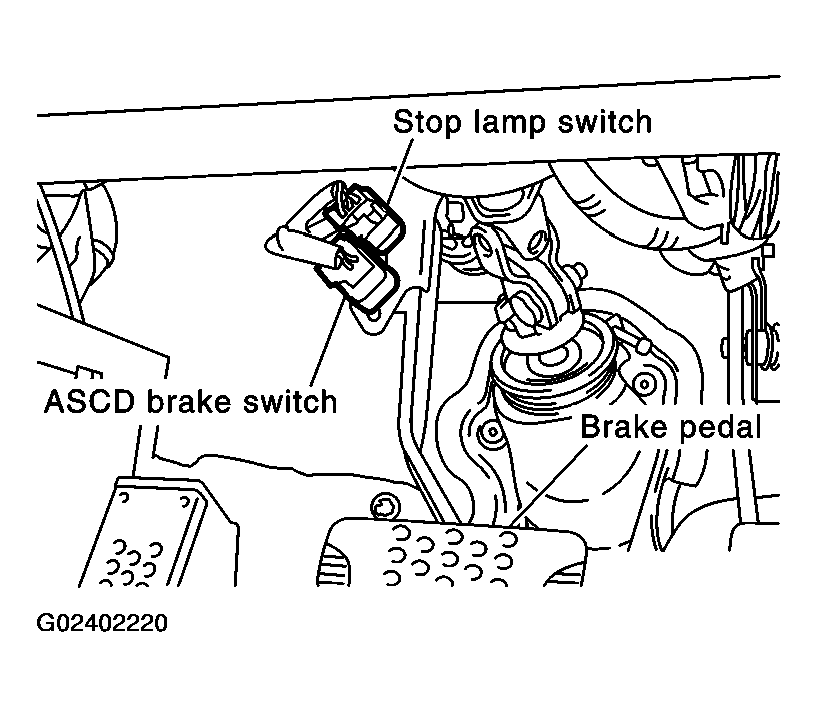

      Fig 5: ASCD Brake Switch Harness Connector
      G02402220Courtesy of NISSAN MOTOR CO., U.S.A.
    4. Check voltage between ASCD brake switch terminal 1 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  5.
    • NG: GO TO 4.

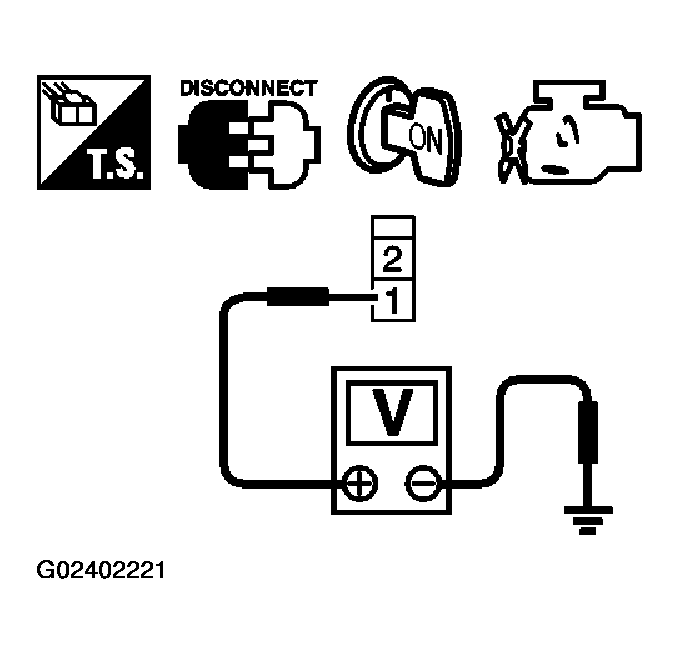

    Fig 6: ASCD Brake Switch Terminal 1 & Ground Voltage Test
    G02402221Courtesy of NISSAN MOTOR CO., U.S.A.
  4. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E101
    • 10A fuse
    • Harness for open or short between ASCD brake switch and fuse
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  5. CHECK ASCD BRAKE SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Turn ignition switch OFF.
    2. Disconnect ECM harness connector.
    3. Check harness continuity between ECM terminal 108 and ASCD brake switch terminal 2. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    4. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  7.
    • NG: GO TO 6.
  6. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E108, M15
    • Harness connectors M72, F102
    • Harness for open or short between ECM and ASCD brake switch
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  7. CHECK ASCD BRAKE SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    • OK: GO TO  13.
    • NG: Replace ASCD brake switch.
  8. CHECK STOP LAMP SWITCH POWER SUPPLY CIRCUIT
    1. Turn ignition switch OFF.
    2. Disconnect stop lamp switch harness connector.

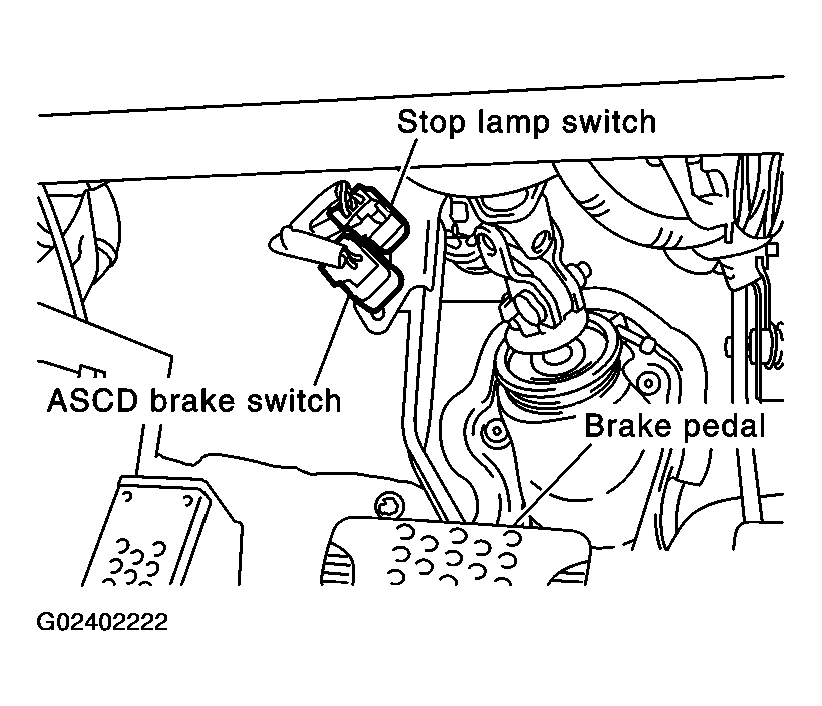

      Fig 7: Stop Lamp Switch Harness Connector
      G02402222Courtesy of NISSAN MOTOR CO., U.S.A.
    3. Check voltage between stop lamp switch terminal 1 and ground with CONSULT-II or tester.
      • Voltage: Battery voltage

    OK or NG

    • OK: GO TO  10.
    • NG: GO TO 9.

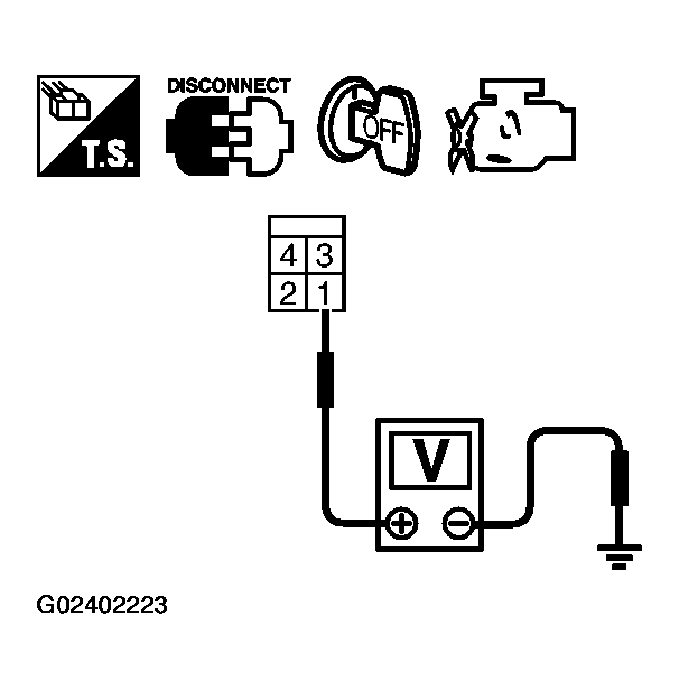

    Fig 8: Stop Lamp Switch Terminal 1 & Ground Voltage Test
    G02402223Courtesy of NISSAN MOTOR CO., U.S.A.
  9. DETECT MALFUNCTIONING PART

    Check the following.

    • Fuse block (J/B) connector E101
    • 10A fuse
    • Harness for open or short between stop lamp switch and fuse
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  10. CHECK STOP LAMP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT
    1. Disconnect ECM harness connector.
    2. Check harness continuity between ECM terminal 101 and stop lamp switch terminal 2. Refer to WIRING DIAGRAM .
      • Continuity should exist.
    3. Also check harness for short to ground and short to power.

    OK or NG

    • OK: GO TO  12.
    • NG: GO TO 11.
  11. DETECT MALFUNCTIONING PART

    Check the following.

    • Harness connectors E108, M15
    • Harness connectors M72, F102
    • Harness for open or short between ECM and stop lamp switch
      • : Repair open circuit or short to ground or short to power in harness or connectors.
  12. CHECK STOP LAMP SWITCH

    Refer to "COMPONENT INSPECTION "

    OK or NG

    • OK: GO TO 13.
    • NG: Replace stop lamp switch.
  13. CHECK INTERMITTENT INCIDENT

    Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".

    • : INSPECTION END
