Diagnostic Procedure
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- CHECK OVERALL FUNCTION

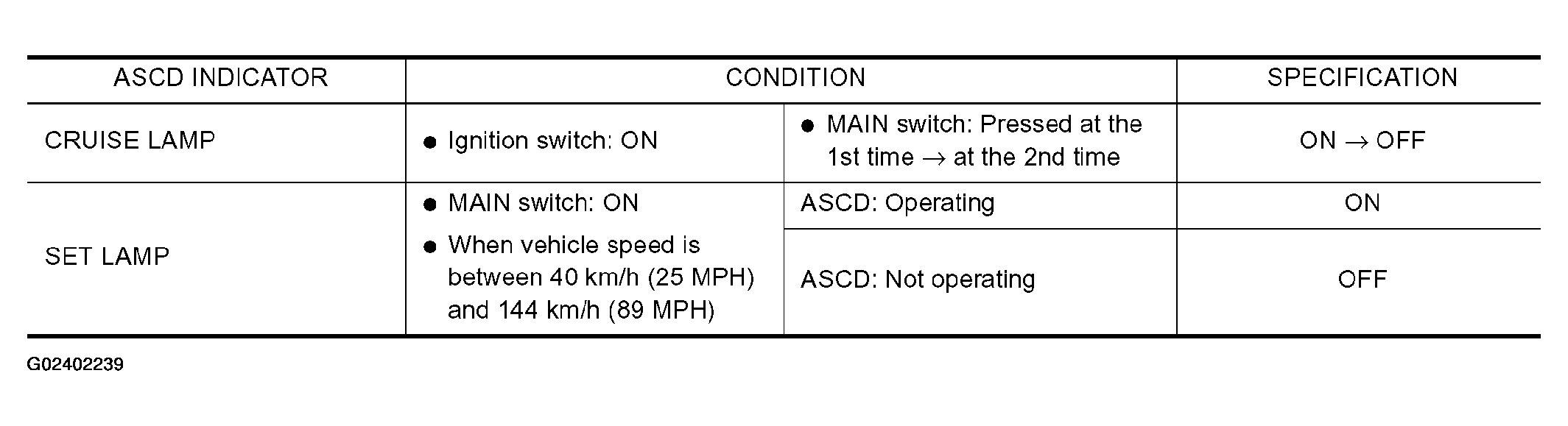

Check ASCD indicator under the following conditions.
OK or NG
- OK: INSPECTION END
- NG: GO TO 2.
- CHECK DTC
Check that DTC U1000 or U1001 is not displayed.
OK or NG
- OK: GO TO 3.
- NG: Perform trouble diagnoses for DTC U1000, U1001. Refer to "DTC U1000, U1001 CAN COMMUNICATION LINE ".
- CHECK DTC WITH "UNIFIED METER AND A/C AMP."
Refer to "SELF-DIAGNOSTIC RESULTS ".
OK or NG
- OK: GO TO 4.
- NG: Go to "DTC [B2202] METER COMMUNICATION CIRCUIT ".
- CHECK INTERMITTENT INCIDENT
Refer to "TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT ".
- : INSPECTION END
