Component Description

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: If DTC P0125 is displayed with P0117 or P0118, first perform the trouble diagnosis for DTC P0117 or P0118. Refer to DTC P0117, P0118 ECT SENSOR .

The engine coolant temperature sensor is used to detect the engine coolant temperature. The sensor modifies a voltage signal from the ECM. The modified signal returns to the ECM as the engine coolant temperature input. The sensor uses a thermistor which is sensitive to the change in temperature. The electrical resistance of the thermistor decreases as temperature increases.

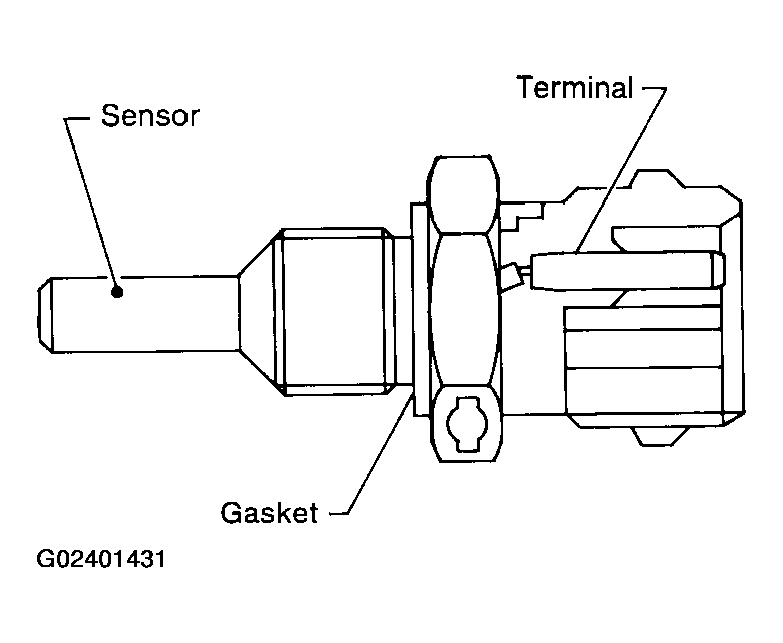

Fig 1: ECT Sensor Components

Courtesy of NISSAN MOTOR CO., U.S.A.

< Reference data>

ENGINE COOLANT TEMPERATURE VOLTAGE AND RESISTANCE

Engine coolant temperature °C (°F)

Voltage⁽¹⁾ V

Resistance kΩ

-10 (14)

4.4

7.0-11.4

20 (68)

3.5

2.1-2.9

50 (122)

2.2

0.68-1.00

90 (194)

0.9

0.236-0.260

⁽¹⁾	This data is reference values and is measured between ECM terminal 73 (Engine coolant temperature sensor) and ground.

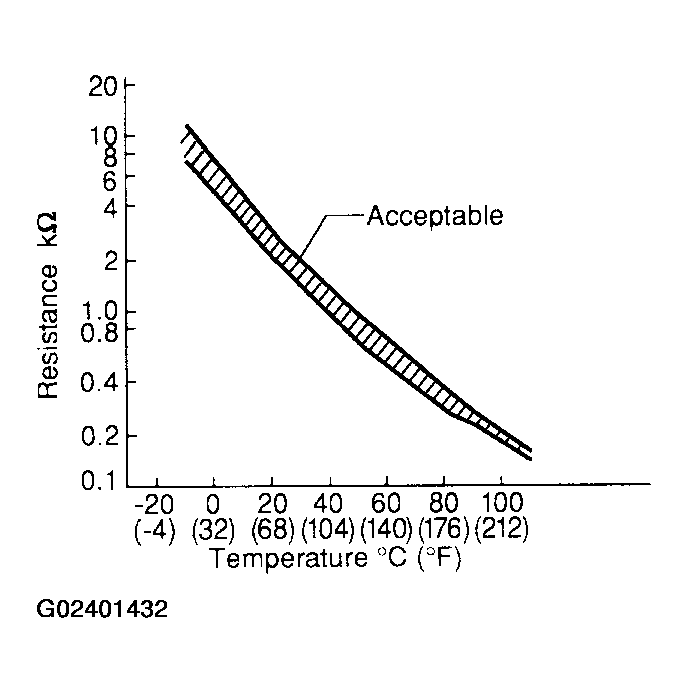

Fig 2: Resistance & Temperature Graph

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION: Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in damage to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
