Accelerator Pedal Position Sensor

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

Reconnect all harness connectors disconnected.
Turn ignition switch ON.
Check voltage between ECM terminals 106 (APP sensor 1 signal), 98 (APP sensor 2 signal) and ground under the following conditions.

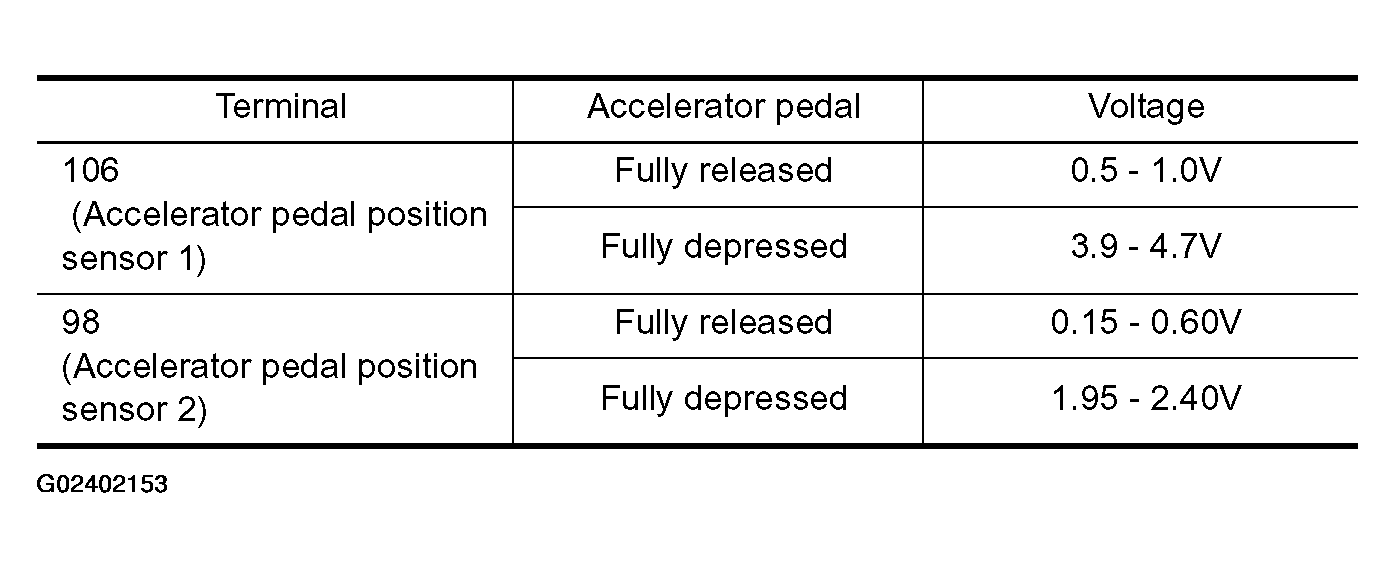

Fig 1: ECM Terminals 106 (APP Sensor 1 Signal), 98 (APP Sensor 2 Signal) & Ground Voltage Specification Table
Courtesy of NISSAN MOTOR CO., U.S.A.

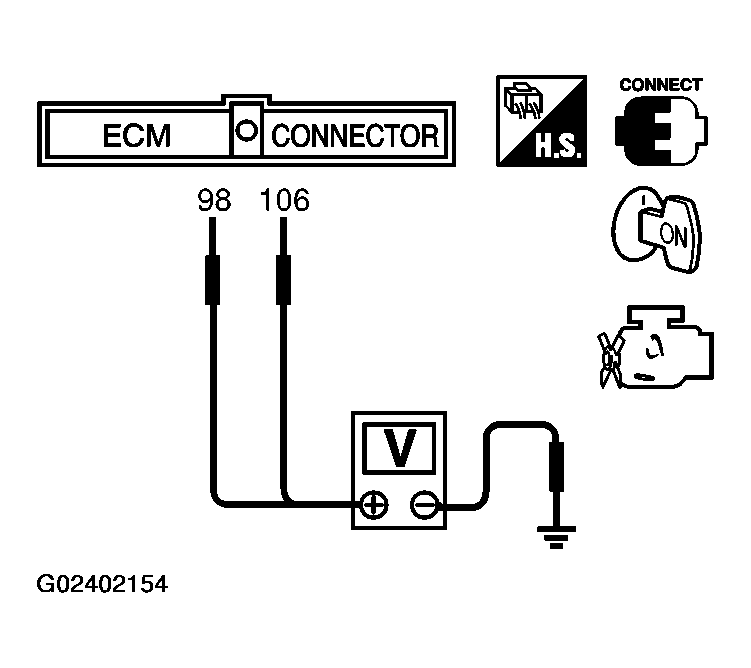

Fig 2: ECM Terminals 106 (APP Sensor 1 Signal), 98 (APP Sensor 2 Signal) & Ground Voltage Test
Courtesy of NISSAN MOTOR CO., U.S.A.
If NG, replace accelerator pedal assembly and go to next step.
Perform "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".
Perform "THROTTLE VALVE CLOSED POSITION LEARNING ".
Perform "IDLE AIR VOLUME LEARNING ".
