Component Inspection: Condenser
WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect condenser harness connector.

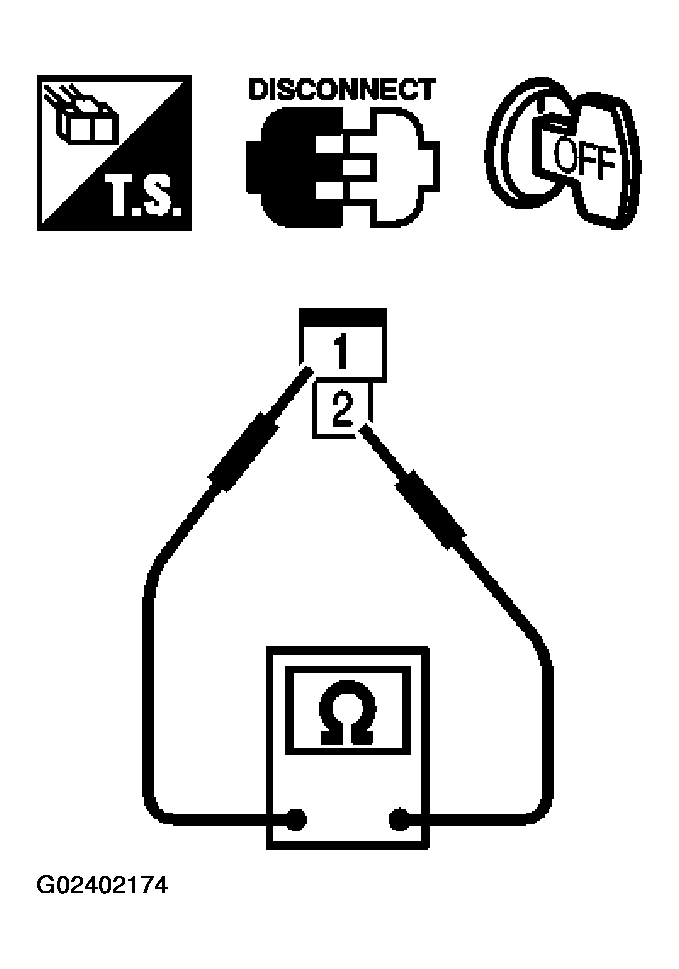

- Check resistance between condenser terminals 1 and 2.
- Resistance: Above 1 MΩ [at 25°C (77°F)]
Courtesy of NISSAN MOTOR CO., U.S.A.
