Component Locations

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

For component locations, see Fig 1.

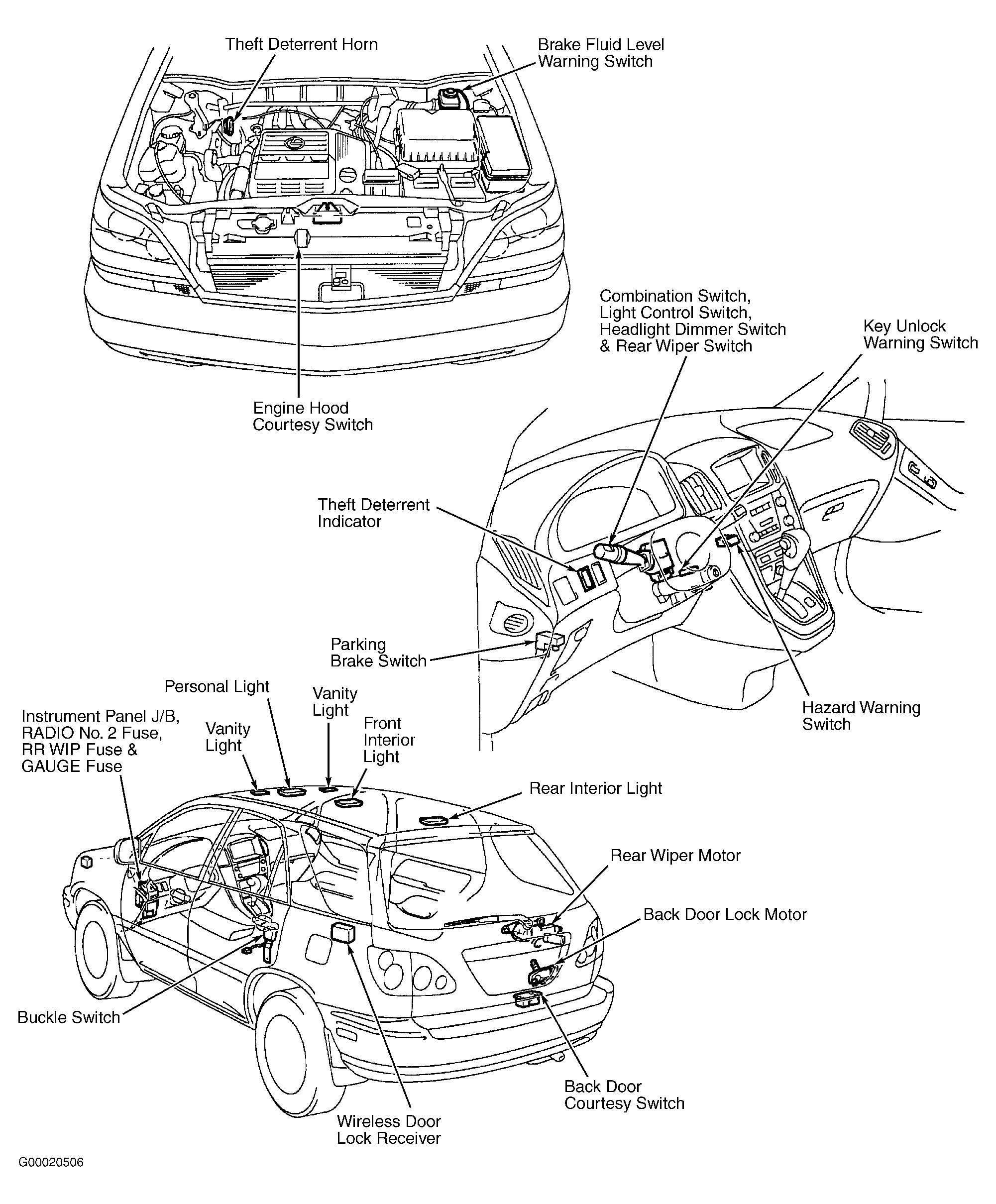

Fig 1: Identifying Body Control Components
G00020506Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002
