Connector Identification

WARNING: This page is about a different car, the 2002 Lexus RX 300. However, it is still accessible from the selected car via links, so may be relevant.

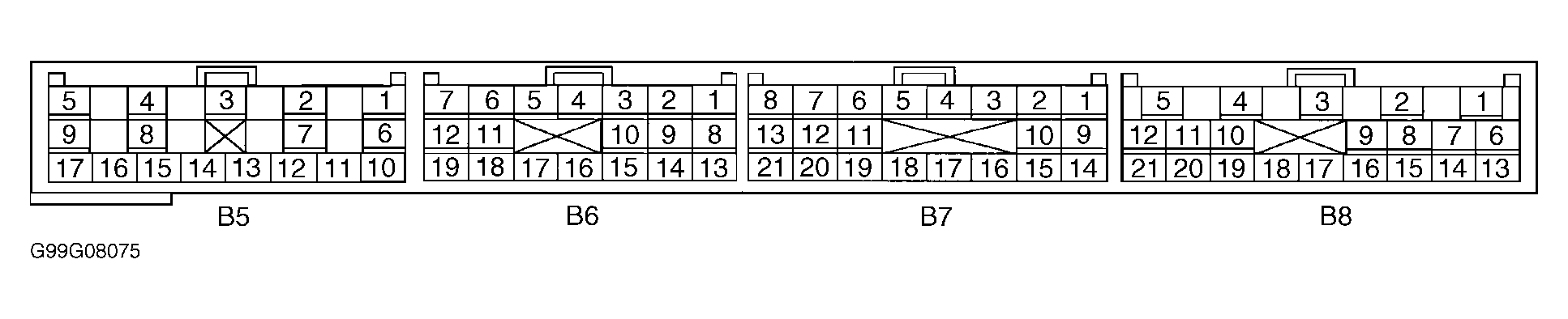

Fig 1: Identifying Body Control ECU Connector Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

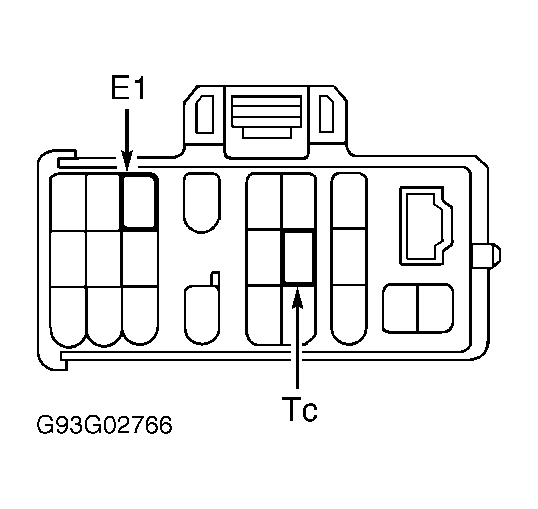

Fig 2: Identifying DLC1 Terminals

Courtesy of © TOYOTA, LICENSE AGREEMENT TMS1002

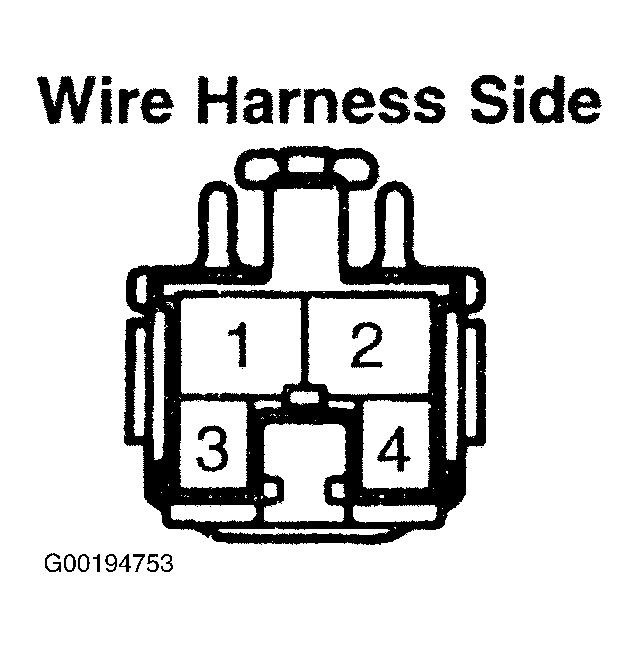

Fig 3: Identifying Stop Light Switch Connector Terminals

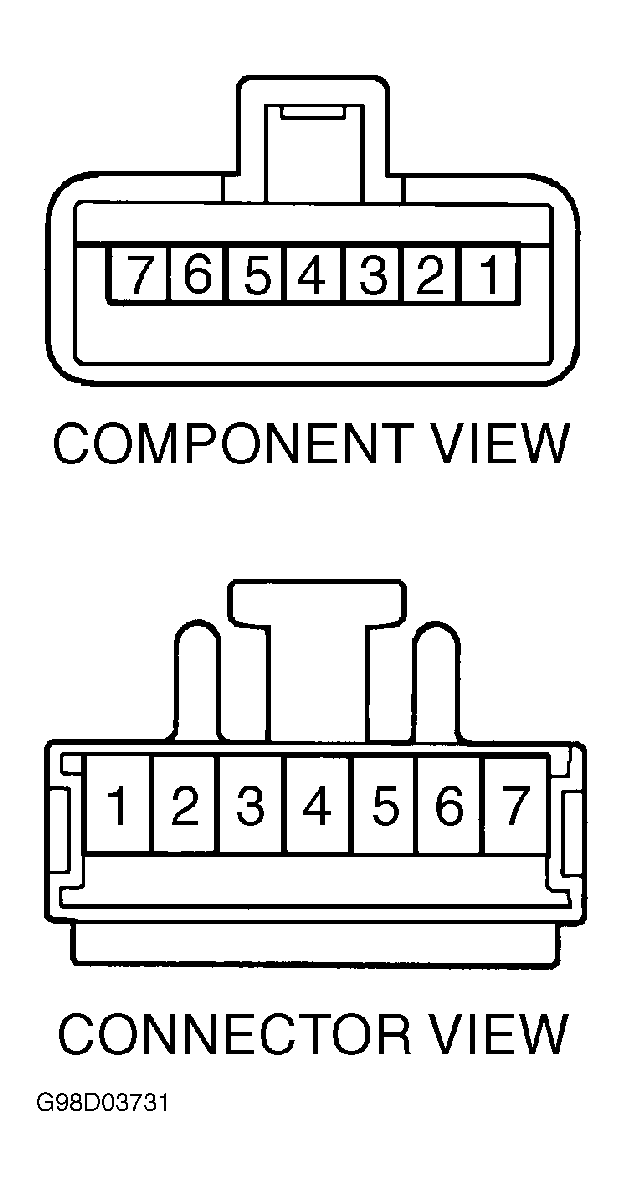

Fig 4: Identifying Wireless Door Lock Tuner Connector Terminals
