CONSULT-II Function (BCM): Notes

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

CONSULT-II can display each diagnostic item using the diagnostic test mode shown following.

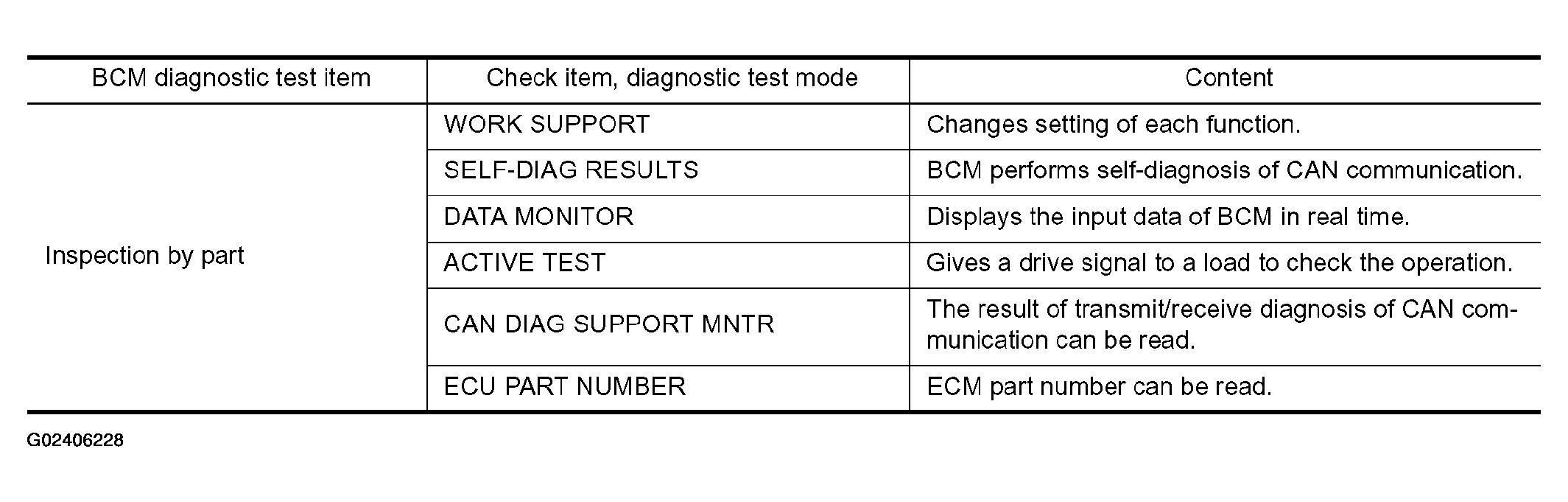

Fig 1: Consult-II Function (BCM) Chart
G02406228Courtesy of NISSAN MOTOR CO., U.S.A.
