Systems Controlled By BCM Directly

WARNING: This page is about a different car, the 2005 Nissan 350Z. However, it is still accessible from the selected car via links, so may be relevant.

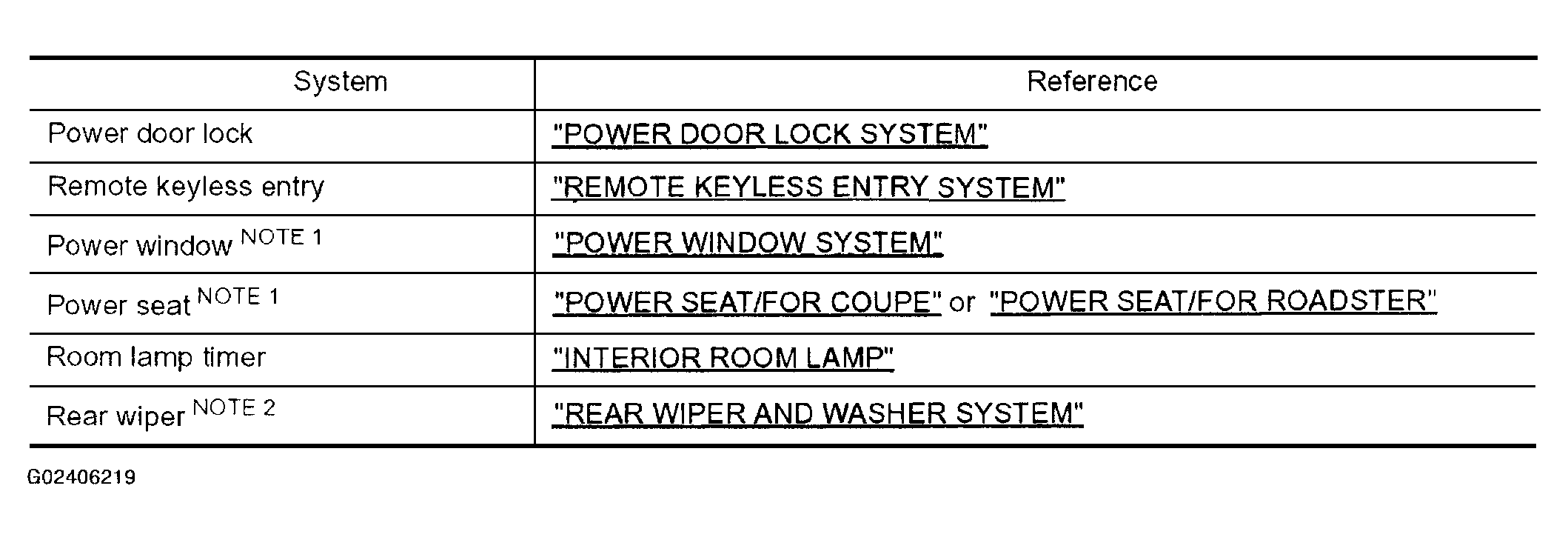

Fig 1: BCM Controlled System Reference Chart
G02406219Courtesy of NISSAN MOTOR CO., U.S.A.
NOTE:
  1. Power supply only. No system control.
  2. Coupe models
