Input/Output Signal Chart

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

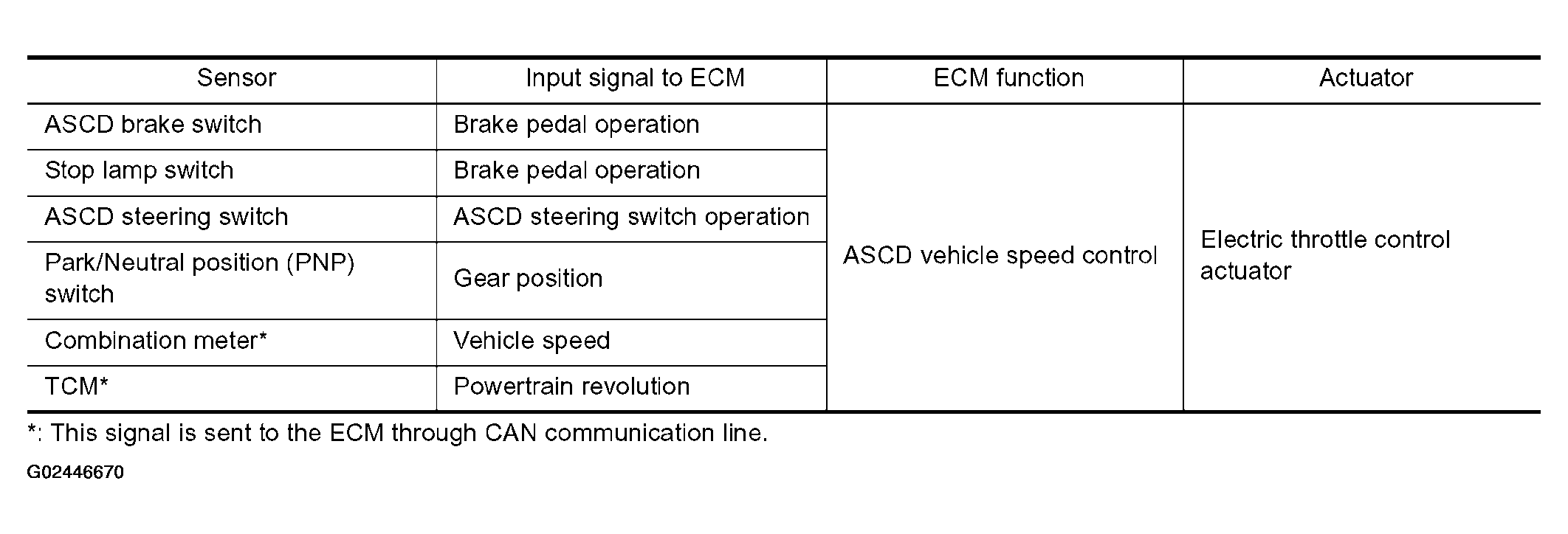

Fig 1: Automatic Speed Control Device - Input/Output Signal Chart
G02446670Courtesy of NISSAN MOTOR CO., U.S.A.
