Method A

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
  1. Slide the harness protector off ignition coil No. 1 to clear the wires.
  2. Attach timing light to the ignition coil No. 1 wires as shown in the figure.

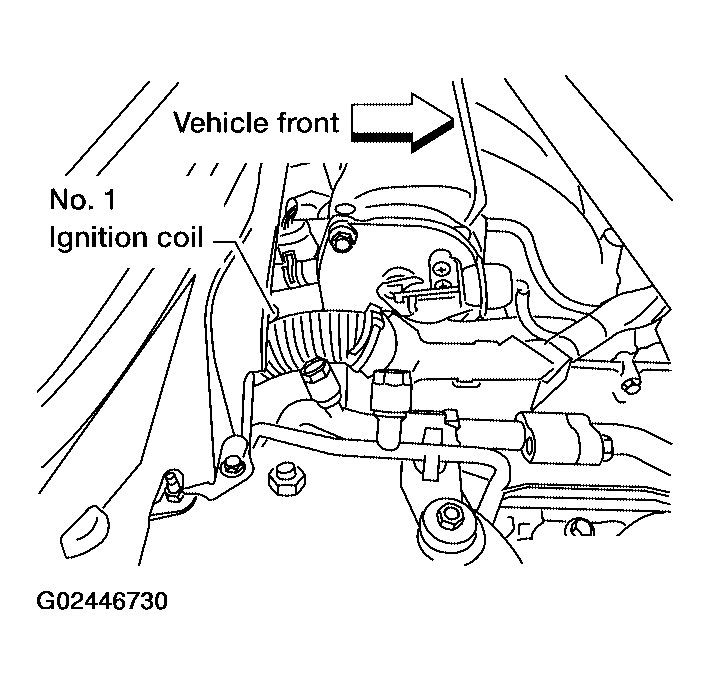

    Fig 1: Identifying No. 1 Ignition Coil
    G02446730Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Check ignition timing.

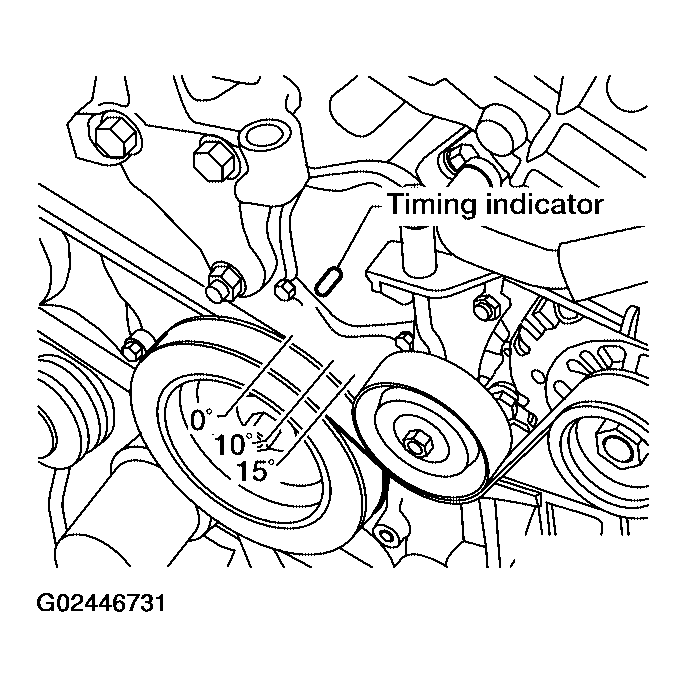

    Fig 2: Checking Ignition Timing
    G02446731Courtesy of NISSAN MOTOR CO., U.S.A.
