Component Inspection: Condenser
WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
- Turn ignition switch OFF.
- Disconnect condenser harness connector.

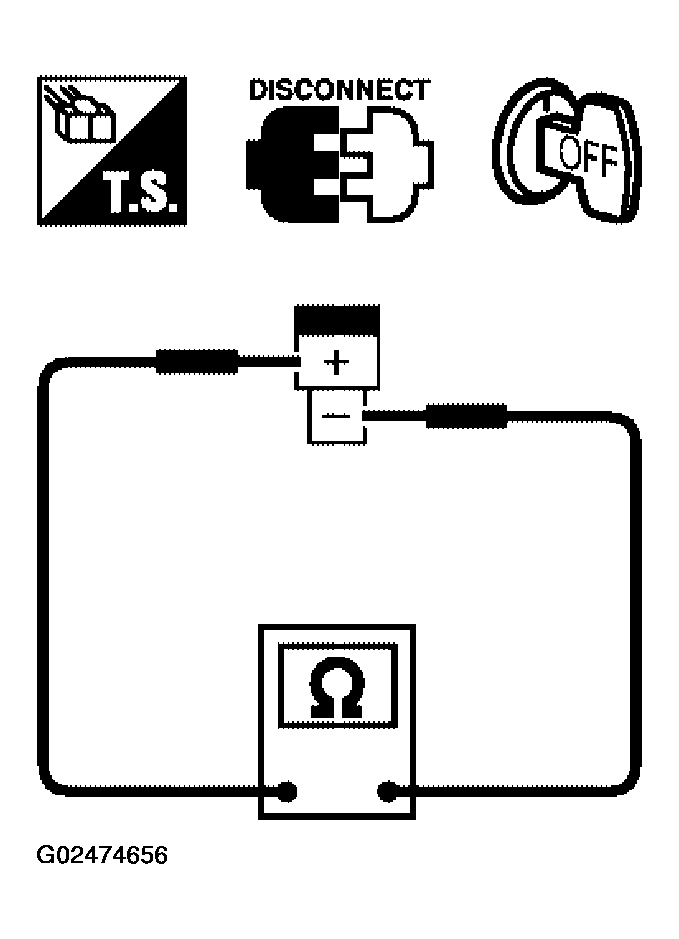

- Check resistance between condenser terminals + and -.
Courtesy of NISSAN MOTOR CO., U.S.A. RESISTANCE CONDITION TABLE
| Resistance |
Above 1 MΩ at 25°C (77°F) |
