Write Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.

With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

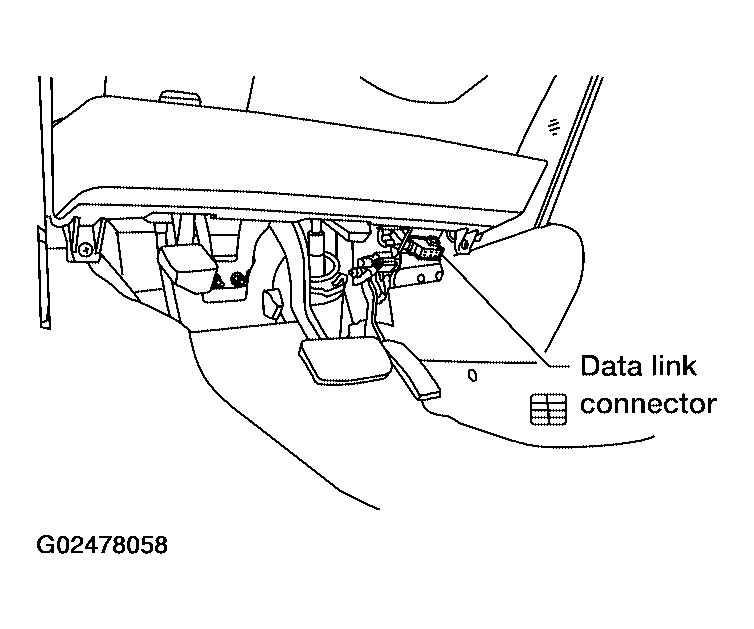

Fig 1: Locating Data Link Connector
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "START (NISSAN BASED VHCL)".

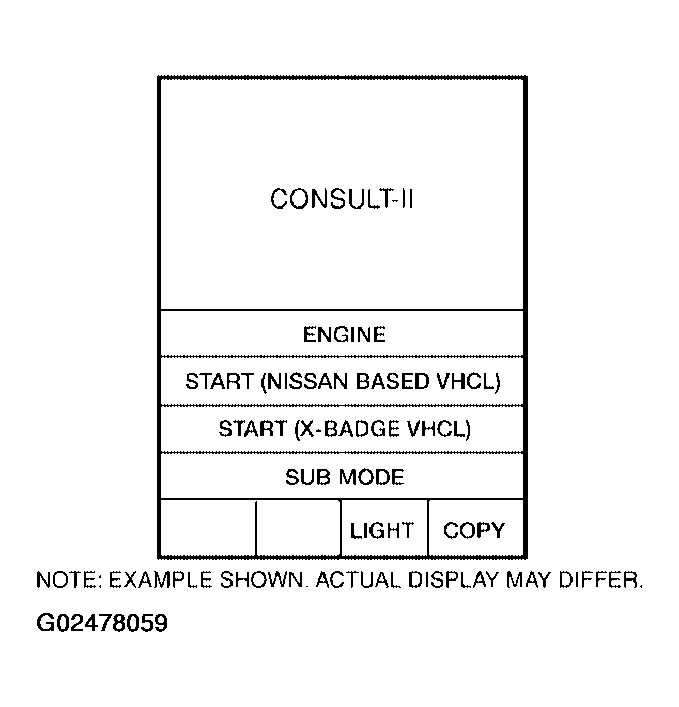

Fig 2: CONSULT-II Display - START (NISSAN BASED VHCL)
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT SYSTEM" screen. If "BCM" is not indicated, go to LAN Section to check data link connector (DLC) circuit.

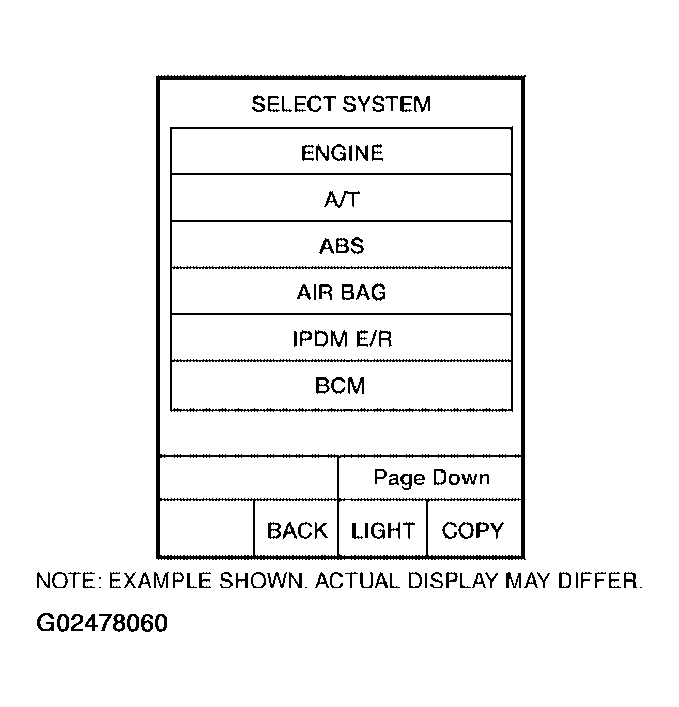

Fig 3: CONSULT-II Display - SELECT SYSTEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "BCM" on "SELECT TEST ITEM" screen.

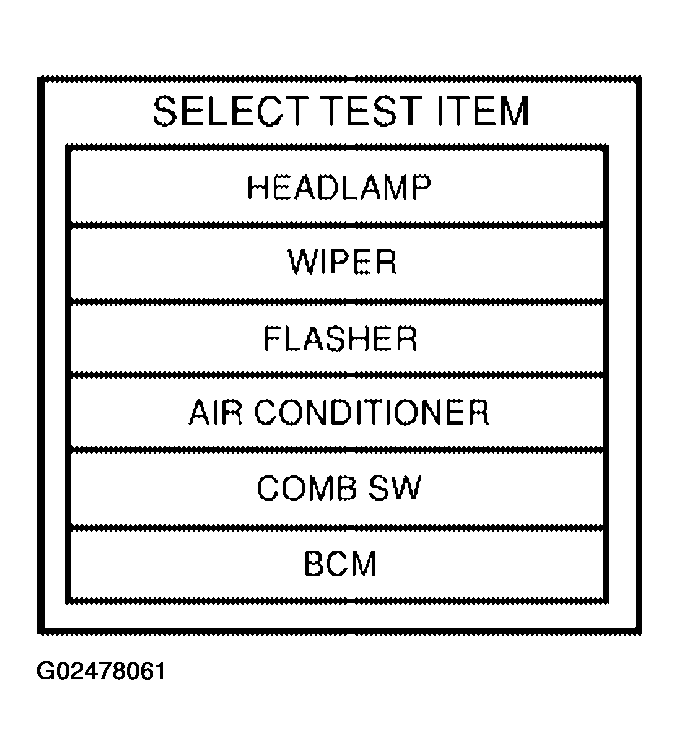

Fig 4: CONSULT-II Display - SELECT TEST ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

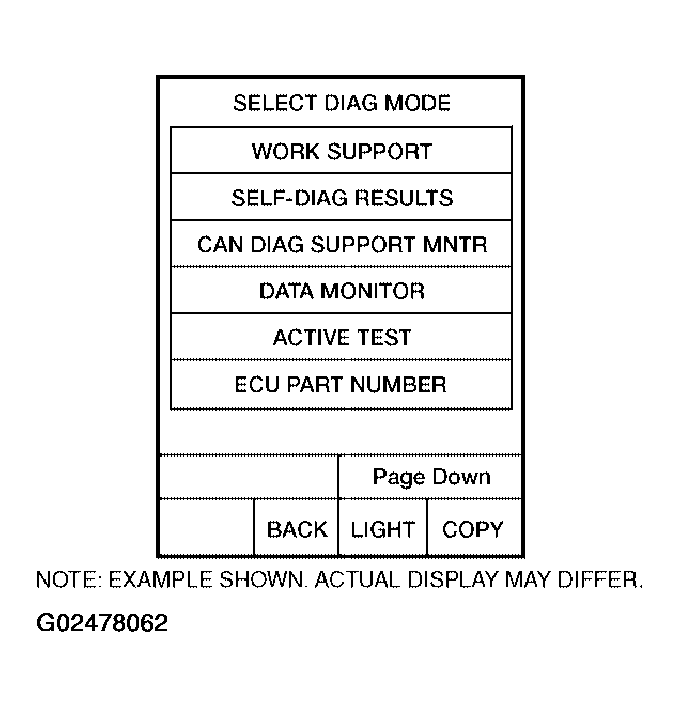

Fig 5: CONSULT-II Display - SELECT DIAG MODE
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "V42" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .

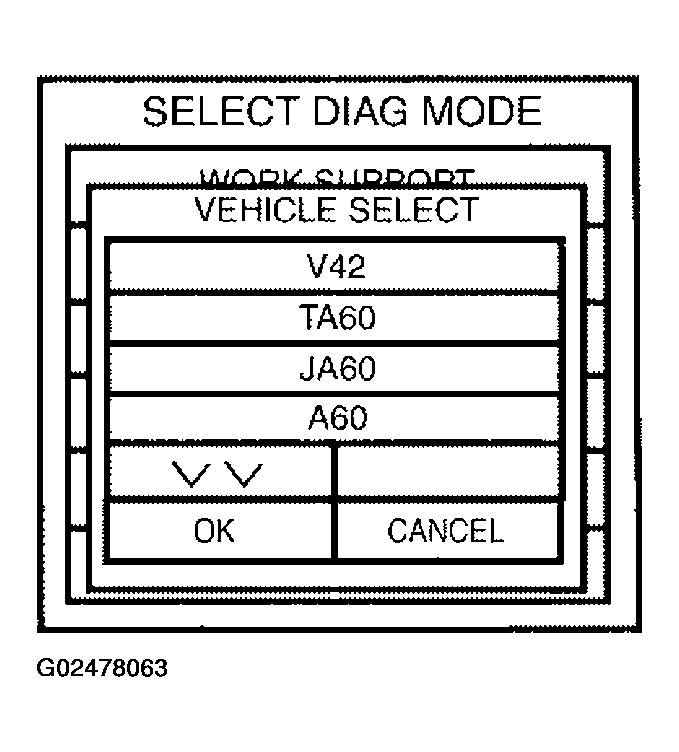

Fig 6: CONSULT-II Display - VEHICLE SELECT
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WRITE CONFIGURATION" on "SELECT CONFIG ITEM" screen.

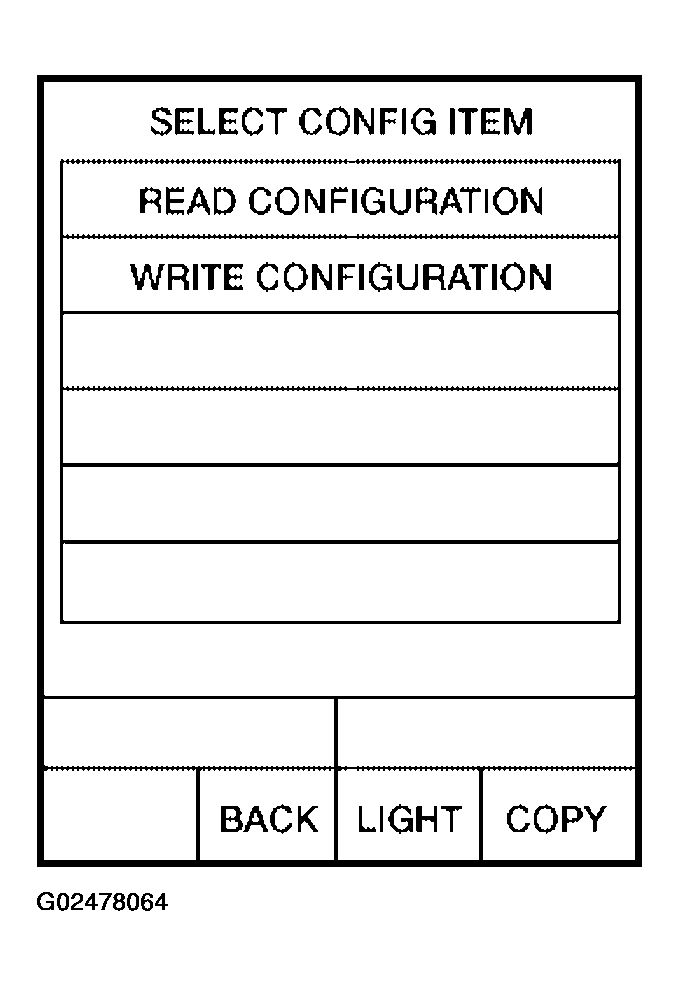

Fig 7: CONSULT-II Display - SELECT CONFIG ITEM
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OK"
For canceling, touch "CANCEL"

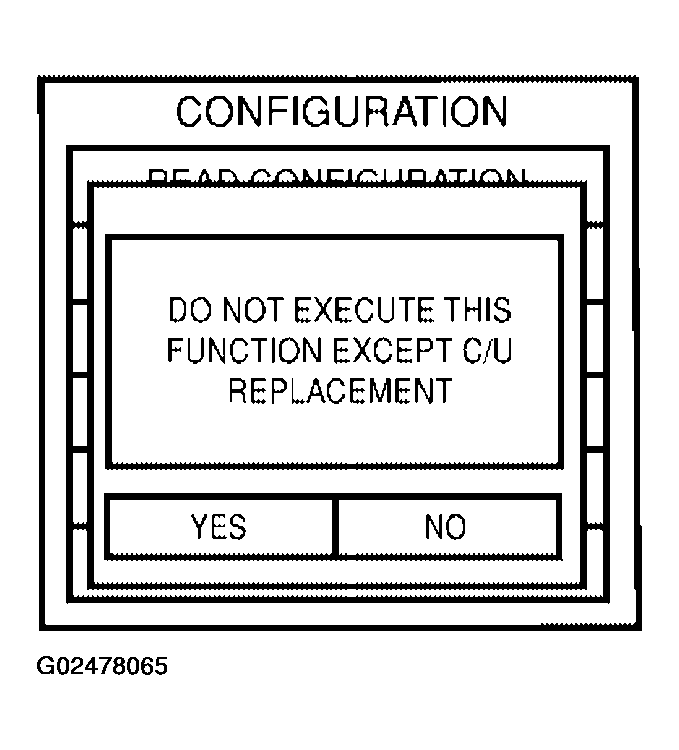

Fig 8: CONSULT-II Display - CANCEL
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "WITH" or "WITHOUT" on "WRITE CONFIGURATION" screen based on the following ITEM LIST.

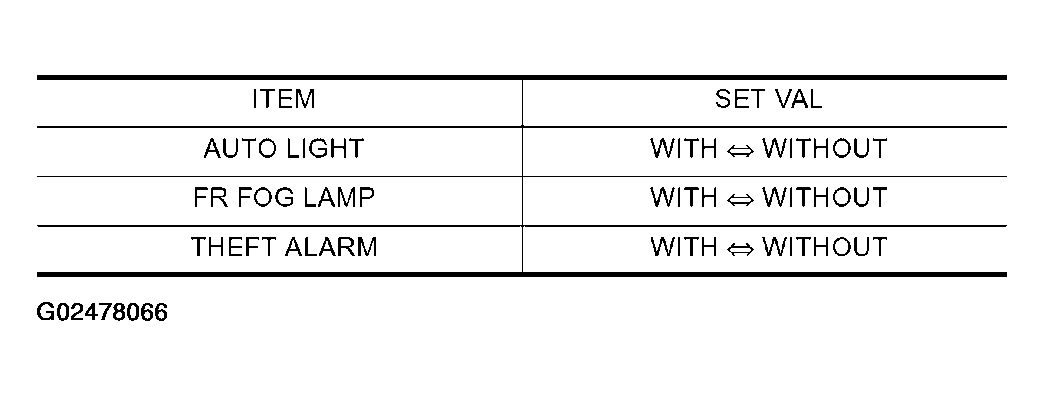

Fig 9: WRITE CONFIGURATION Item List Chart
Courtesy of NISSAN MOTOR CO., U.S.A.

NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to MODEL VARIATION .
Touch "CHNG SETTING" on "WRITE CONFIGURATION" screen.
CAUTION:

Make sure to touch "CHNG SETTING" even if the indicated configuration of brand-new BCM is same as the desirable configuration.

If not, configuration which is set automatically by selecting vehicle model cannot be memorized.
Touch "OK" on "WRITE CONFIGURATION" screen.
If "CANCEL" is touched, it will return to previous screen.

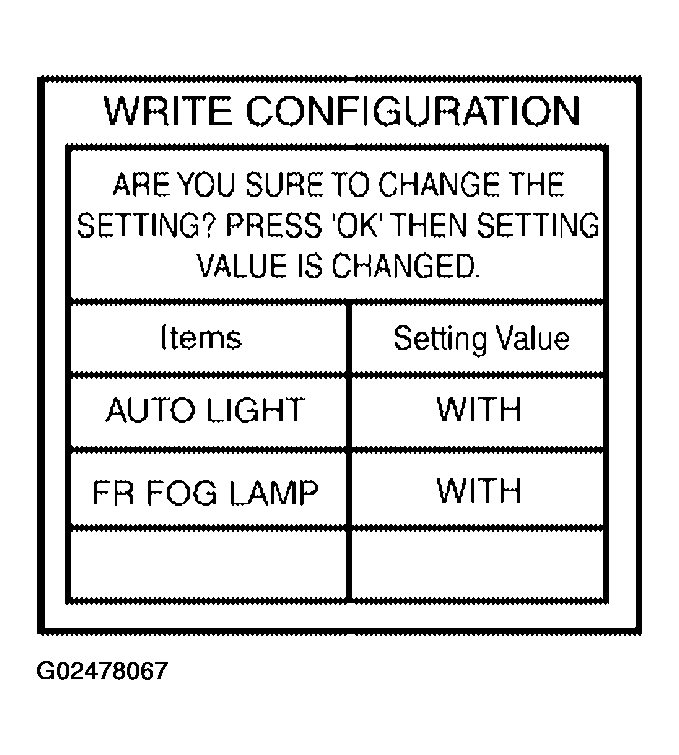

Fig 10: CONSULT-II Display - WRITE CONFIGURATION
Courtesy of NISSAN MOTOR CO., U.S.A.
Wait until the next screen during setting.

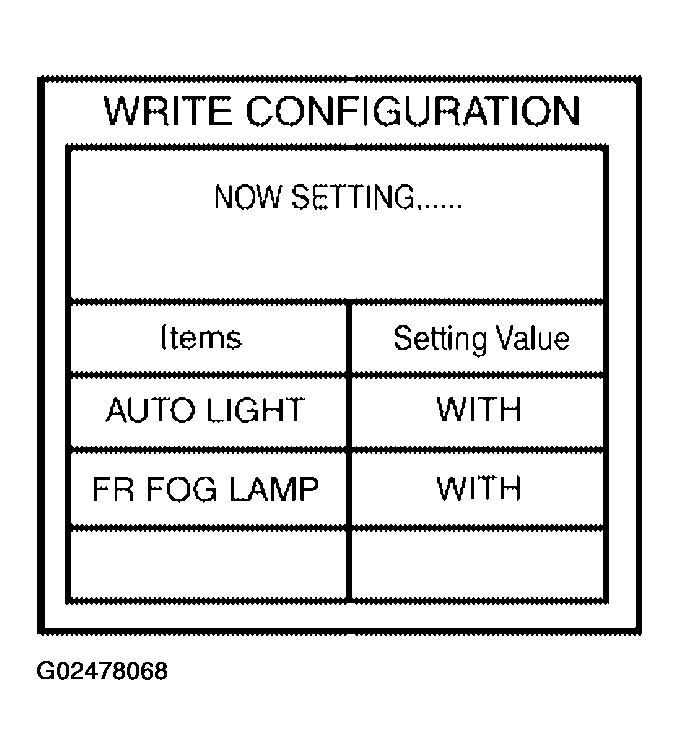

Fig 11: CONSULT-II Display - WRITE CONFIGURATION
Courtesy of NISSAN MOTOR CO., U.S.A.
WRITE CONFIGURATION results are printed out automatically. Check "WRITE CONFIGURATION" is correctly executed by comparing sheet automatically printed out with desirable configuration.

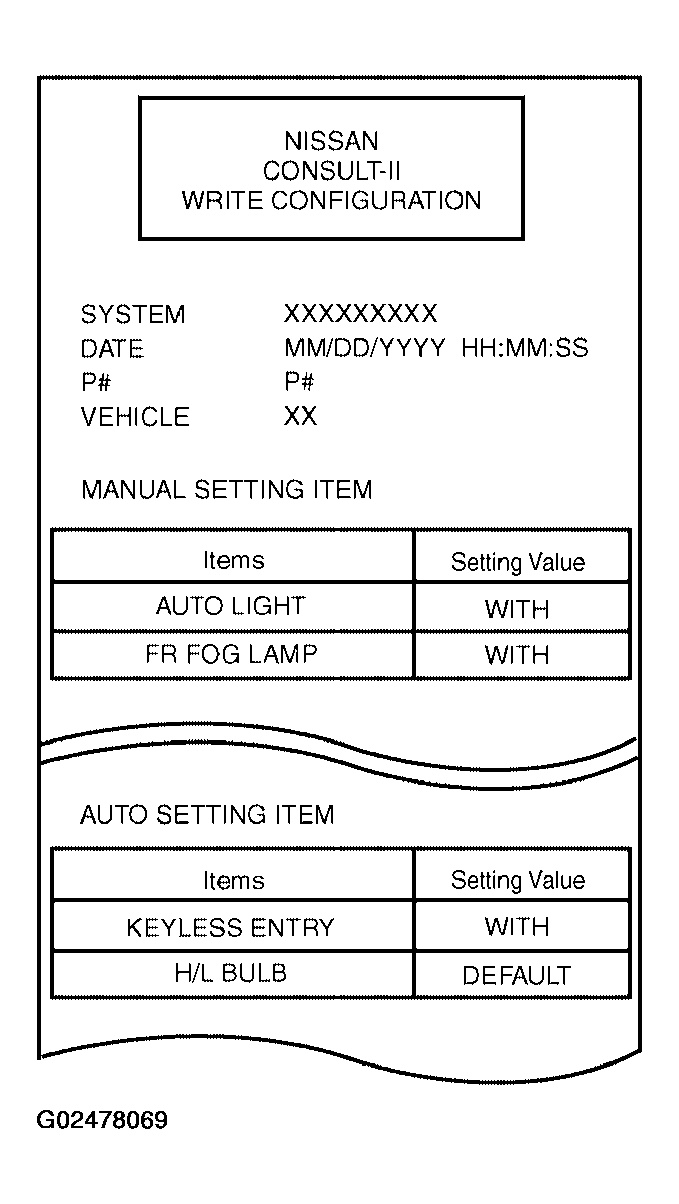

Fig 12: CONSULT-II Display - WRITE CONFIGURATION
Courtesy of NISSAN MOTOR CO., U.S.A.
Touch "OK" on "WRITE CONFIGURATION" screen. WRITE CONFIGURATION is completed.

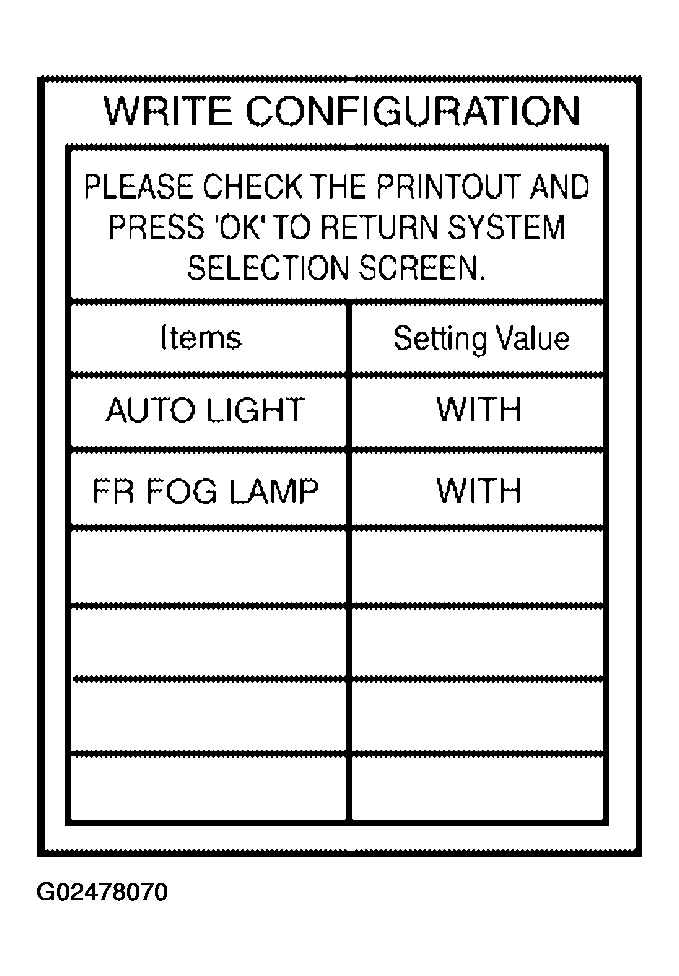

Fig 13: CONSULT-II Display - WRITE CONFIGURATION
Courtesy of NISSAN MOTOR CO., U.S.A.
