Inspection After Installation

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.

Check that the accelerator pedal moves smoothly within the specified range.
Accelerator pedal - total pedal applied stroke "A": 48 mm (1.89 in)
Check that the accelerator pedal smoothly returns to the original position.
Perform an electrical inspection of the accelerator pedal position sensor. Refer to "DTC P2138 APP SENSOR ".
CAUTION: When the harness connector of the accelerator pedal position sensor is disconnected, perform "Accelerator Pedal Released Position Learning". Refer to "ACCELERATOR PEDAL RELEASED POSITION LEARNING ".

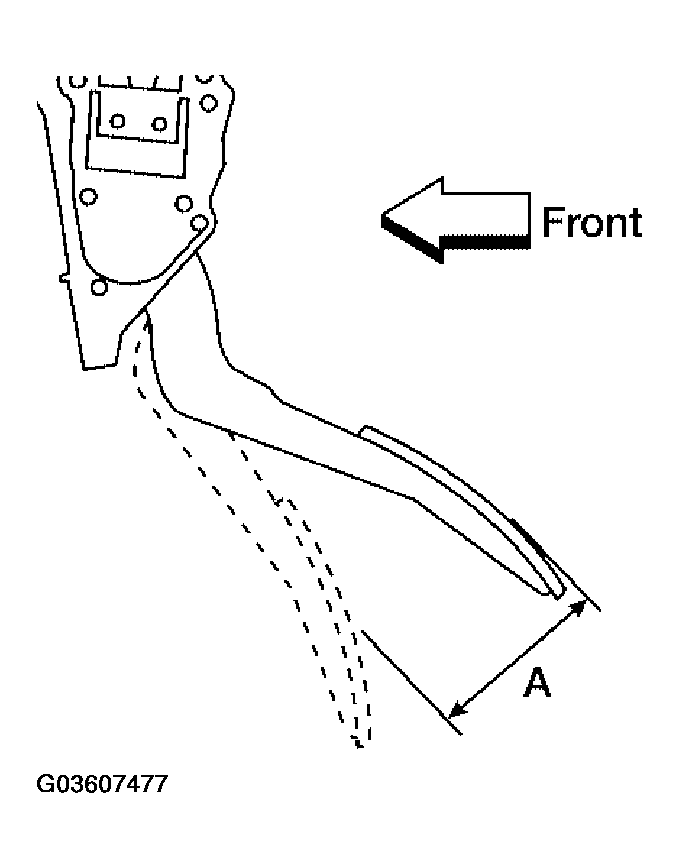

Fig 1: Checking Accelerator Pedal Stroke Length
Courtesy of NISSAN MOTOR CO., U.S.A.
