Removal And Installation: Removal

WARNING: This page is about a different car, the 2005 Nissan Xterra. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal.
  2. Disconnect the accelerator position sensor electrical connector.
    1. Pull the connector lock back to unlock the connector from the accelerator pedal position sensor as shown.
    2. Pull up on the connector to disconnect it from the accelerator pedal position sensor as shown.
  3. Remove the two upper and one lower accelerator pedal nuts.
  4. Remove the accelerator pedal assembly.
    CAUTION:
    • Do not disassemble the accelerator pedal assembly.
    • Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
    • Avoid damage from dropping the accelerator pedal assembly during handling.
    • Keep the accelerator pedal assembly away from water.

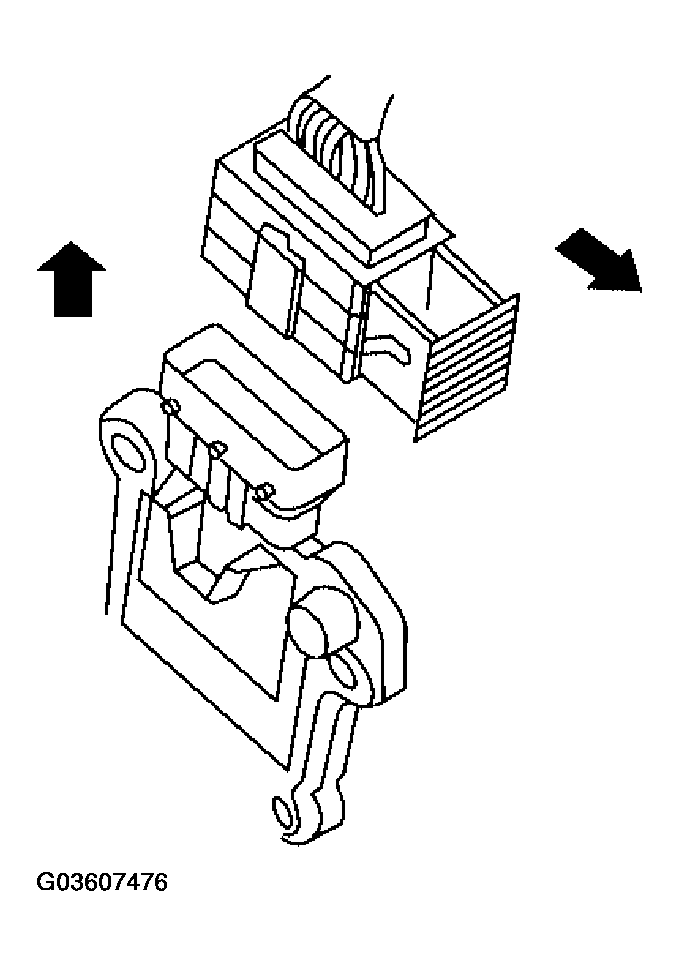

    Fig 1: Unlocking Connector From Accelerator Pedal Position Sensor
    G03607476Courtesy of NISSAN MOTOR CO., U.S.A.
