Read Configuration Procedure

WARNING: This page is about a different car, the 2005 Nissan Frontier. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.

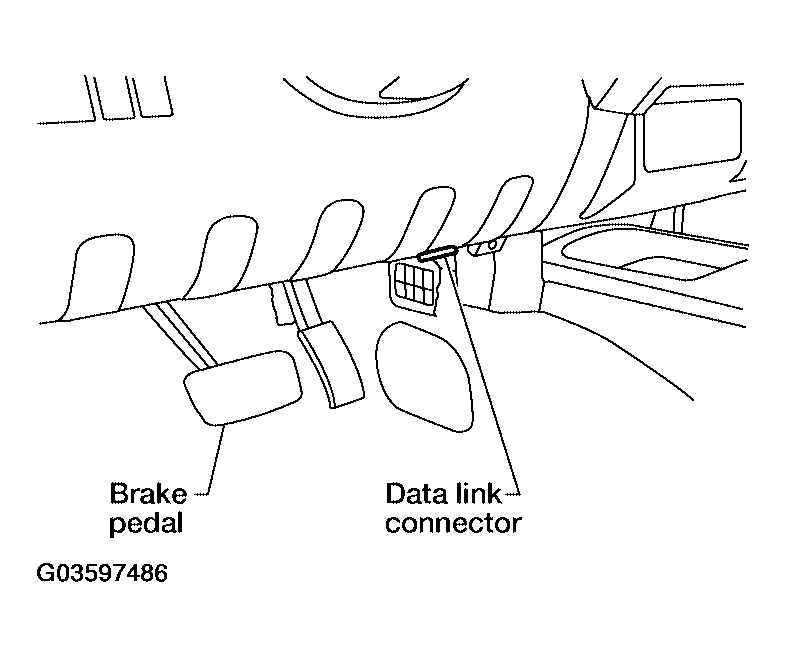

    Fig 1: Identifying Data Link Connector
    G03597486Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".

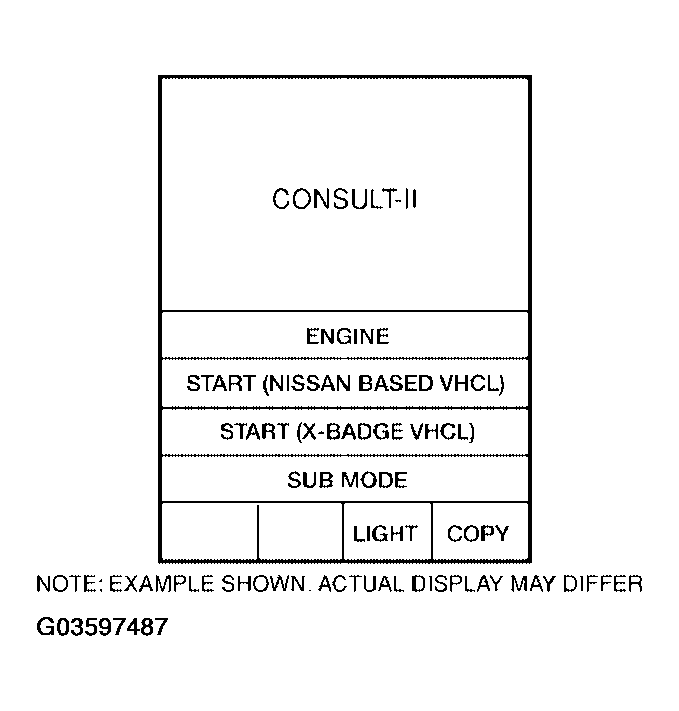

    Fig 2: CONSULT-II Display
    G03597487Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT ITEM" screen. If "BCM" is not indicated, go to GENERAL INFORMATION to check CONSULT II data link connector (DLC) circuit. Refer to "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

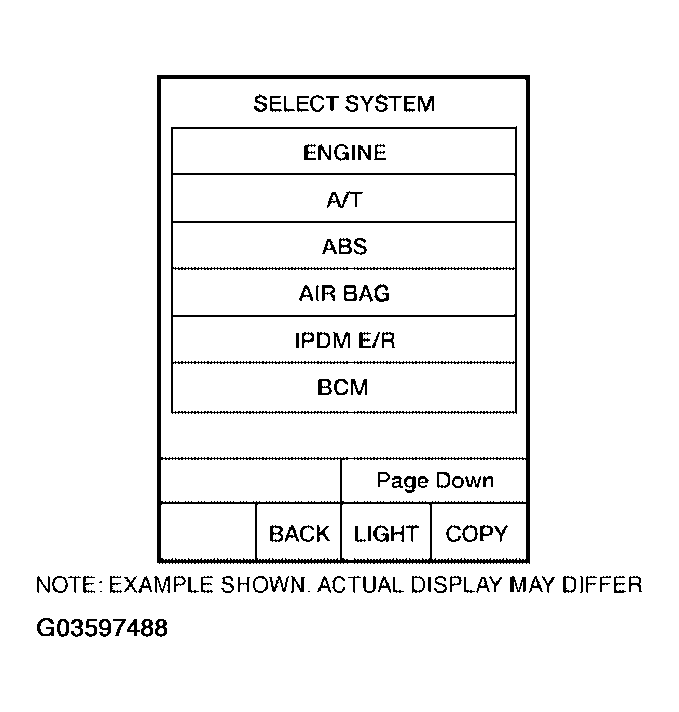

    Fig 3: CONSULT-II Display - Select Item
    G03597488Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.

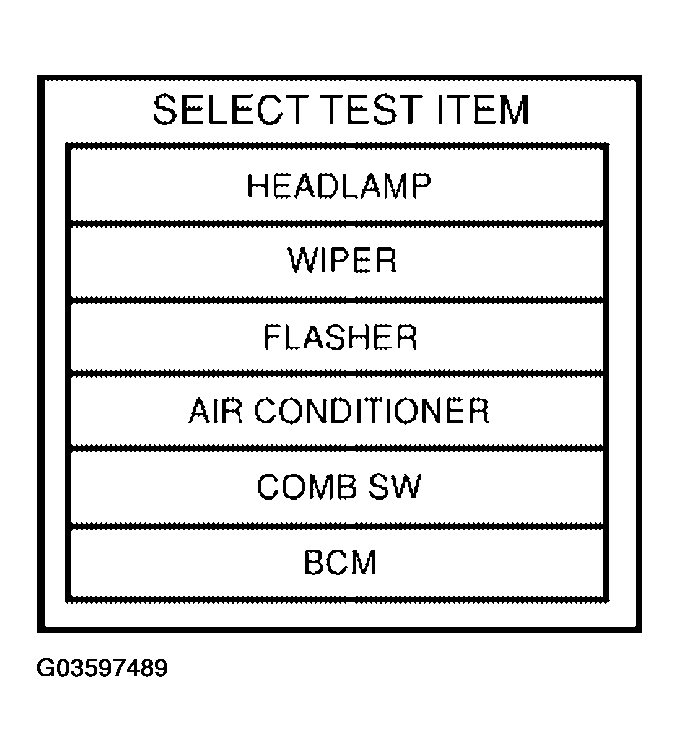

    Fig 4: CONSULT-II Display - Select Test Item
    G03597489Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.

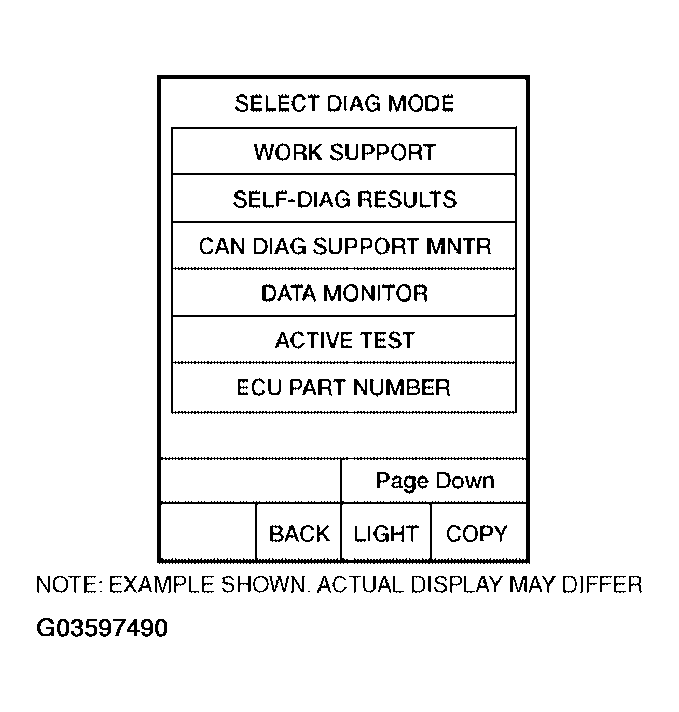

    Fig 5: CONSULT-II Display - Select Diag Mode (1 Of 2)
    G03597490Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "R51/D40/N51" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model on IDENTIFICATION PLATE. Refer to "MODEL VARIATION " .

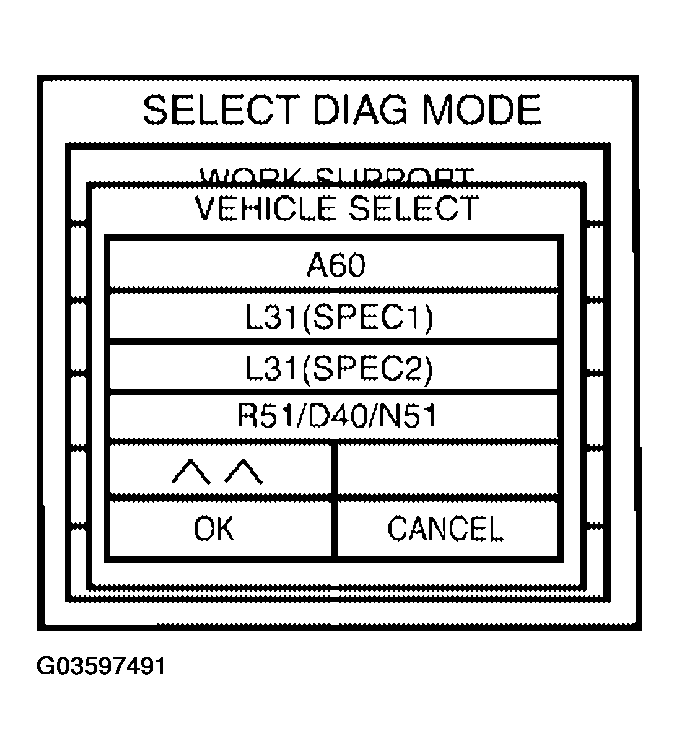

    Fig 6: CONSULT-II Display - Select Diag Mode (2 Of 2)
    G03597491Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.

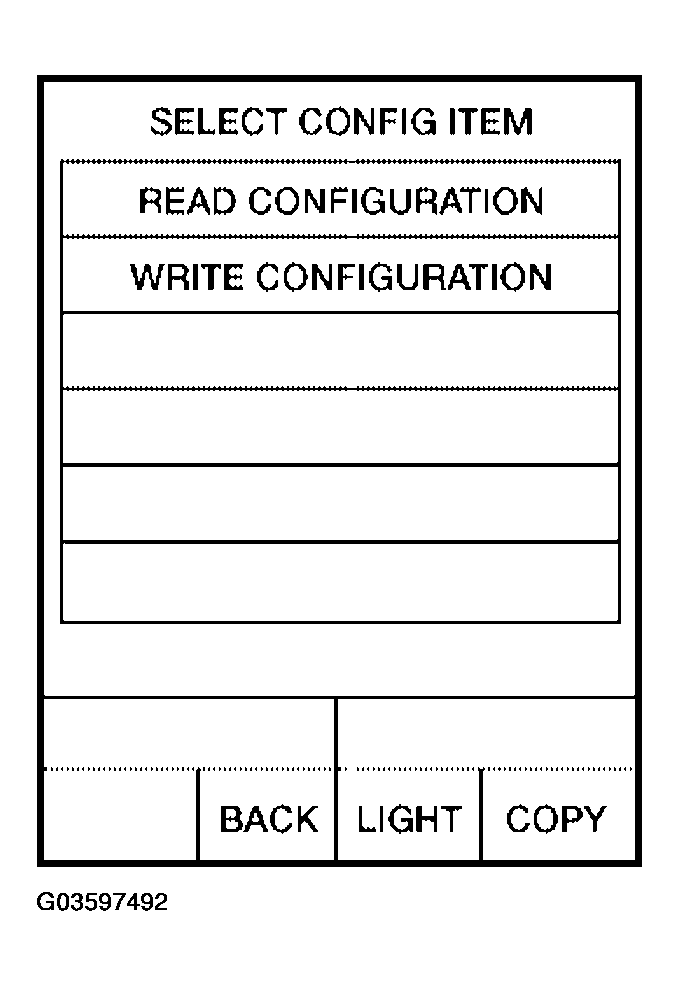

    Fig 7: CONSULT-II Display - Select Config Item
    G03597492Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to "WRITE CONFIGURATION PROCEDURE ".
    Fig 8: CONSULT-II Display - Write Configuration Procedure
    G03597493Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.

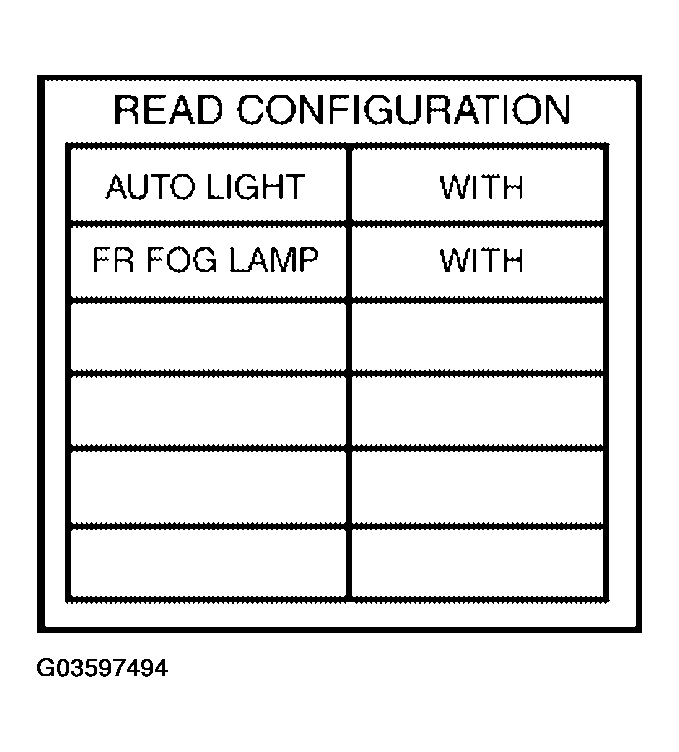

    Fig 9: CONSULT-II Display - Read Configuration
    G03597494Courtesy of NISSAN MOTOR CO., U.S.A.
