Accelerator Control System: Components

WARNING: This page is about a different car, the 2006 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

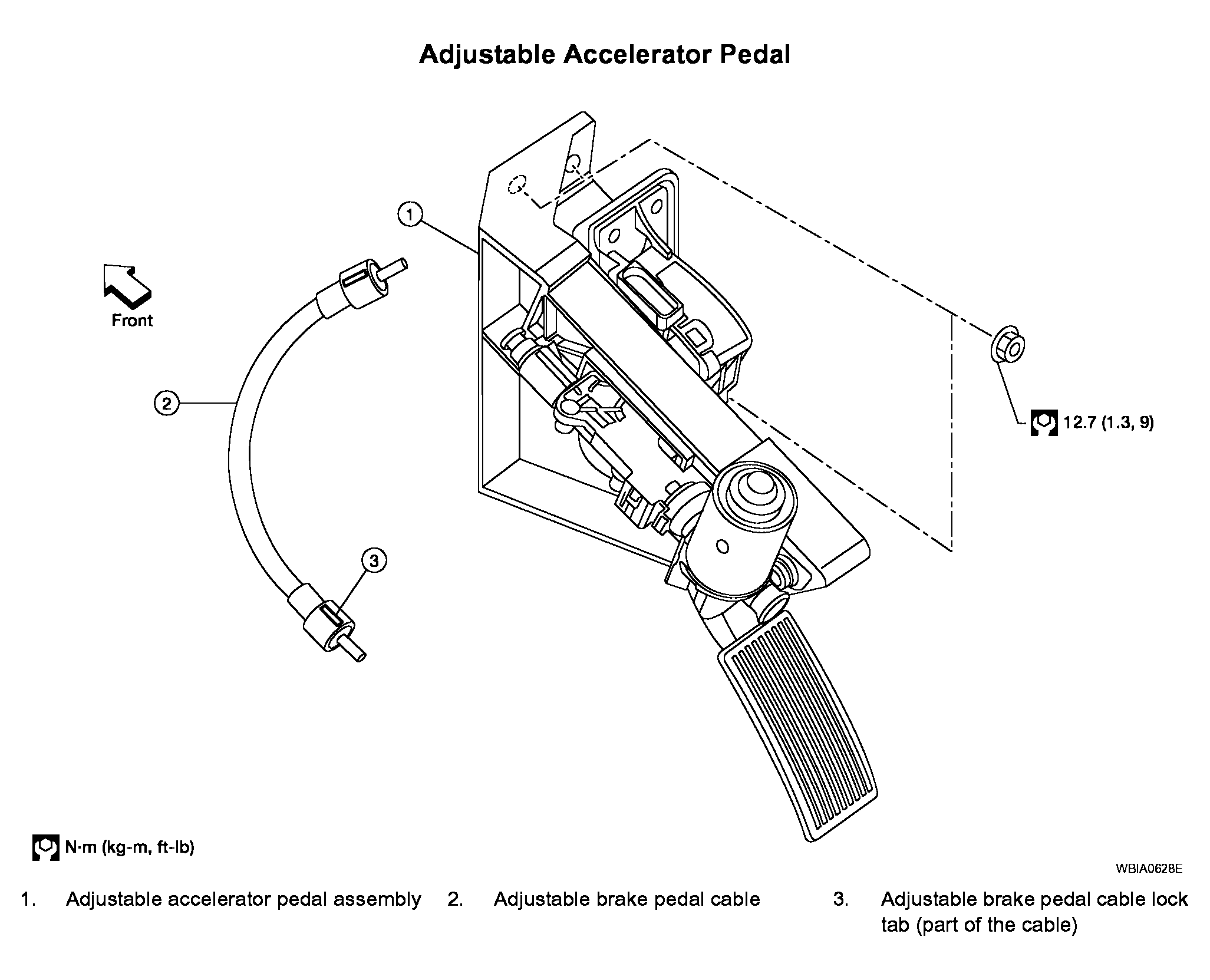

Fig 1: Adjustable Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

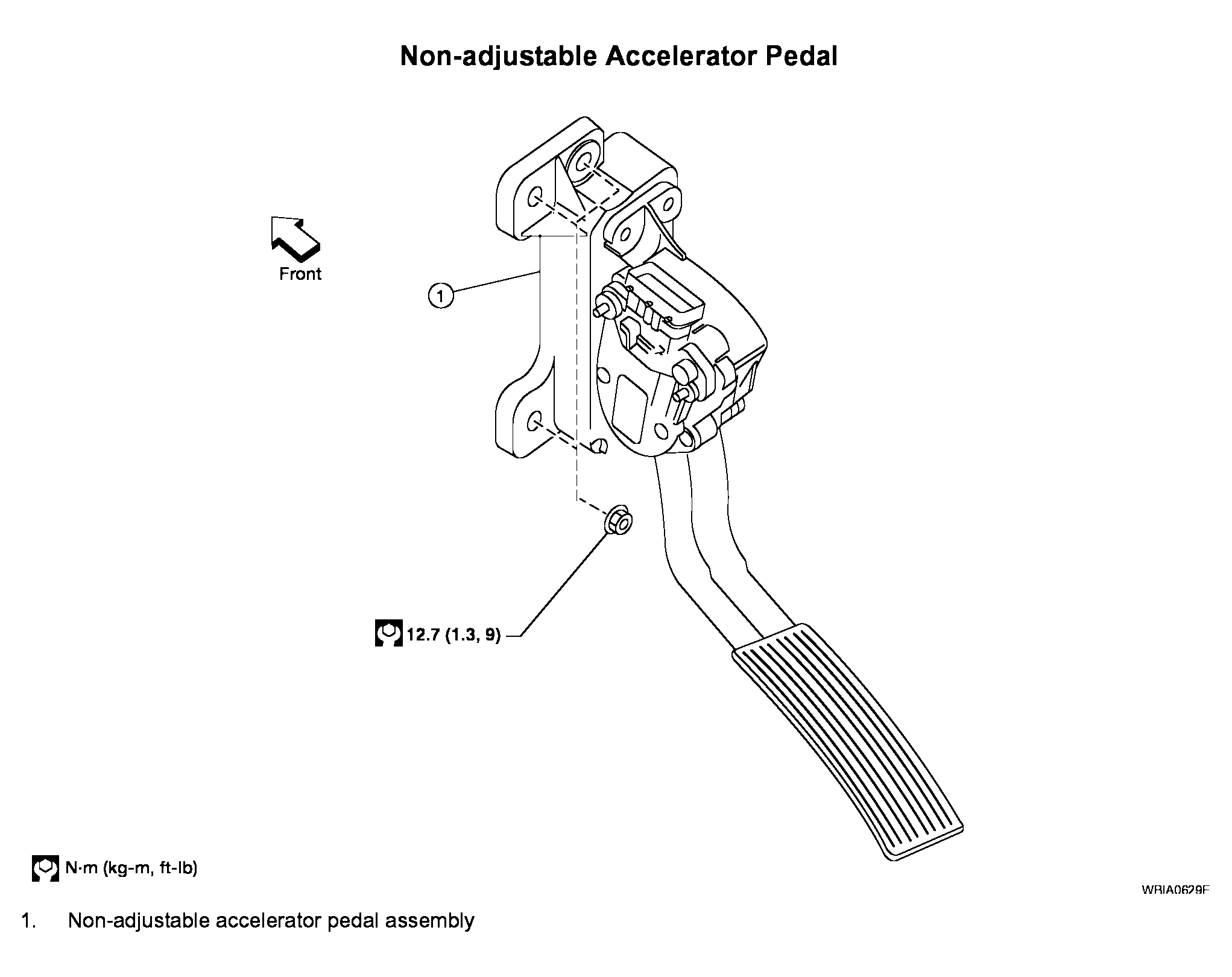

Fig 2: Non Adjustable Accelerator Pedal Replacement Components With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Before removal and installation, the adjustable accelerator and brake pedals must be in the frontmost position, if equipped. This is to align the base position of the accelerator and brake pedals.
Do not disassemble the accelerator pedal assembly.
Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
Do not disassemble the accelerator pedal adjusting mechanism.
Avoid damage from dropping the accelerator pedal assembly during handling.
Keep the accelerator pedal assembly away from water.
