KEYFOB Battery & Function Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

NOTE: For battery removal, see KEY FOB BATTERY REPLACEMENT .

NOTE: For symptom chart, see Figure and for ID entry code procedure, see ID CODE ENTRY PROCEDURE .

For keyfob battery and function test, see Fig 1 and Fig 2 .

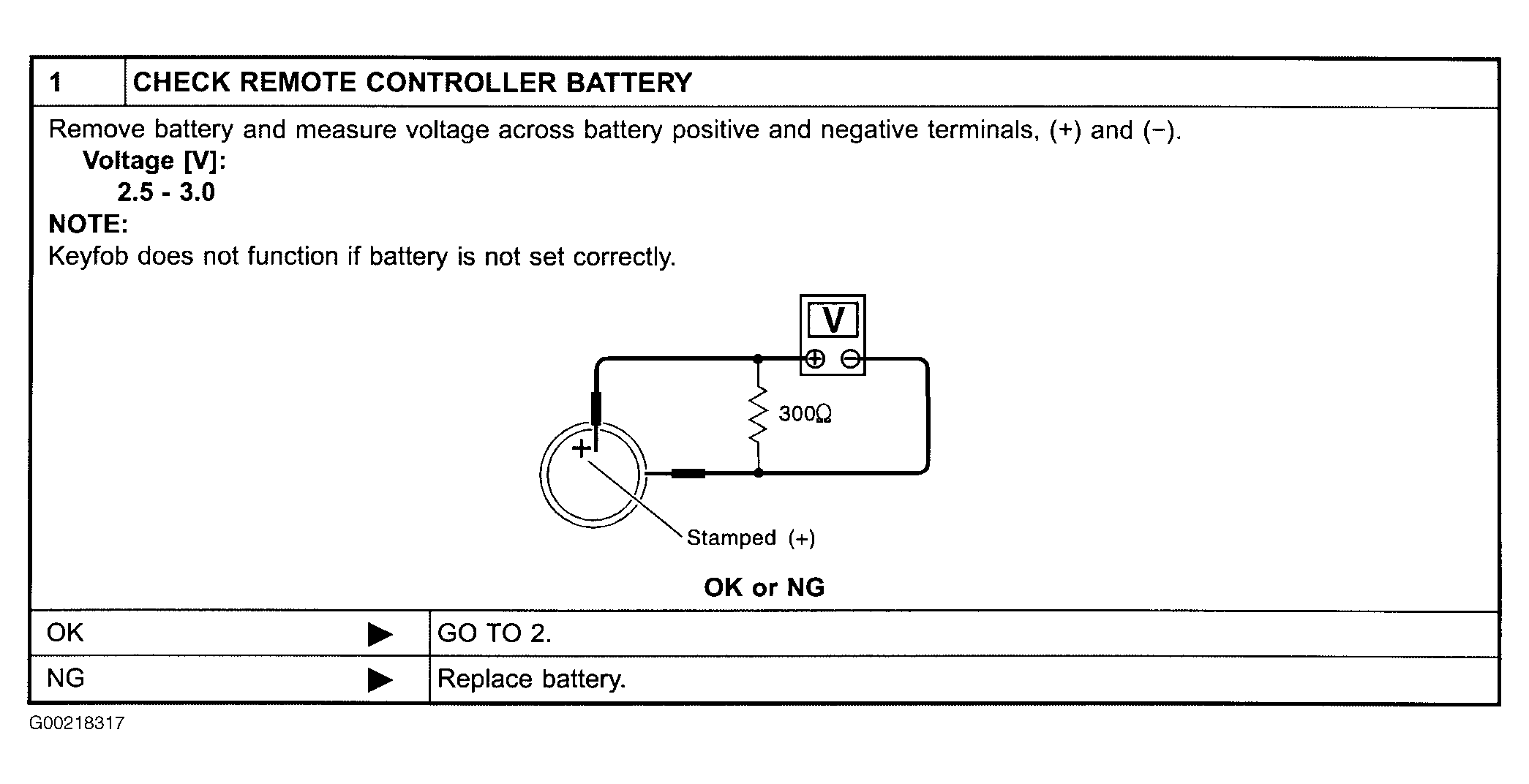

Fig 1: Identifying Keyfob Battery & Function Test, Step 1

Courtesy of NISSAN MOTOR CO., U.S.A.

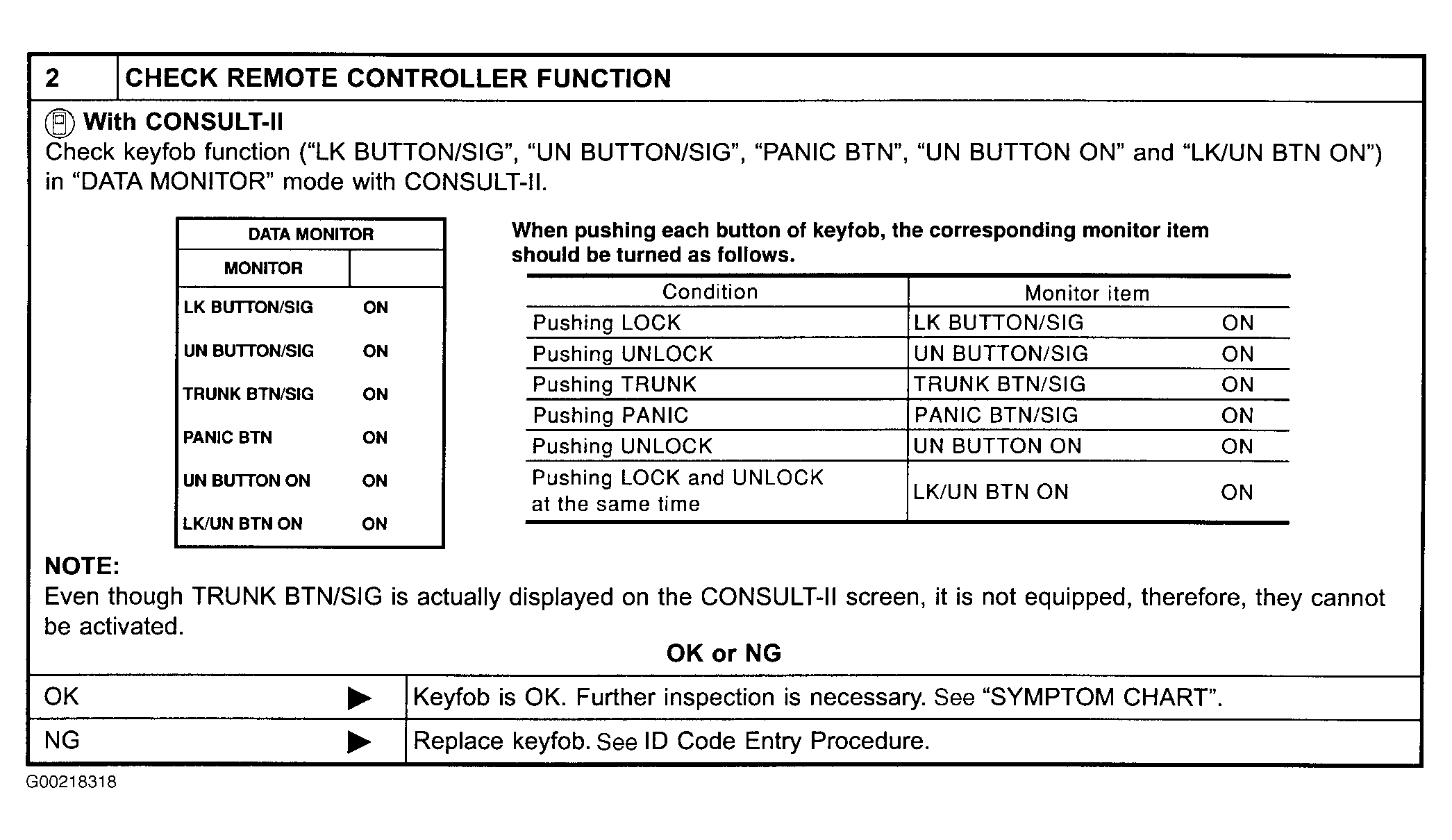

Fig 2: Identifying Keyfob Battery & Function Test, Step 2

Courtesy of NISSAN MOTOR CO., U.S.A.
