Left Door Lock/Unlock Switch Test

WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: For wiring diagrams, see WIRING DIAGRAMS .

For left door lock/unlock switch test, see Fig 1 .

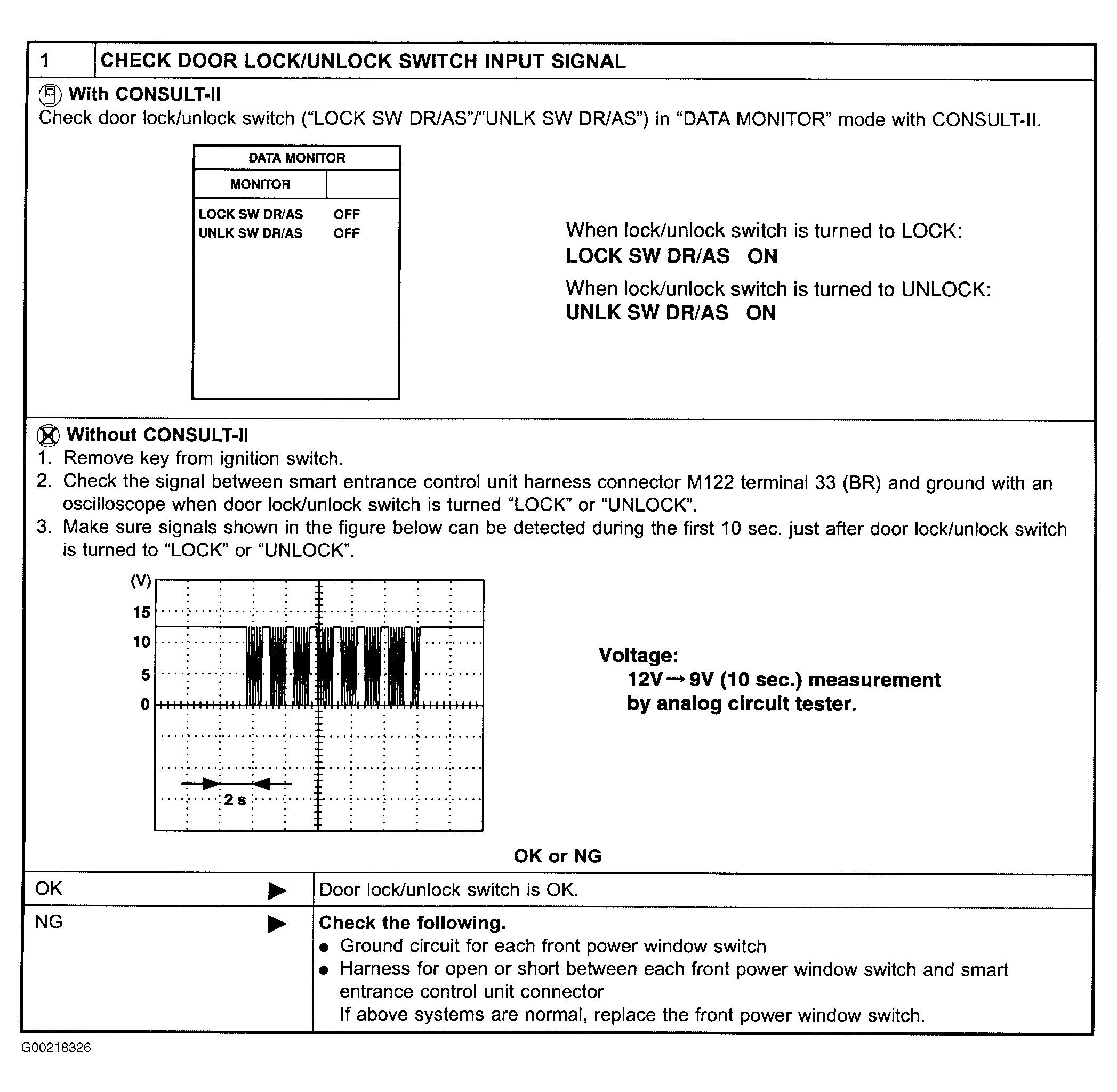

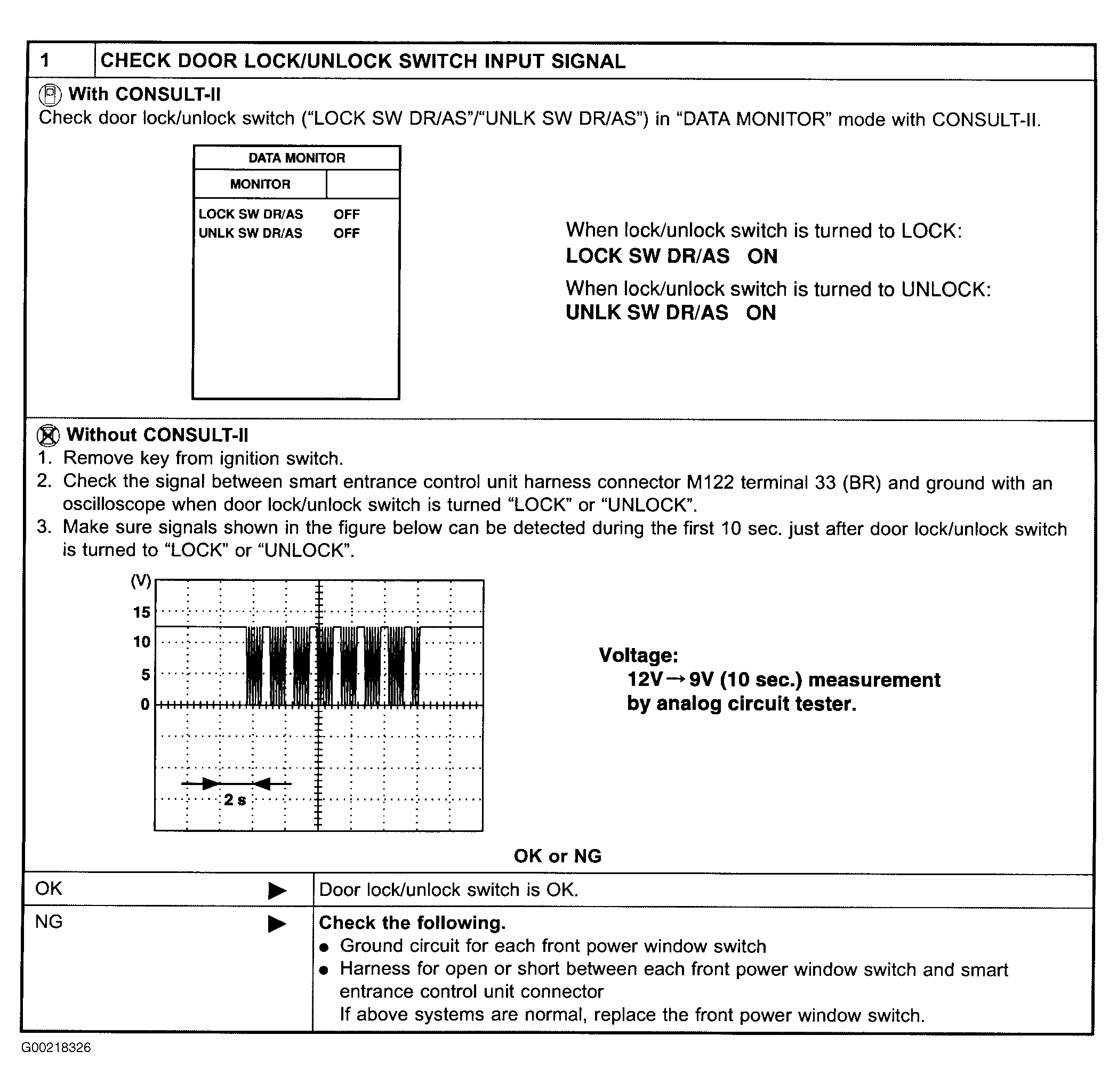

Fig 1: Identifying Left Door Lock/Unlock Switch Test

Courtesy of NISSAN MOTOR CO., U.S.A.
