Symptom Chart
WARNING: This page is about a different car, the 2002 Nissan Pathfinder. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
For wiring diagrams, see WIRING DIAGRAMS
.
NOTE:
For power door lock system inspection, see POWER DOOR LOCKS - PATHFINDER
article.
NOTE:
For ID code entry procedure, see ID CODE ENTRY PROCEDURE
.
NOTE:
For preliminary check of vehicle security system, see PRELIMINARY CHECK
in ANTI-THEFT SYSTEMS - PATHFINDER article.
NOTE:
For keyfob battery and function check, see KEYFOB BATTERY & FUNCTION TEST
, for power supply and ground circuit check, see POWER SUPPLY & GROUND CIRCUIT TEST
, for door switch check, see DOOR SWITCH TEST
, for key switch (insert) check, see KEY SWITCH (INSERT) TEST
, for left door lock/unlock switch check, see LEFT DOOR LOCK/UNLOCK SWITCH TEST
, for hazard reminder check, see HAZARD REMINDER TEST
, for horn reminder check, see HORN REMINDER TEST
, for changing hazard and horn reminder mode, see CHANGING HAZARD & HORN REMINDER MODE
, and for interior lamp operation check, see INTERIOR LAMP OPERATION TEST

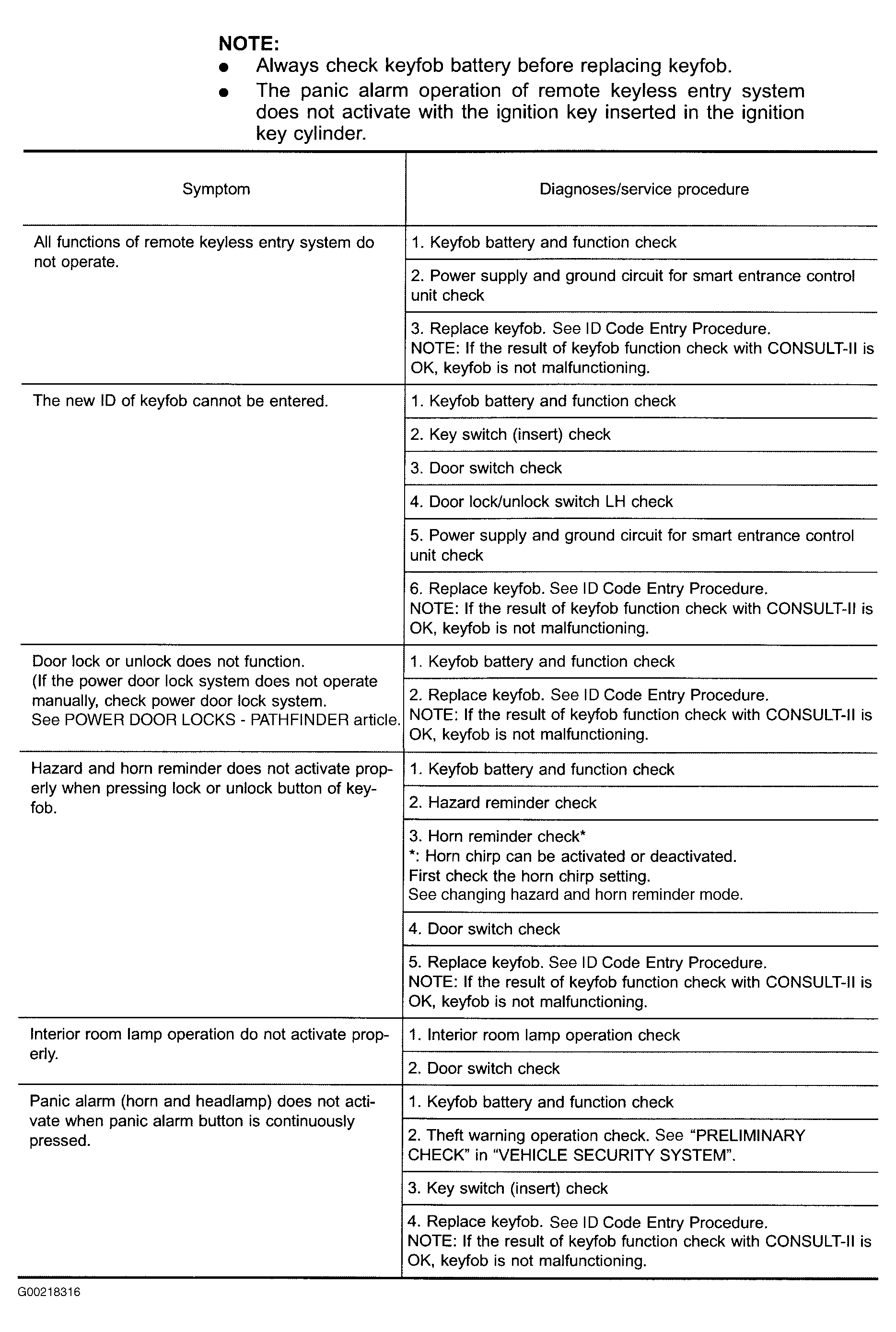

For symptom chart, see Fig 1 .
