Removal and Installation: Notes

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.

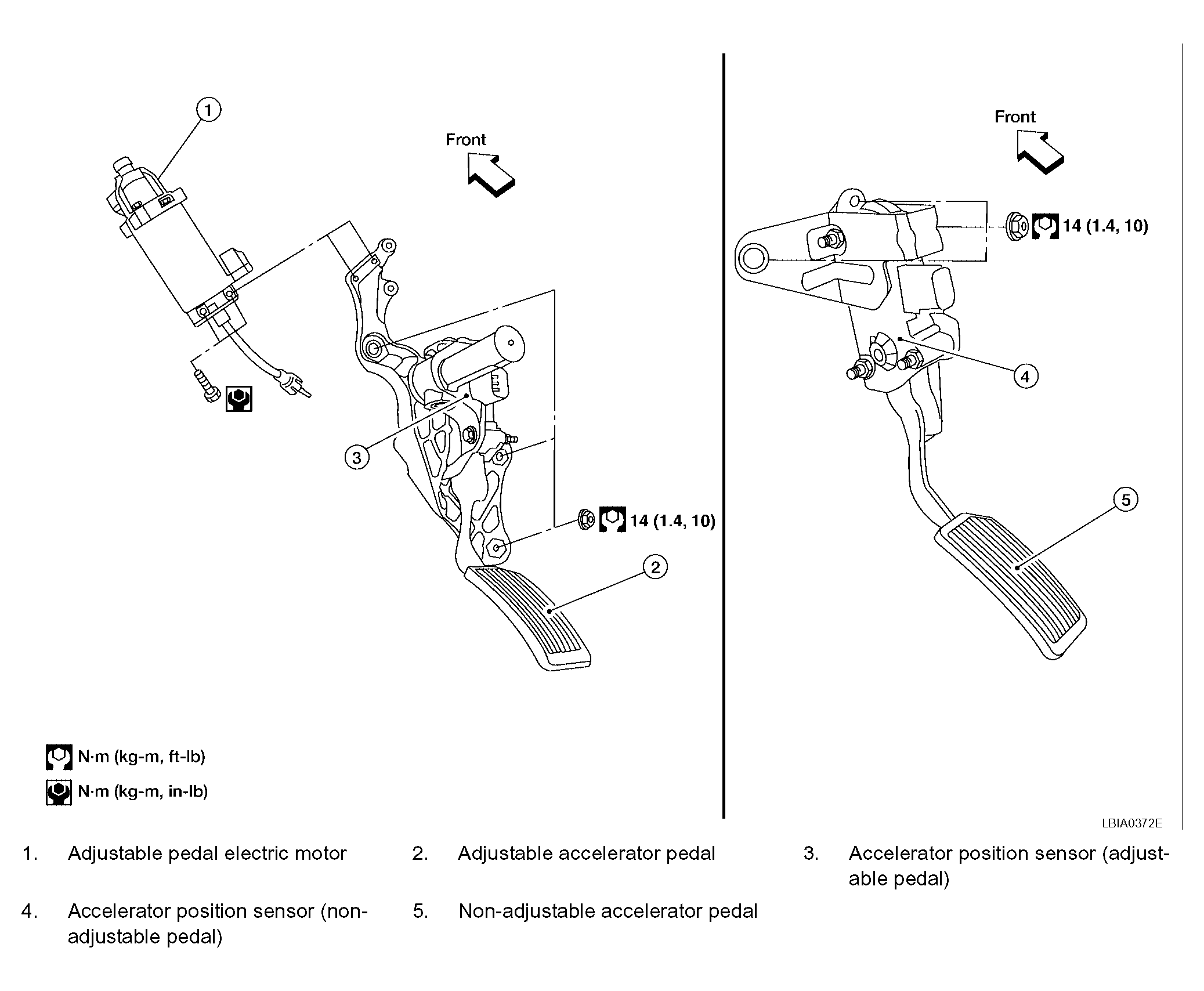

Fig 1: Removing/Installing Adjustable And Non-Adjustable Pedal With Torque Specifications

Courtesy of NISSAN MOTOR CO., U.S.A.

CAUTION:

Before removal and installation the accelerator and brake pedals must be in the front most position. This is to align the base position of the accelerator and brake pedals (adjustable type only).
Do not disassemble the accelerator pedal assembly.
Do not remove the accelerator pedal position sensor from the accelerator pedal bracket.
Do not disassemble the accelerator pedal adjusting mechanism (adjustable type only).
Avoid damage from dropping the accelerator pedal assembly during handling.
Keep the accelerator pedal assembly away from water.
