Read Configuration Procedure

WARNING: This page is about a different car, the 2006 Nissan Quest. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: If CONSULT-II is used with no connection of CONSULT-II CONVERTER, malfunctions might be detected in self-diagnosis depending on control unit which carries out CAN communication.
  1. With ignition switch OFF, connect CONSULT-II and CONSULT-II CONVERTER to data link connector and turn ignition switch ON.
    Fig 1: Locating Data Link Connector
    G04135039Courtesy of NISSAN MOTOR CO., U.S.A.
  2. Touch "START (NISSAN BASED VHCL)".
    Fig 2: Consult-II Display Screen
    G04151184Courtesy of NISSAN MOTOR CO., U.S.A.
  3. Touch "BCM" on "SELECT SYSTEM" screen.

    If "BCM" is not indicated, go to , "CONSULT-II DATA LINK CONNECTOR (DLC) CIRCUIT ".

    Fig 3: Consult-II SELECT SYSTEM Display Screen
    G04083859Courtesy of NISSAN MOTOR CO., U.S.A.
  4. Touch "BCM" on "SELECT TEST ITEM" screen.
    Fig 4: Consult-II SELECT TEST ITEM Display Screen
    G04136565Courtesy of NISSAN MOTOR CO., U.S.A.
  5. Touch "CONFIGURATION" on "SELECT DIAG MODE" screen.
    Fig 5: Consult-II SELECT DIAG MODE Display Screen
    G04083861Courtesy of NISSAN MOTOR CO., U.S.A.
  6. Touch "V42" and "OK" on "VEHICLE SELECT" screen. For canceling, touch "CANCEL" on "VEHICLE SELECT" screen.
    NOTE: Confirm vehicle model. Refer to , "MODEL VARIATION " .

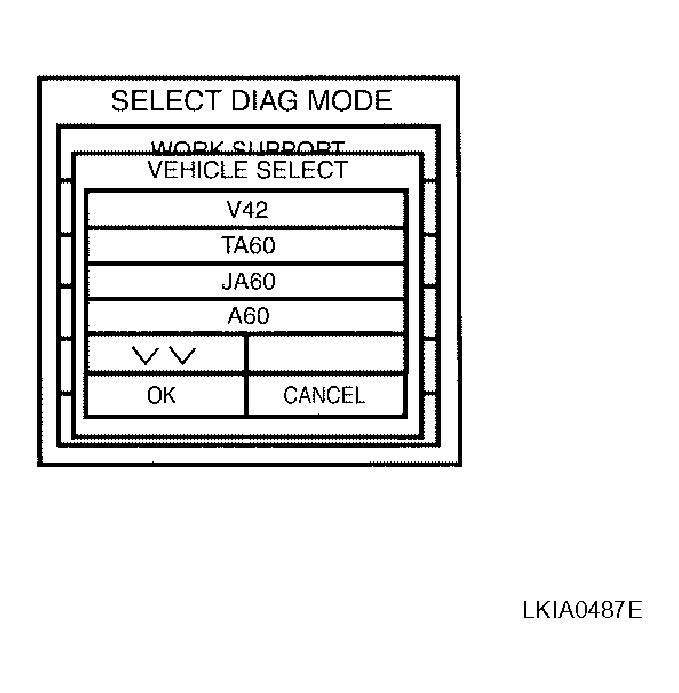

    Fig 6: CONSULT-II Display Screen - VEHICLE SELECT
    G04201220Courtesy of NISSAN MOTOR CO., U.S.A.
  7. Touch "READ CONFIGURATION" on "SELECT CONFIG ITEM" screen.

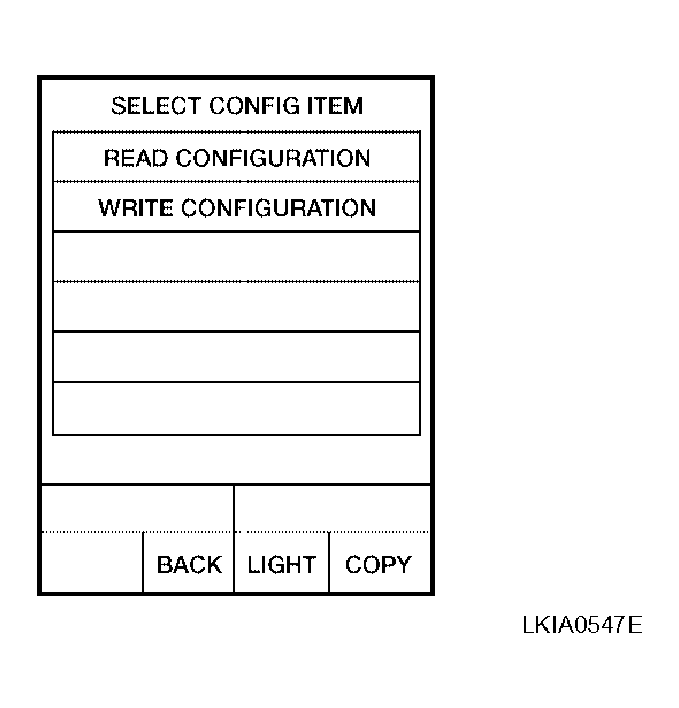

    Fig 7: CONSULT-II Display Screen - SELECT CONFIG ITEM
    G04201221Courtesy of NISSAN MOTOR CO., U.S.A.
  8. Configuration of current BCM is printed out automatically. A listing of manual setting items and auto setting items will be displayed. Auto setting items are preset and cannot be changed. Manual setting items can be set by using WRITE CONFIGURATION PROCEDURE. Refer to , "WRITE CONFIGURATION PROCEDURE ".

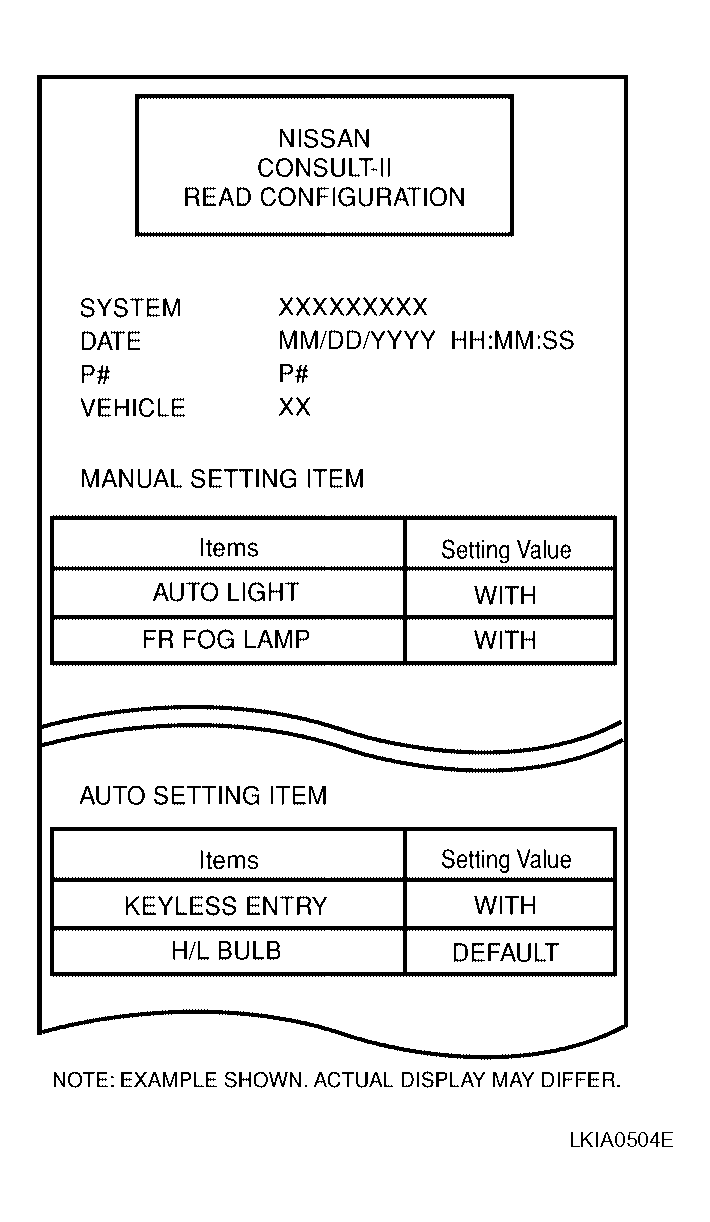

    Fig 8: CONSULT-II Display Screen - Manual Setting Items
    G04201222Courtesy of NISSAN MOTOR CO., U.S.A.
  9. Touch "BACK" on "READ CONFIGURATION" screen.

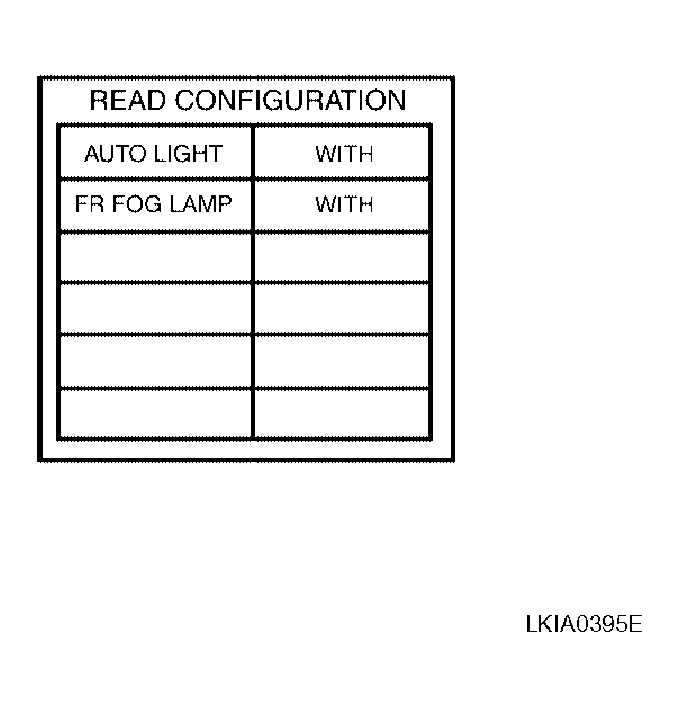

    Fig 9: CONSULT-II Display Screen - READ CONFIGURATION
    G04201223Courtesy of NISSAN MOTOR CO., U.S.A.
